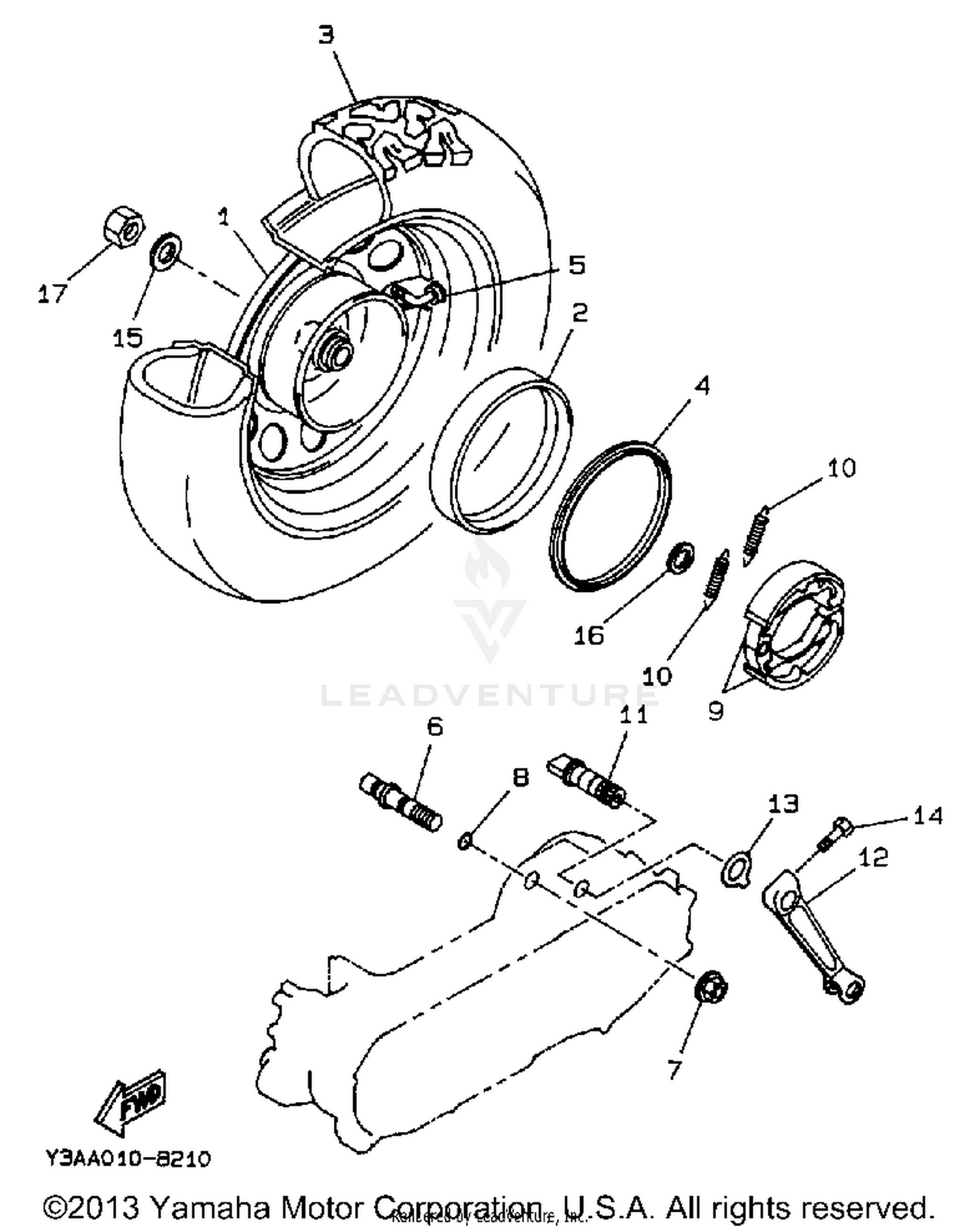

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR
3MX-25390-01-00
|
$189.99 | ||
|
Unavailable |
|||
|
#2
RING 2
3AA-25336-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#3
BS 130/90-10 TW38
94113-103T8-00
|
$58.15 | ||
|
Unavailable |
|||
|
#4
RING, WHEEL 1
3AA-2514A-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
VALVE, RIM
93900-00036-00
Superseded by 93900-00041-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, PIVOT
3AA-25326-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#7
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-07540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKESHOE SET-2PCS
36R-W2536-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-18288-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
3AA-25351-00-00
|
$27.40 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT
3AA-25355-00-00
Superseded by 3AA-25355-03-00
|
$32.99 | ||
|
Unavailable |
|||
|
#13
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-142M6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-14150-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
