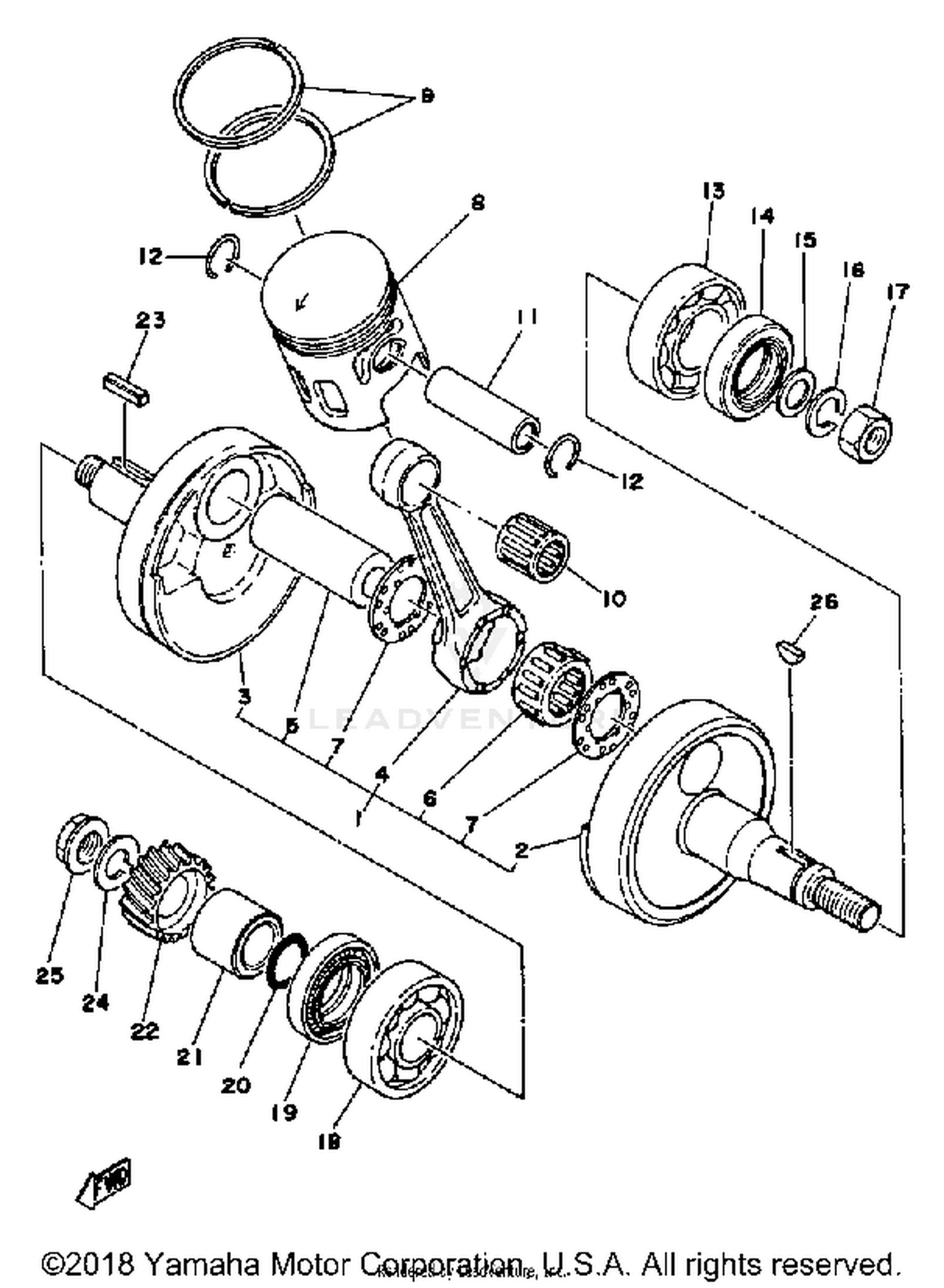

Crank Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
2N4-11400-00-00
|
$371.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1W1-11412-01-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1W1-11422-01-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING 1
25V-11651-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
3M5-11681-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDER.
93310-42277-00
Superseded by 93310-422C8-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL SHAPE
90209-22248-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD
2A6-11631-00-96
|
$127.99 | ||
|
Unavailable |
|||
|
#8
PISTON 1 O/S 0.25
2A6-11635-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#8
PISTON 3 O/S 0.75
2A6-11637-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON 4 O/S 1.00
2A6-11638-00-00
|
$153.99 | ||
|
Unavailable |
|||
|
#8
PISTON 2 O/S 0.50
2A6-11636-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET 1ST (1ST O/S) (2
2N4-11610-10-00
|
$45.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET 2ND (2ND O/S) (2
2N4-11610-20-00
|
$43.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET 3RD (3RD O/S) (2
2N4-11610-30-00
|
$45.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET 4TH (4TH O/S)
2N4-11610-40-00
|
$39.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET STD (STD) (2A6-1
2N4-11610-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, CYLINDRICAL
93310-216L2-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
137-11633-00-00
Superseded by 137-11633-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-17044-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (B6205C4)
93306-20529-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-12593-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEXAGON
90170-12347-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING (B6304C3)
93306-30421-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-180A6-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-20488-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR,PRI DRIVE
2A6-16111-00-00
Superseded by 4FU-16111-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, STRAIGHT
90282-05005-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
90204-12007-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
