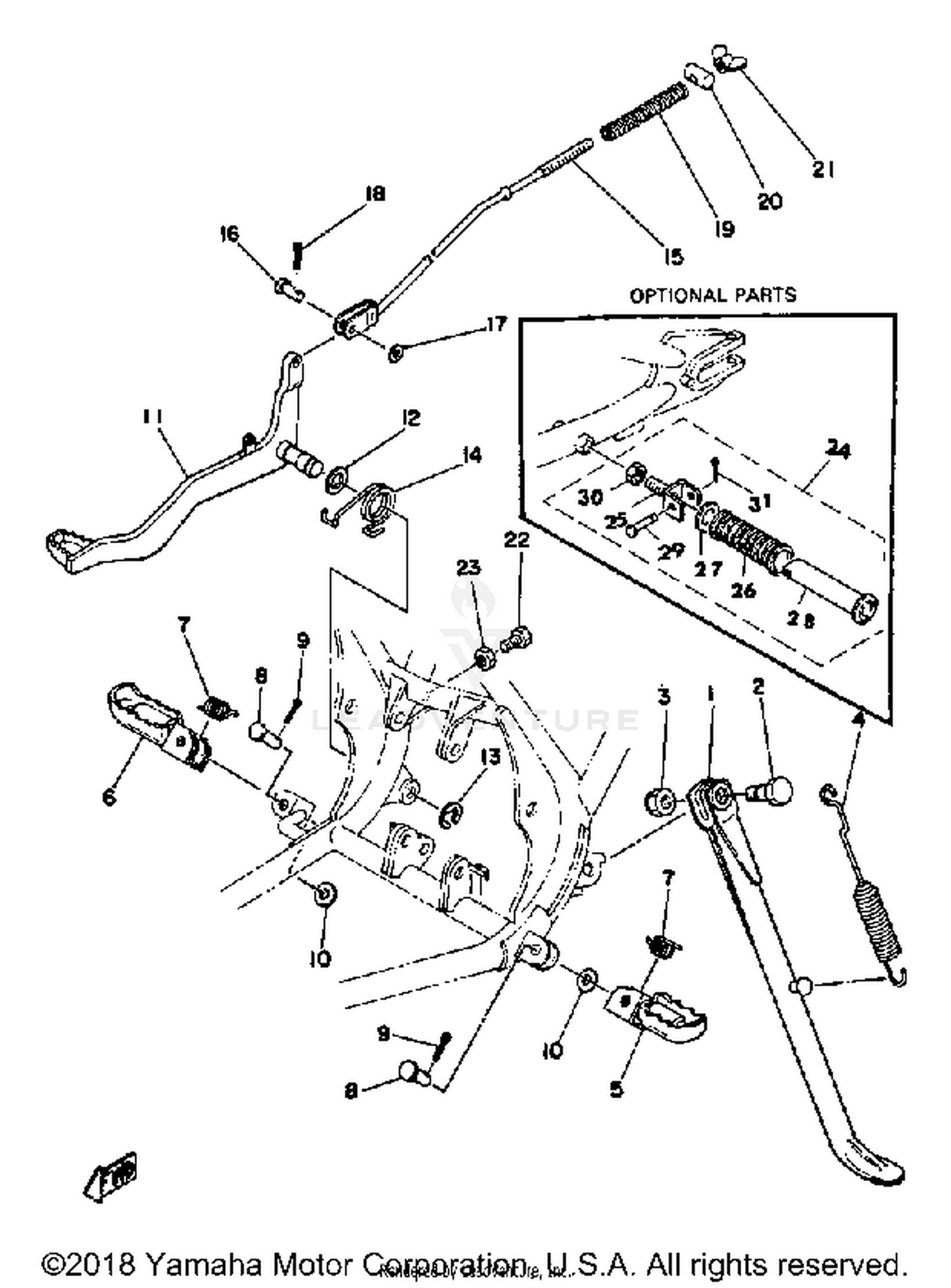

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
1W1-27311-10-00
|
$63.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST 1
22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CLEVIS
91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
PEDAL, BRAKE
2A6-27211-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-14212-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-32354-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, BRAKE
322-27231-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#16
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#19
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPECIAL SHAPE
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
REAR FOOTREST ASSEMBLY 1
120-27430-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET 1
120-27432-02-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
COVER, REAR FOOTREST
120-27433-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-20279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN
90240-06009-00
Superseded by 91701-06032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER (91402-16015)
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
