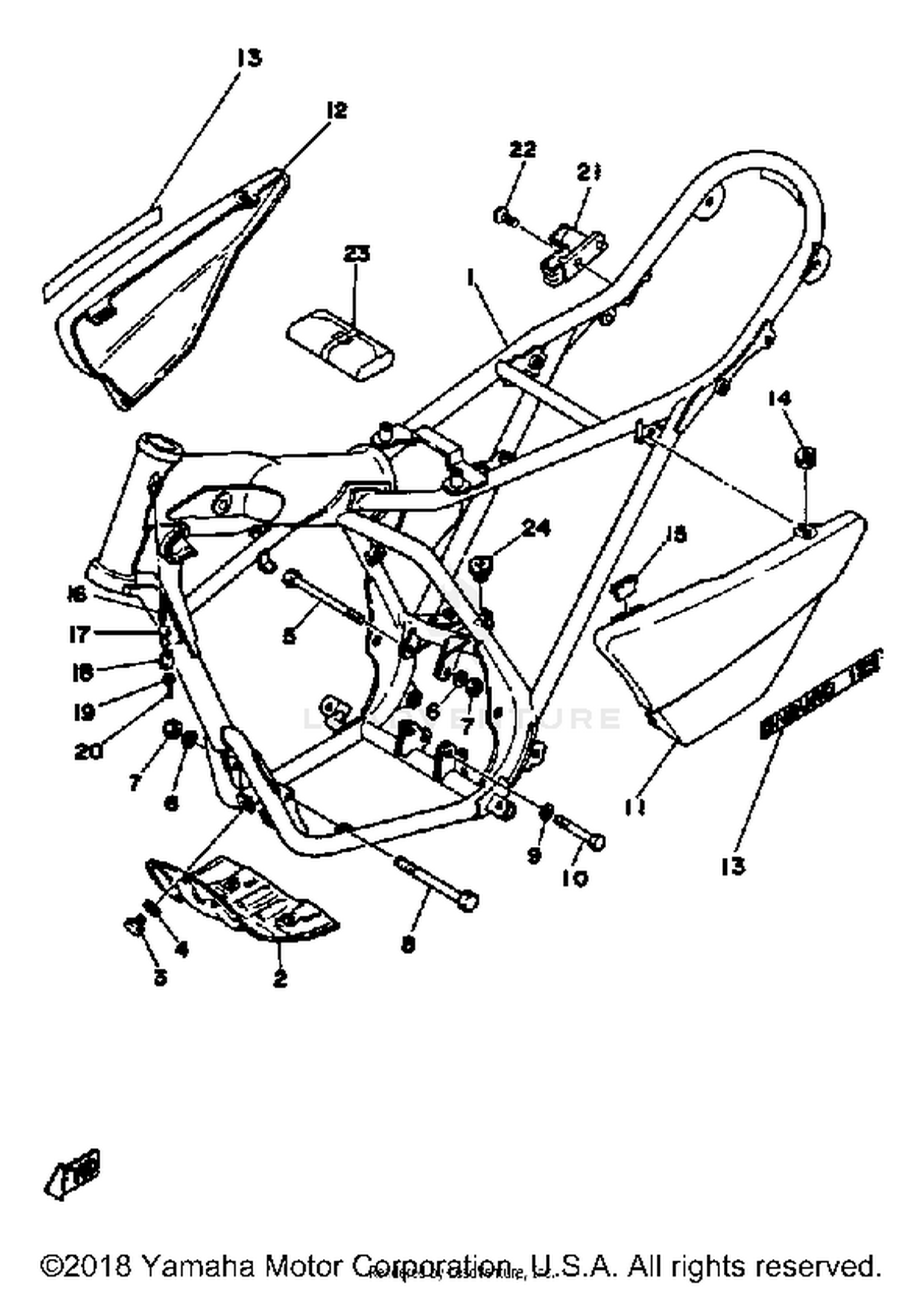

Frame Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2N4-21110-00-33
|
$322.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, ENGINE
2A6-21471-00-90
|
$22.99 | ||
|
Unavailable |
|||
|
#3
BOLT (661)
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SIDE 1
2N4-21711-01-1E
|
$52.99 | ||
|
Unavailable |
|||
|
#11
COVER, SIDE 1
2N4-21711-01-26
|
$80.99 | ||
|
Unavailable |
|||
|
#12
COVER, SIDE 2
2N4-21721-01-26
|
$77.99 | ||
|
Unavailable |
|||
|
#12
COVER, SIDE 2
2N4-21721-01-1E
|
$50.99 | ||
|
Unavailable |
|||
|
#13
EMBLEM 6
2N4-21786-10-00
|
$3.36 | ||
|
Unavailable |
|||
|
#13
EMBLEM 6
2N4-21786-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
2N4-21717-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, CONICAL
90502-09024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STEERING LOCK ASSY
2A6-23408-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, HANDLE LOCK
3DM-23484-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE (214-23488-00)
90206-04003-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
RIVET
90269-04003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HELMET HANGER ASSY
55E-21308-00-00
Superseded by 5H0-21308-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, OVAL HEAD
98603-06018-00
|
$0.35 | ||
|
Unavailable |
|||
|
#23
TOOL KIT
2A6-W2810-00-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-18171-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
