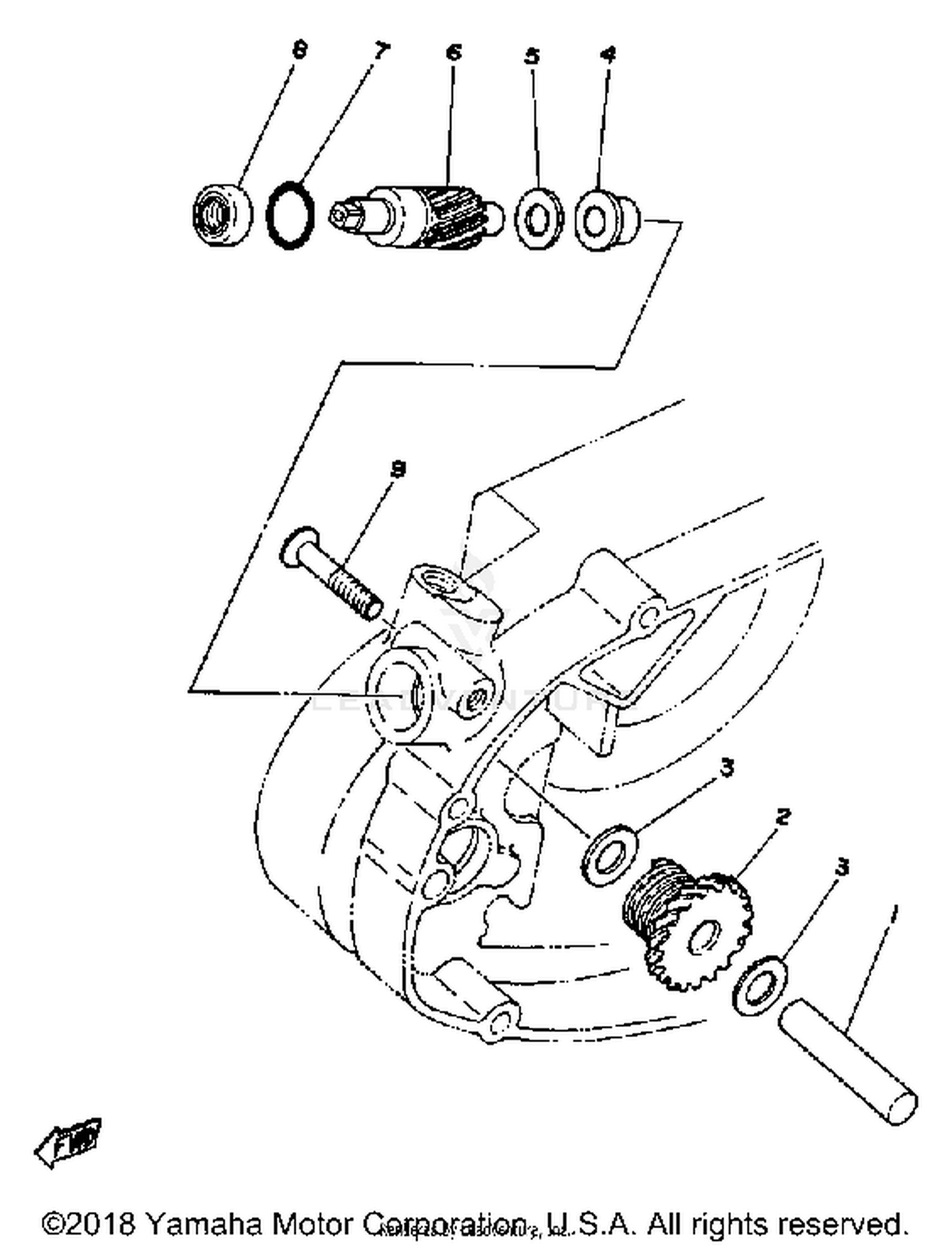

Tachometer Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, DRIVE GEAR
248-17861-00-00
|
$10.71 | ||
|
Unavailable |
|||
|
#2
GEAR, DRIVE
2A6-17831-00-00
Superseded by 2A6-17831-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE (10.5-18-1.6) (25
90201-10123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SOLID
90381-08002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
UNAVAILABLE IN PRICE BOOK (102-
90201-12163-10
|
|||
|
Unavailable |
|||
|
#6
GEAR, DRIVEN
2A6-17841-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-08307-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
98780-06030-00
Superseded by 98780-06530-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
