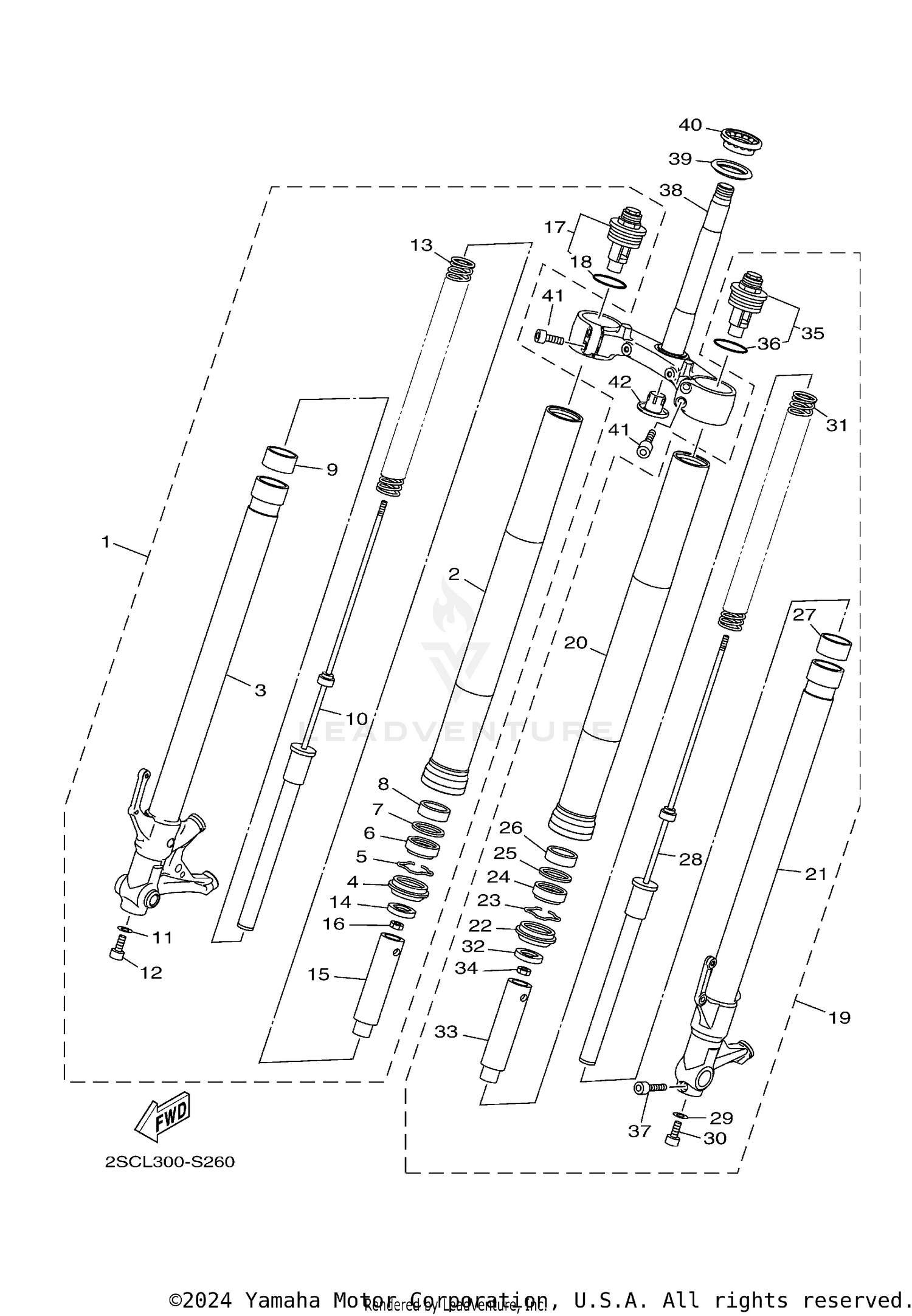

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (R.H)
2SC-23103-00-00
|
$497.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (L.H)
1RC-23126-11-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP.2
BS2-23120-00-00
Superseded by BS2-23120-01-00
|
$350.99 | ||
|
Unavailable |
|||
|
#4
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
METAL, SLIDE 1
1RC-23125-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
METAL, SLIDE
4FM-23171-40-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
2PP-23170-10-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
2PP-23141-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
1RC-23118-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
2PP-23111-10-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSY (L.H)
2SC-23102-00-00
|
$611.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, OUTER (L.H)
1RC-23126-11-00
|
$381.99 | ||
|
Unavailable |
|||
|
#21
INNER TUBE COMP.1
BS2-23110-00-00
Superseded by BS2-23110-01-00
|
$350.99 | ||
|
Unavailable |
|||
|
#22
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#23
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#25
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE 1
1RC-23125-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#27
METAL, SLIDE
4FM-23171-40-00
|
$22.99 | ||
|
Unavailable |
|||
|
#28
CYLINDER COMP., FRONT FORK
2PP-23170-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
2PP-23141-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#32
WASHER
5VY-12277-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#33
SPACER
1RC-23118-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#34
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
BOLT, CAP
2PP-23111-00-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
3XJ-23147-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
UNDER BRACKET COMP.
2PP-23340-00-00
|
$478.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, LOWER 1
4KM-23123-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FORK SEAL KIT
4EB-W003B-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
