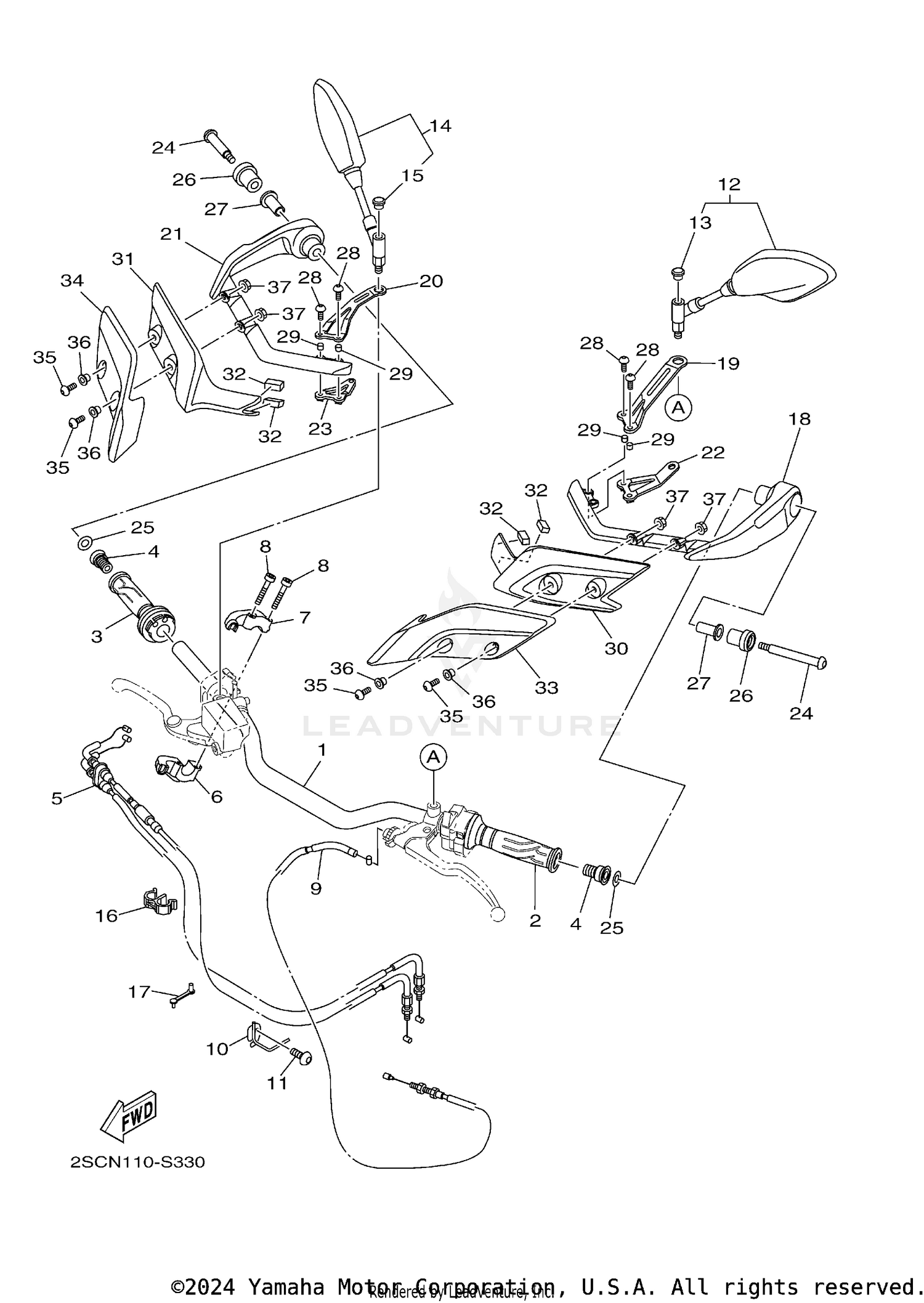

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2PP-26111-00-00
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
5JW-26241-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP ASSY
5JW-26240-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
END, GRIP
2PP-26246-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
THROTTLE CABLE ASSY
2PP-26302-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP GRIP
4KG-26281-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP LOWER
3XW-26282-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, CLUTCH
2PP-26335-02-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER
B90-23857-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
REAR VIEW MIRROR A
1RC-26280-10-00
Superseded by 1RC-26280-19-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
23P-26133-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR VIEW MIRROR ASSY (RIGHT)
1RC-26290-10-00
Superseded by 1RC-26290-19-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
23P-26133-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-07M20-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-05003-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, BRUSH 1
2PP-26141-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, HANDLE 1
2PP-26223-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, HANDLE 3
2PP-2622A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUARD, BRUSH 2
2PP-26142-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, HANDLE 2
2PP-26224-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, HANDLE 4
2PP-2622E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92014-08080-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
END, GRIP 2
2PP-2624B-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-08004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BUTTON HEAD
92014-05020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-05025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, HANDLE LEVER 1
2PP-26372-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, HANDLE LEVER 2
2PP-2637A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER 1
13S-28415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, HANDLE UPPER 1
2PP-26143-00-P0
Superseded by 2PP-26143-01-P0
|
$60.99 | ||
|
Unavailable |
|||
|
#33
COVER, HANDLE UPPER 1
2PP-26143-00-P6
Superseded by 2PP-26143-01-P6
|
$72.99 | ||
|
Unavailable |
|||
|
#34
COVER, HANDLE UPPER 2
2PP-26145-00-P6
Superseded by 2PP-26145-01-P6
|
$50.99 | ||
|
Unavailable |
|||
|
#34
COVER HANDLE UPPER 2
2PP-26145-00-P0
Superseded by 2PP-26145-01-P0
|
$60.99 | ||
|
Unavailable |
|||
|
#35
BOLT, BUTTON HEAD
92014-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
