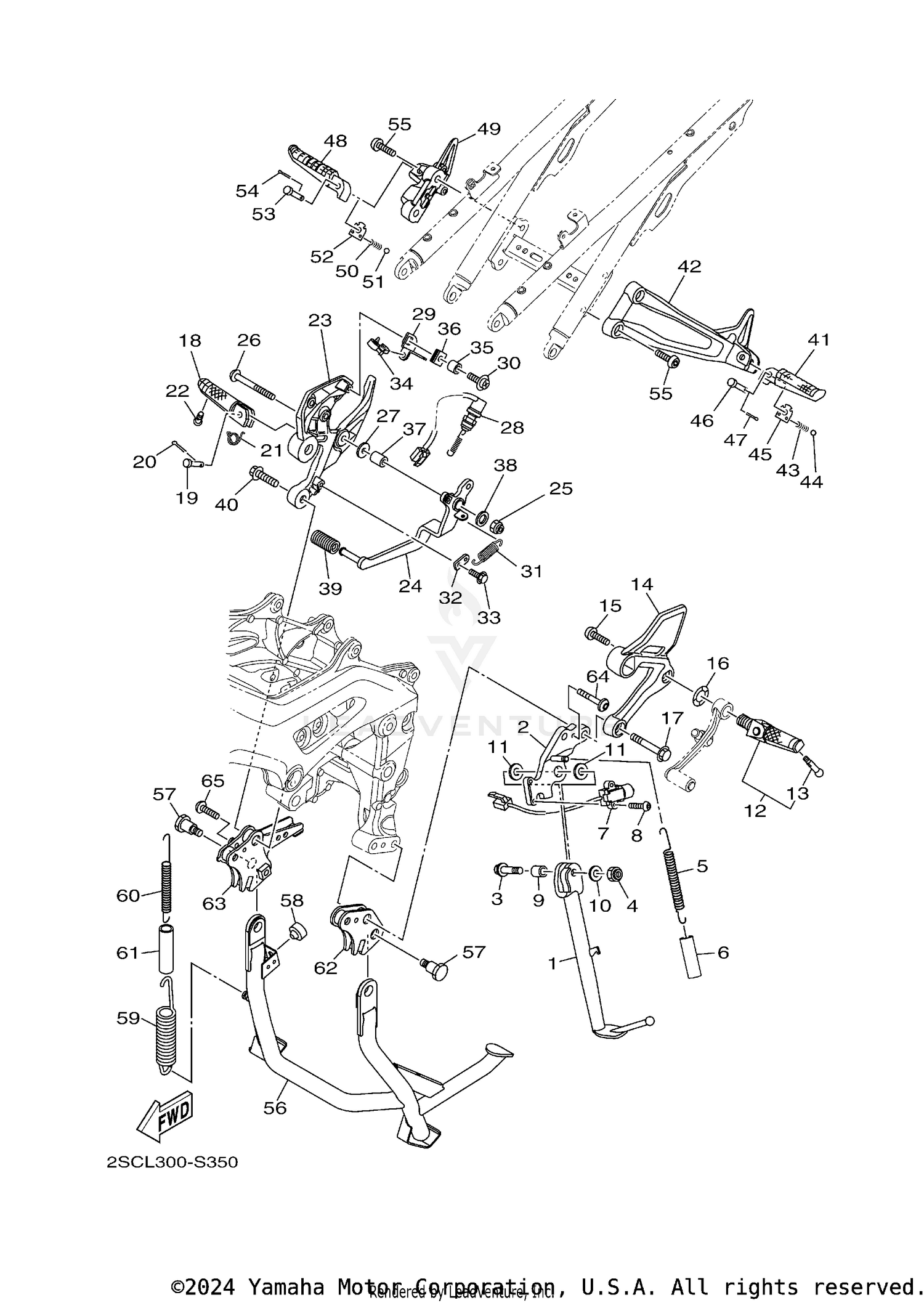

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
1RC-27311-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
1RC-27321-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-10188-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95612-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-20032-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L60)
90445-197J2-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH, SIDE STAND
1RC-82566-50-00
Superseded by 1RC-82566-51-00
|
$64.99 | ||
|
Unavailable |
|||
|
#8
BOLT, BUTTON HEAD
90111-05036-00
Superseded by 92014-05020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-10050-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-17018-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FOOTREST ASSY (LEFT)
2PP-27410-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-08233-00
Superseded by 90109-08235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 2
1RC-27442-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEX. SOCKET BUT
90111-10039-00
Superseded by 90111-10040-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,WASHER BASED
90105-10435-00
Superseded by 90105-10377-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST
3XV-27461-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-08233-00
Superseded by 90109-08235-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
BRACKET 3
BS2-27443-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PEDAL, BRAKE
2PP-27211-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-08005-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-08103-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOP SWITCH ASSY
B90-82530-00-00
Superseded by B90-82530-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#29
STAY, STOP SWITCH
1RC-2144G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, WITH WASHER
90159-06150-00
Superseded by 90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TENSION
90506-23008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 1
1RC-27432-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-15157-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-06M16-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET
90480-12607-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-08102-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-08048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
90105-10246-00
Superseded by 90105-10252-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOTREST, REAR 1
3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BRACKET 4
2PP-2741L-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#44
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#47
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#48
FOOTREST, REAR 2
3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET 5
2PP-2742L-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#51
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#54
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#55
BOLT
90111-08083-00
Superseded by 90111-08057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
STAND, MAIN
2PP-27111-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT
90109-10060-00
Superseded by 90109-10029-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
STOPPER, MAIN STAND
36C-27114-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
SPRING, MAIN STAND
2PP-27116-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SPRING, MAIN STAND
2PP-27116-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
HOSE
90445-19003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
BRACKET, MAIN STAND
2PP-27151-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET, MAIN STAND 2
2PP-27152-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT, BUTTON HEAD
92012-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#65
BOLT, BUTTON HEAD
92012-06030-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
