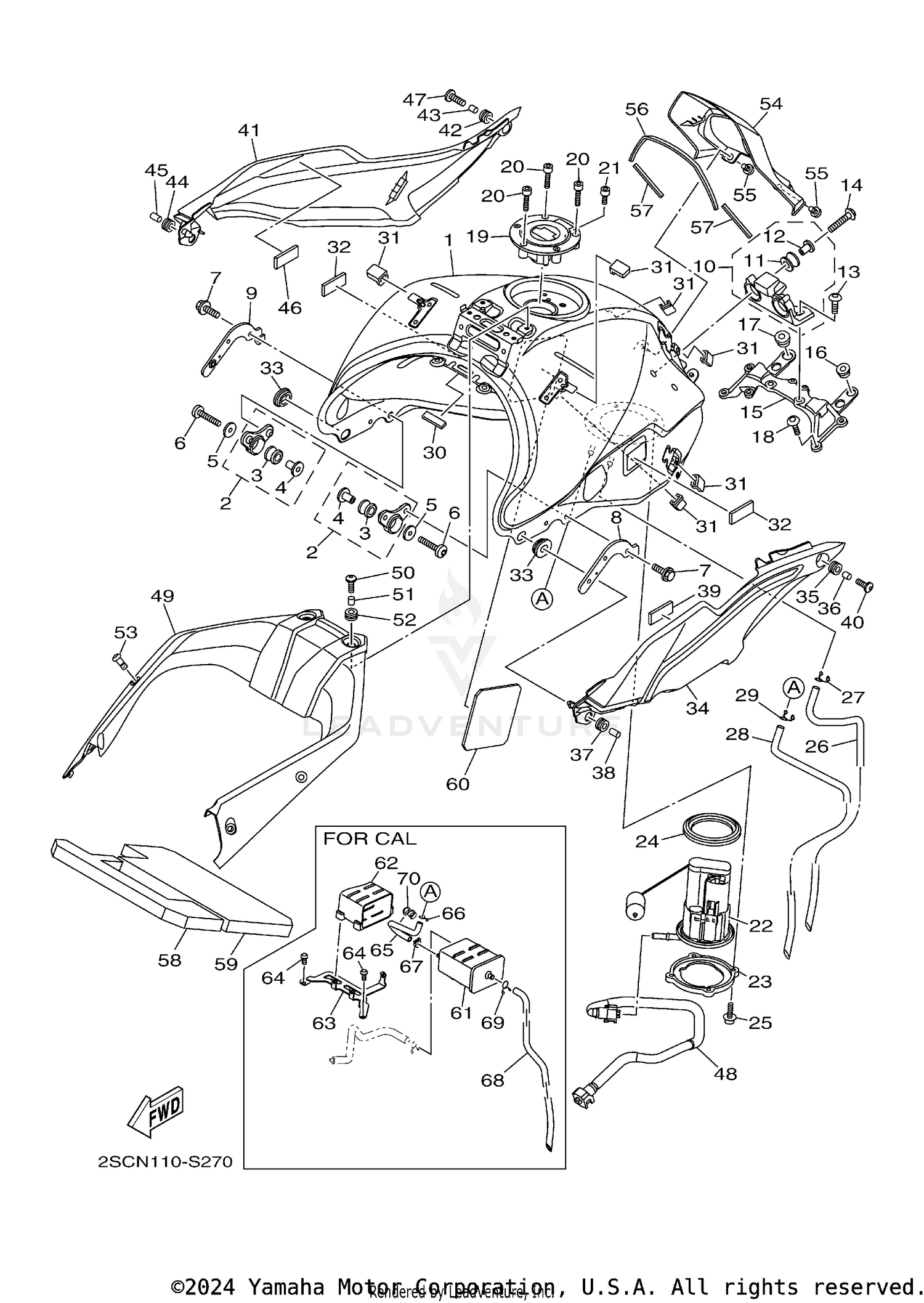

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2PP-YK241-00-P9
|
$753.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
2PP-YK241-00-PA
|
$707.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TANK BRACKET ASSY
23P-24104-01-00
Superseded by 23P-24104-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-18008-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06266-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92012-06035-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FITTING
2PP-2411F-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK TANK FITTING
2PP-2411L-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK BRACKET ASSY 2
2PP-24105-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
3D7-24339-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06136-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,0HEX. SOCKET BUTTON
90111-06136-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, TANK FITTING
2PP-2413Y-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-06020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP ASSY
39P-24602-10-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL PUMP COMP
1RC-13907-00-00
Superseded by 1RC-13907-10-00
|
$434.99 | ||
|
Unavailable |
|||
|
#23
BRACKET, FUEL PUMP
1RC-24491-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
1RC-24486-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE 5
1RC-24315-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 6
1RC-24316-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#30
MOLE 3
2S3-28347-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, SIDE COVER
5PW-2411J-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOOK, SIDE COVER 1
2PP-2411G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, SIDE 1
2PP-24129-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
90480-13018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-0611W-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-13018-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
COLLAR
90387-06026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOOK, SIDE COVER 1
2PP-2411G-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, SIDE 2
2PP-24139-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GROMMET
90480-13018-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
COLLAR
90387-0611W-00
|
$3.10 | ||
|
Unavailable |
|||
|
#44
GROMMET
90480-13018-00
|
$7.49 | ||
|
Unavailable |
|||
|
#45
COLLAR
90387-06026-00
|
$7.49 | ||
|
Unavailable |
|||
|
#46
HOOK, SIDE COVER 1
2PP-2411G-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$7.49 | ||
|
Unavailable |
|||
|
#48
PIPE, FUEL 1
1RC-13971-10-00
Superseded by 1RC-13971-11-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
COVER, TANK
2PP-241B1-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$7.49 | ||
|
Unavailable |
|||
|
#51
COLLAR
90387-0611W-00
|
$3.10 | ||
|
Unavailable |
|||
|
#52
GROMMET
90480-13018-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
HEAD
14B-28386-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PROTECTOR, FUEL TANK
2PP-24141-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
DAMPER, PLATE 1
2C0-2414H-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
DAMPER, PLATE 2
3P6-2414J-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
DAMPER, PLATE 1
2PP-2414H-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
DAMPER, PLATE 2
2PP-2414J-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
PROTECTOR, FUEL TANK
BS2-24141-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
CANISTER ASSY
2CR-24170-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
DAMPER, LOCATING 3
B90-24183-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET, CANISTOR
B90-2419F-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#65
PIPE 3
B90-24313-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#67
CLIP
90467-09026-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#68
PIPE 10
BS2-24321-00-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#69
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
CLAMP
90464-09M31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
