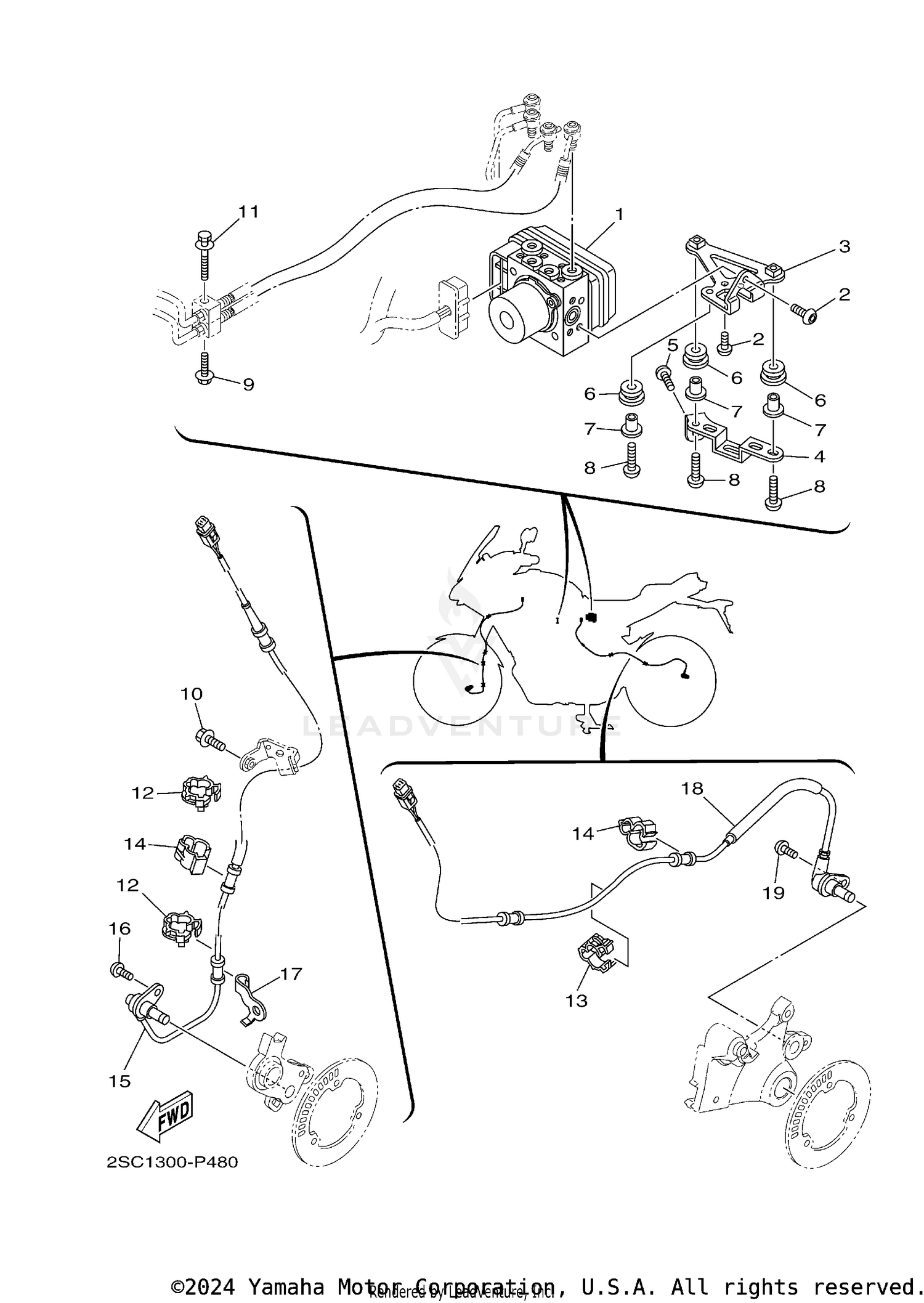

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HYDRAULIC UNIT ASSY
2SC-85930-09-00
Superseded by 2SC-85930-05-00
|
$996.99 | ||
|
Unavailable |
|||
|
#2
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, UNIT
2DR-85991-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET
2DR-85542-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Unavailable |
|||
|
#6
GROMMET
90480-13567-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06160-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92012-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06148-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-060A6-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06M55-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-14003-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-10233-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WHEEL SENSOR ASSY, FRONT
2DR-85970-00-00
Superseded by 2DR-85970-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92014-06014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, HOLDER 1
2DR-23318-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WHEEL SENSOR ASSY, R
2DR-85980-01-00
Superseded by 2DR-85980-02-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92014-06014-00
|
$3.55 | ||
|
Unavailable |
|||
