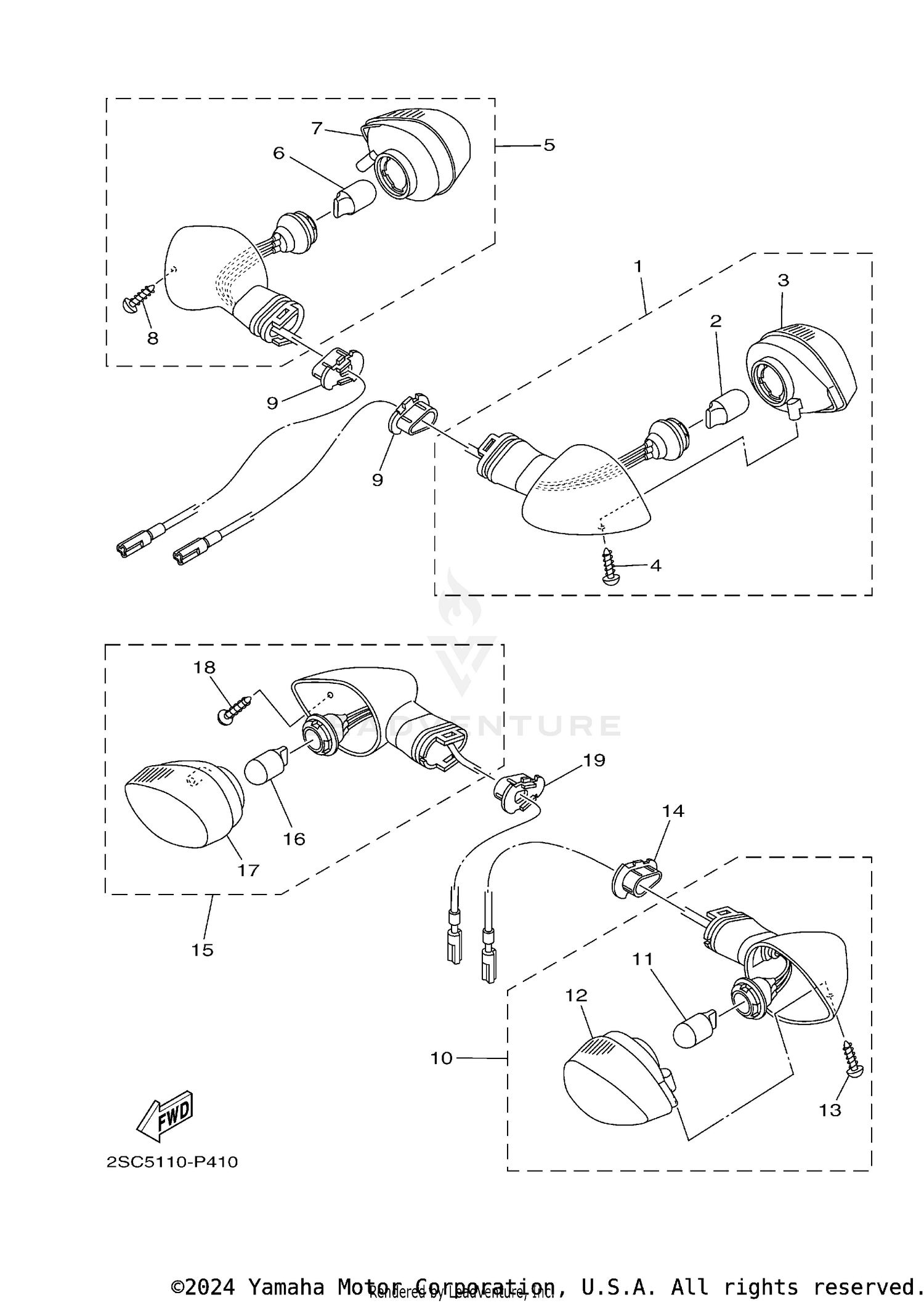

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FLASHER LIGHT ASSY 1
14B-83330-10-00
Superseded by 14B-83330-11-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-21/5W T20)
5PW-83331-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS COMP 2
5PW-8334A-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97707-04012-00
|
$0.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FLASHER LIGHT
14B-83340-10-00
Superseded by 14B-83340-11-00
|
$63.99 | ||
|
Unavailable |
|||
|
#6
BULB (12V-21/5W T20)
5PW-83331-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#7
LENS COMP 1
5PW-8333A-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
97707-04012-00
|
$0.10 | ||
|
Unavailable |
|||
|
#9
STAY, FLASHER 1
5PW-83318-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRONT FLASHER LIGH
32C-83310-00-00
Superseded by 32C-83310-02-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB, FLASHER (12V-21/5W T20)
5GJ-83331-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS COMP 1
5PW-8333A-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING
97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, FLASHER 1
5PW-83318-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
FRONT FLASHER LIGH
32C-83320-00-00
Superseded by 32C-83320-02-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB, FLASHER (12V-21/5W T20)
5GJ-83331-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#17
LENS COMP 2
5PW-8334A-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97707-40012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
STAY, FLASHER 1
5PW-83318-00-00
|
$7.49 | ||
|
Unavailable |
|||
