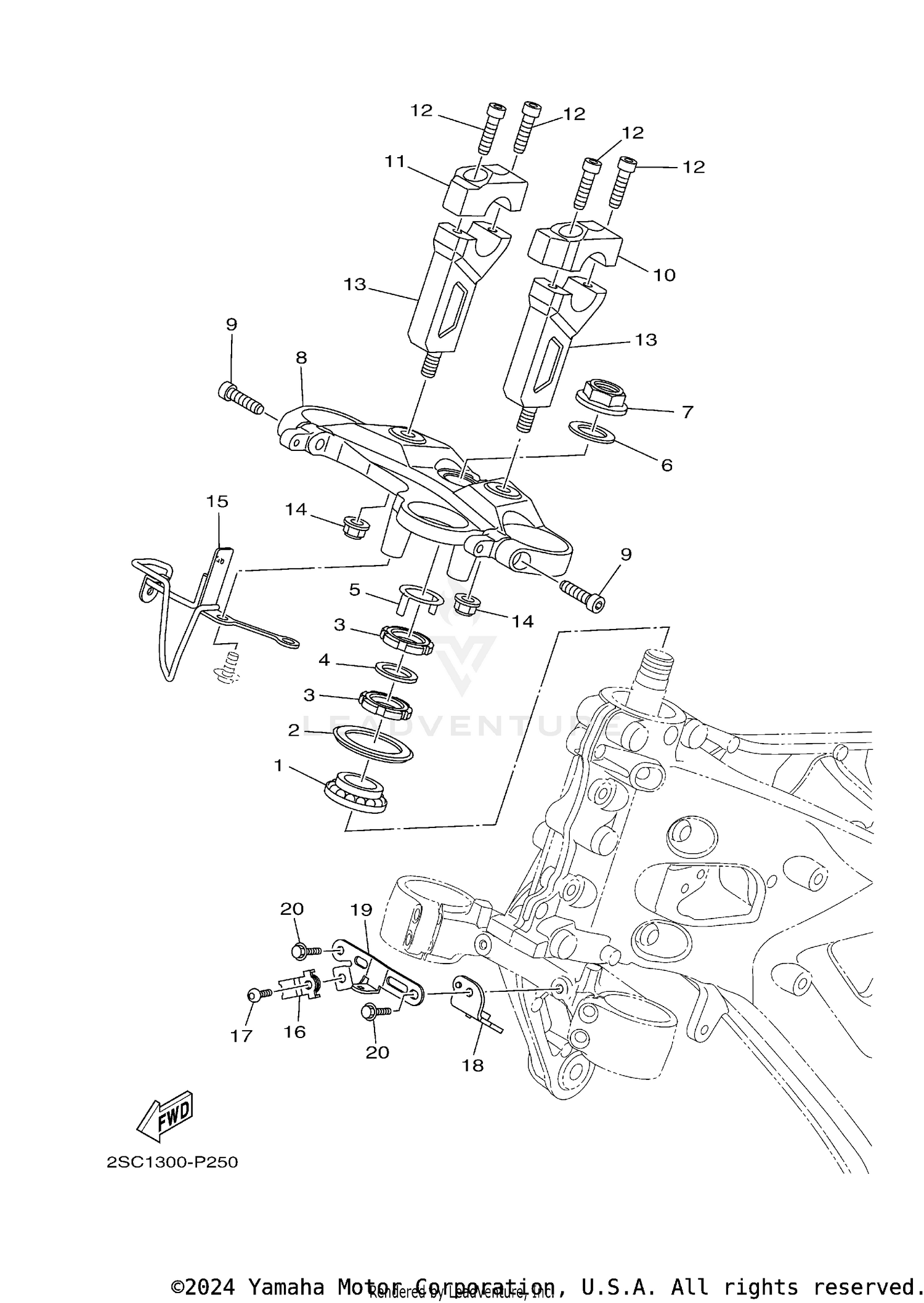

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93399-99931-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, BALL RACE 1
5VX-23415-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-26142-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
26H-23418-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPECIAL
1RC-23393-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CROWN, HANDLE
1RC-23435-20-00
|
$356.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, HANDLE UPPER
2PP-23441-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, HANDLE UPPER 1
2PP-2344A-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Unavailable |
|||
|
#13
HOLDER 1
2PP-24847-00-00
Superseded by 2PP-24847-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, CABLE
2PP-23389-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90461-10008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92017-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, HORN
1RC-23377-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET 1
2PP-2334G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
