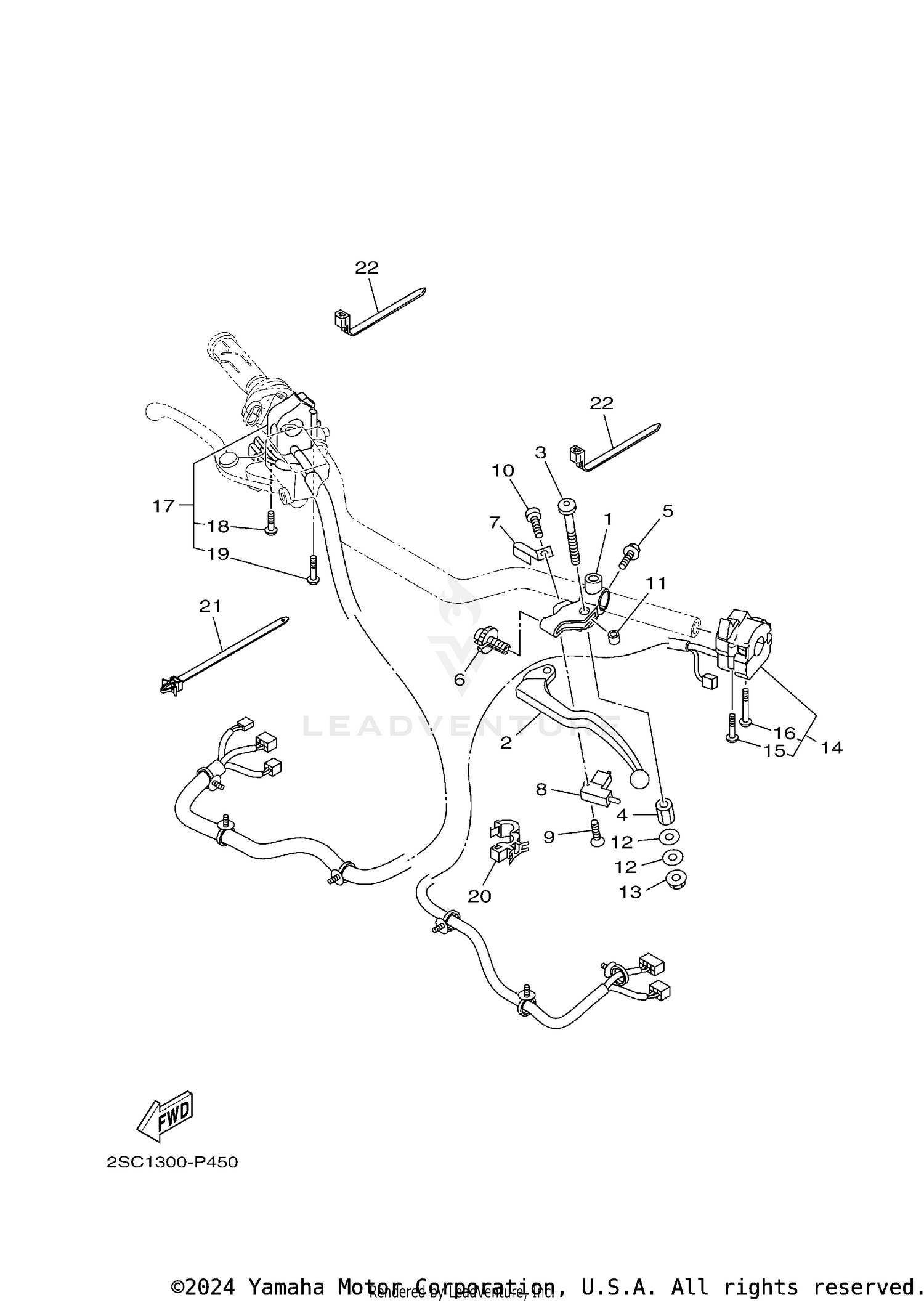

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
1B3-82911-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER 1
5EB-83912-03-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, LEVER
2PP-83945-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90170-06424-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CABLE ADJUSTING
5LV-83951-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SPRING
4XV-83929-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH
3YX-82917-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, COUNTERSUNK
98704-03020-00
Superseded by 90151-03003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-04010-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, LEVER 1
5JJ-83913-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06079-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH HANDLE 5
2PP-83969-00-00
Superseded by 2PP-83969-01-00
|
$166.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98507-05055-00
Superseded by 98506-05055-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH, HANDLE 3
2PP-83963-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98507-05045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
