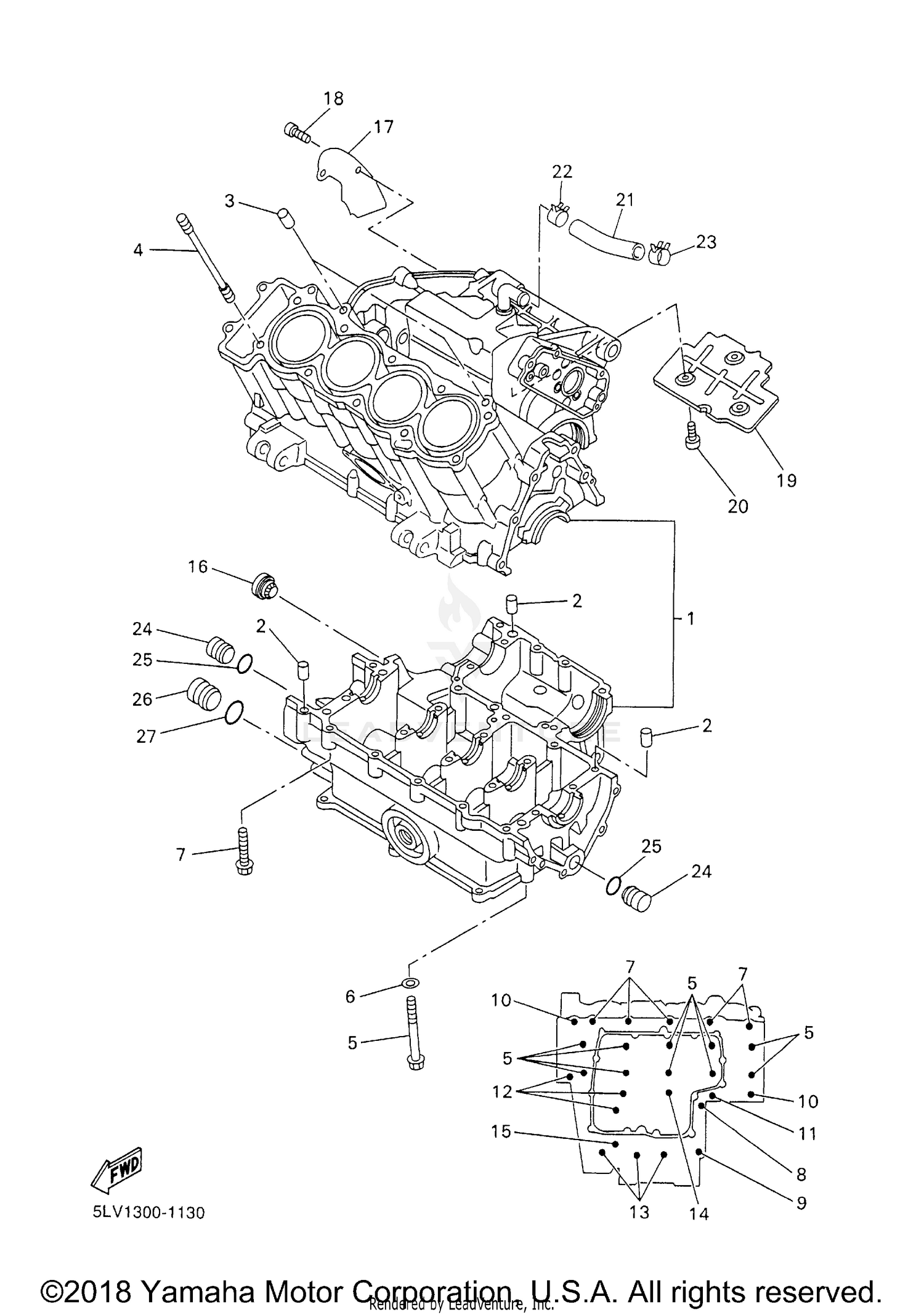

2003 Yamaha FZ 1 CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5LV-15100-01-00
Superseded by 5LV-15100-09-00
|
$1,561.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
90116-10619-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-093A5-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-096J9-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95817-06055-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-08015-00
Superseded by 95817-08050-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95817-08050-00
|
$2.25 | ||
|
Unavailable |
|||
|
#10
BOLT
90109-065G3-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-06060-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95817-06070-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95817-06045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95814-06050-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06065-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
GAUGE, LEVEL
2H7-15361-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BREATHER
4XV-11165-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90110-06018-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, BREATHER 2
4XV-11145-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#20
BOLT
90110-06018-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
PIPE, BREATHER 1
5LV-11166-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90468-08104-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-16009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
90338-16262-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-12790-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-20263-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-16314-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
