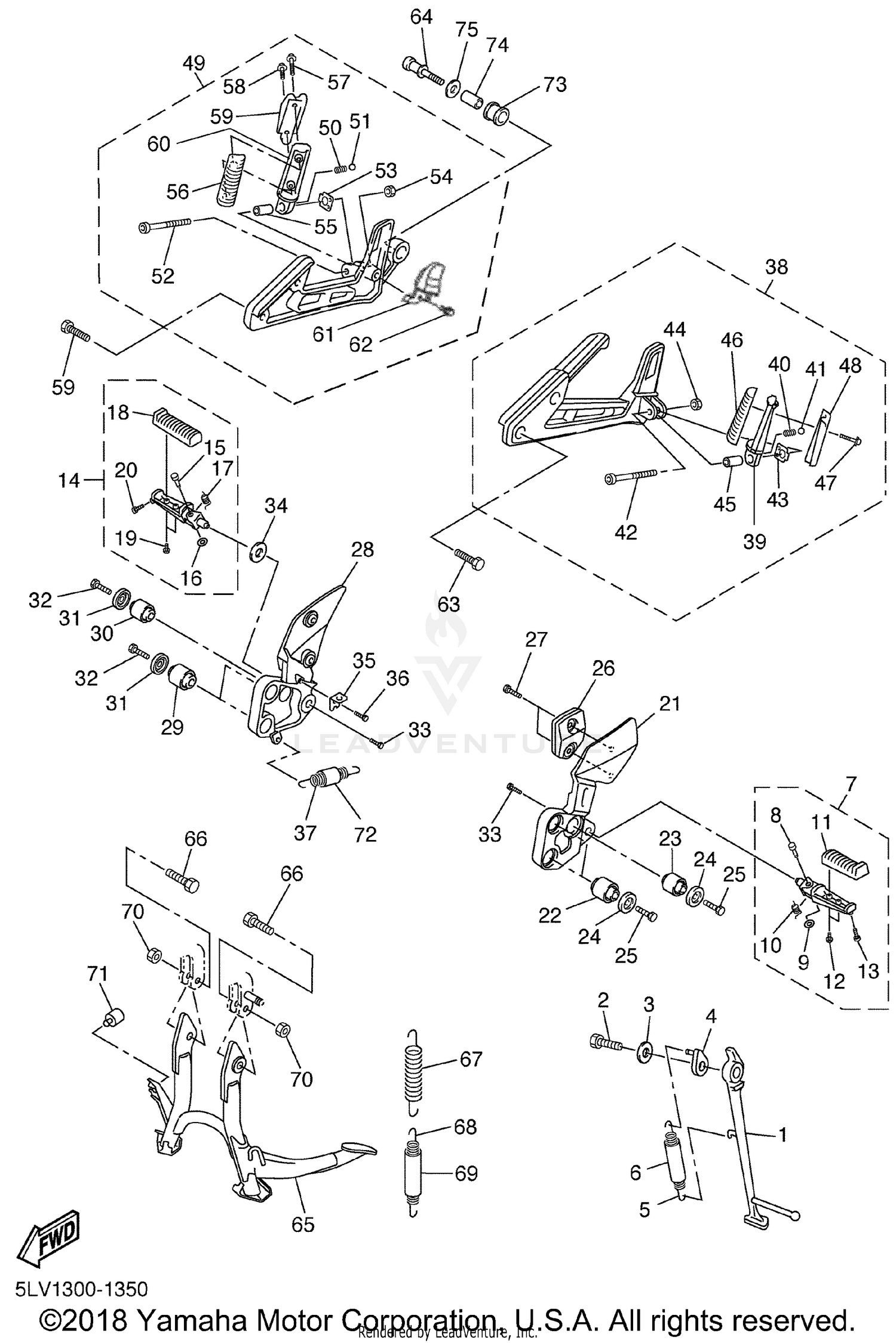

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
5LV-27311-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
97017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SIDE STAND
36Y-27352-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-20006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L60)
90445-197J2-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT FOOTREST ASSY (LEFT)
5LV-27410-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
90243-08029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD WITH WASHER
98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRONT FOOTREST ASSY (RIGHT)
5LV-27420-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
90243-08029-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD WITH WASHER
98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
BOLT
90109-083E0-00
Superseded by 90109-08075-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
BRACKET 2
5LV-27442-00-00
Superseded by 5LV-27442-02-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, MUFFLER
3KJ-14737-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-08295-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WEIGHT
5LV-2622H-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92017-06014-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 3
5LV-27443-01-00
Superseded by 5LV-27443-03-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#30
DAMPER, MUFFLER
3KJ-14737-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
WASHER
90209-08295-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
STAY, STOP SWITCH
4DN-2144G-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, TENSION
90506-20377-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
REAR FOOTREST ASSY 1
5LV-27430-01-00
Superseded by 5LV-27430-04-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTREST, REAR 1
5LV-27431-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPECIAL
5JJ-27437-00-00
Superseded by 5JJ-27437-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#47
SCREW, WITH WASHER
97607-05230-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
ARM 1
5LV-2741A-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
REAR FOOTREST ASSY 2
5LV-27440-01-00
Superseded by 5LV-27440-04-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Unavailable |
|||
|
#51
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
WASHER, SPECIAL
5JJ-27437-00-00
Superseded by 5JJ-27437-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#54
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Unavailable |
|||
|
#55
COLLAR
90387-06014-00
|
$5.49 | ||
|
Unavailable |
|||
|
#56
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#57
SCREW, WITH WASHER
97607-05230-00
|
$7.49 | ||
|
Unavailable |
|||
|
#58
SCREW, WITH WASHER
90159-05004-00
Superseded by 97607-05220-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#59
ARM 2
5LV-2741E-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
FOOTREST, REAR 2
5LV-27441-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
WEIGHT ASSY
5LV-2622J-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, FLANGE
90105-08447-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT
90109-087F1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT
5LV-27217-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
STAND, MAIN
5LV-27111-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
BOLT
90109-100E6-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
SPRING, TENSION
90506-40508-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
SPRING, TENSION
90506-23509-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
HOSE (L60)
90445-170K9-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
NUT, SELF-LOCKING
90185-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
STOPPER, MAIN STAND
1A0-27114-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
HOSE
90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#73
DAMPER, FOOTREST 2
36Y-27424-00-00
Superseded by 36Y-27424-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
WASHER, PLATE
90201-10669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
