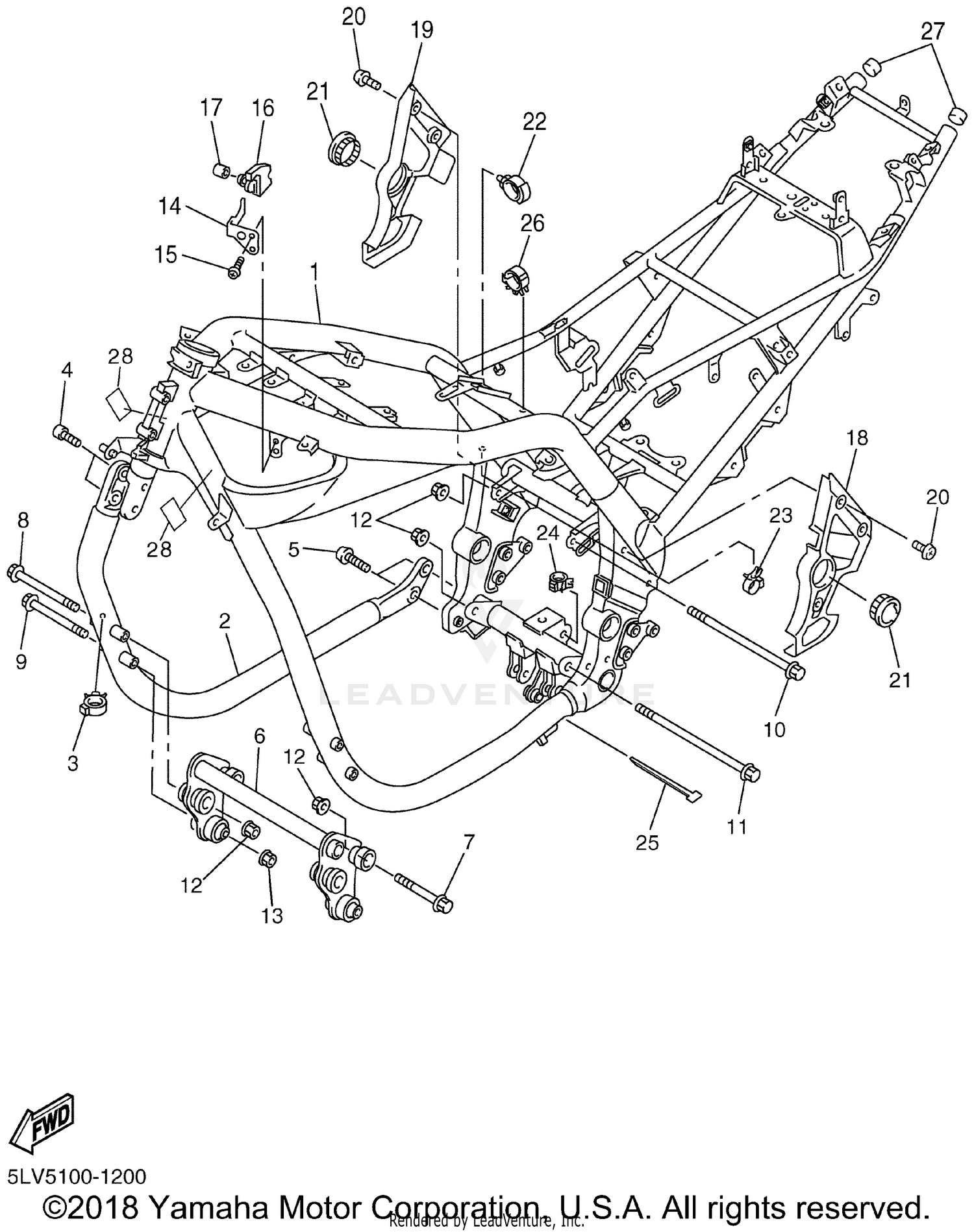

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5LV-21110-20-00
|
$1,997.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DOWN TUBE COMP. 2
5LV-21150-10-00
|
$353.93 | ||
|
Unavailable |
|||
|
#3
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,HEX. SOCKET BUT
90111-10004-00
Superseded by 90111-10019-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
ENGINE BRACKET COMP.
5LV-21400-00-00
|
$450.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-10028-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08042-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95817-10180-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95817-10190-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 7
4XV-2116J-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98907-06012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY 1
4XV-2116A-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-064A5-00
Superseded by 90387-06088-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER
5LV-2117F-00-00
|
$218.89 | ||
|
Unavailable |
|||
|
#19
COVER 2
5LV-2117M-00-00
|
$218.89 | ||
|
Unavailable |
|||
|
#20
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER
4BH-2219X-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-20181-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-08189-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-25217-00
|
$3.90 | ||
|
Unavailable |
|||
|
#27
CAP
3YX-2143A-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL
1JK-21268-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
