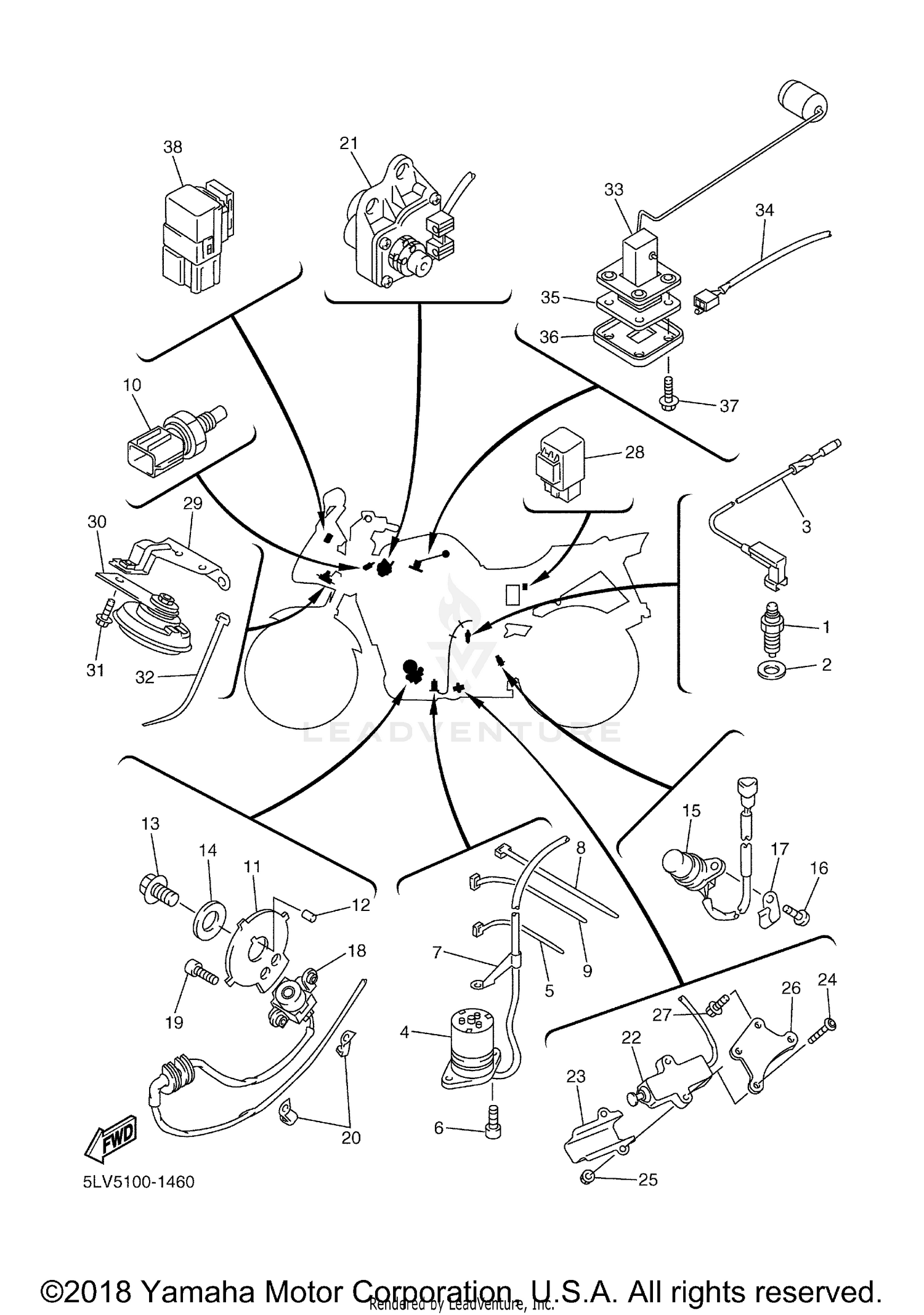

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, UNION
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, LEAD
5LV-82541-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL LEVEL GAUGE ASSY
5LV-85720-01-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90465-08013-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#10
THERMO UNIT
5JJ-83591-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR
4XV-81673-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL
93604-29151-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-107K6-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, SPEED
5LV-83755-00-00
Superseded by 1C2-83755-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
CLAMP
90465-08028-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PICK-UP ASSY
5LV-81670-01-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90110-06018-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90465-08191-00
Superseded by 90465-08054-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SERVO MOTOR ASSY
5LV-Y8585-00-00
Superseded by 5LV-Y8585-01-00
|
$370.99 | ||
|
Unavailable |
|||
|
#22
SWITCH, SIDE STAND
5EB-82566-00-00
Superseded by 5EB-82566-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#23
PLATE
5JJ-82388-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92017-05025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, S/L FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
5LV-8252H-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FLASHER RELAY ASSY
3GM-83350-01-00
Superseded by 3GM-83350-03-00
|
$77.99 | ||
|
Unavailable |
|||
|
#29
BRACKET, HORN
5LV-23377-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#30
HORN
2KG-83371-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
SENDER UNIT ASSY, FUEL METER
5LV-85752-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WIRE, SUB LEAD
5LV-82509-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, SENDER UNIT
4US-85753-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
RETAINER
2JG-85757-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, WITH WASHER
90119-05071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
RELAY ASSY
5JJ-81950-10-00
Superseded by 5JJ-81950-11-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
