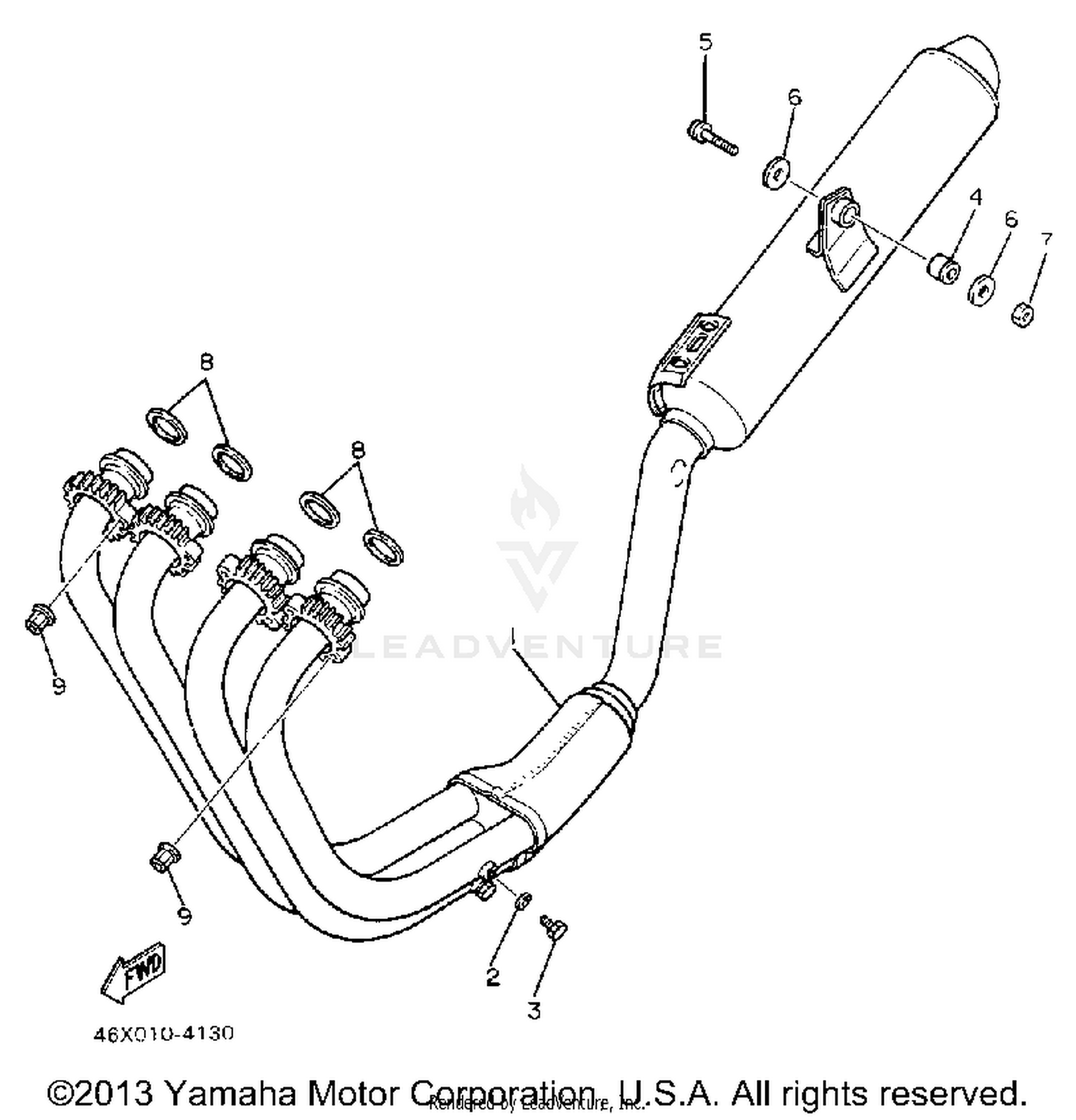

1988 Yamaha FZ600U EXHAUST OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER 1
2AX-14703-00-00
|
$762.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, FOOTREST
36Y-27414-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-083A8-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EXHAUST PIPE
4H7-14613-00-00
Superseded by 4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-06500-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
