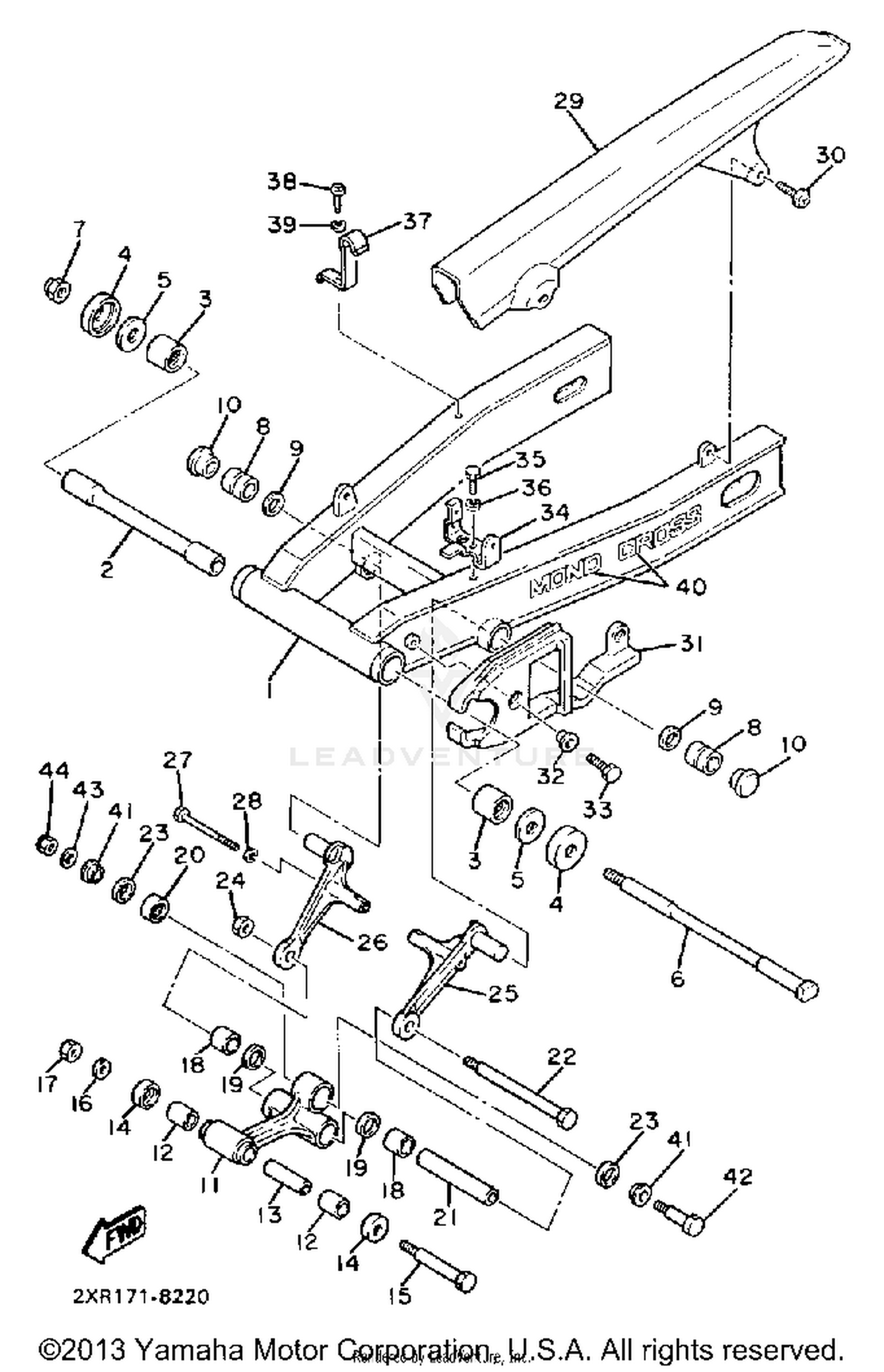

1988 Yamaha FZ600U SWING ARM OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
46X-22110-01-00
|
$330.99 | ||
|
Unavailable |
|||
|
#2
BUSH
33M-22184-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 2
47X-22129-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-161J2-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
46X-22141-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-14070-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SPEC''L NYLON
90386-18136-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93109-18020-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, SPECIAL SHAPE
90338-24112-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RELAY
2XL-2217A-00-00
|
$68.30 | ||
|
Unavailable |
|||
|
#12
BUSH, SPEC''L NYLON
90386-18118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-123J0-00
Superseded by 90387-123M4-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, thrust 2
26H-22129-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-12619-00
|
$2.92 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-12535-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, SPEC''L NYLON
90386-18144-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
OIL SEAL
93109-18020-00
|
$11.99 | ||
|
Unavailable |
|||
|
#20
BEARING
93399-99919-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-127H2-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90101-12677-00
Superseded by 90101-12755-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93101-16131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$3.90 | ||
|
Unavailable |
|||
|
#25
ARM 1
2XL-2217M-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#26
ARM 2
2XL-2217N-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#27
BOLT
97021-08080-00
Superseded by 97027-08080-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CASE, CHAIN
29L-22311-00-00
Superseded by 29L-22311-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#30
SCREW, WITH WASHER
90159-06084-00
Superseded by 90159-06082-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, GUARD
46X-22151-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-06681-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
STAY 2
46X-22132-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#35
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER, BRKE HOSE 2
46X-25876-51-00
|
$6.99 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#40
EMBLEM,REAR ARM
46X-2218A-00-00
Superseded by 3SW-2218A-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
COLLAR
90387-124L0-00
|
$14.49 | ||
|
Unavailable |
|||
|
#42
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-101J1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
