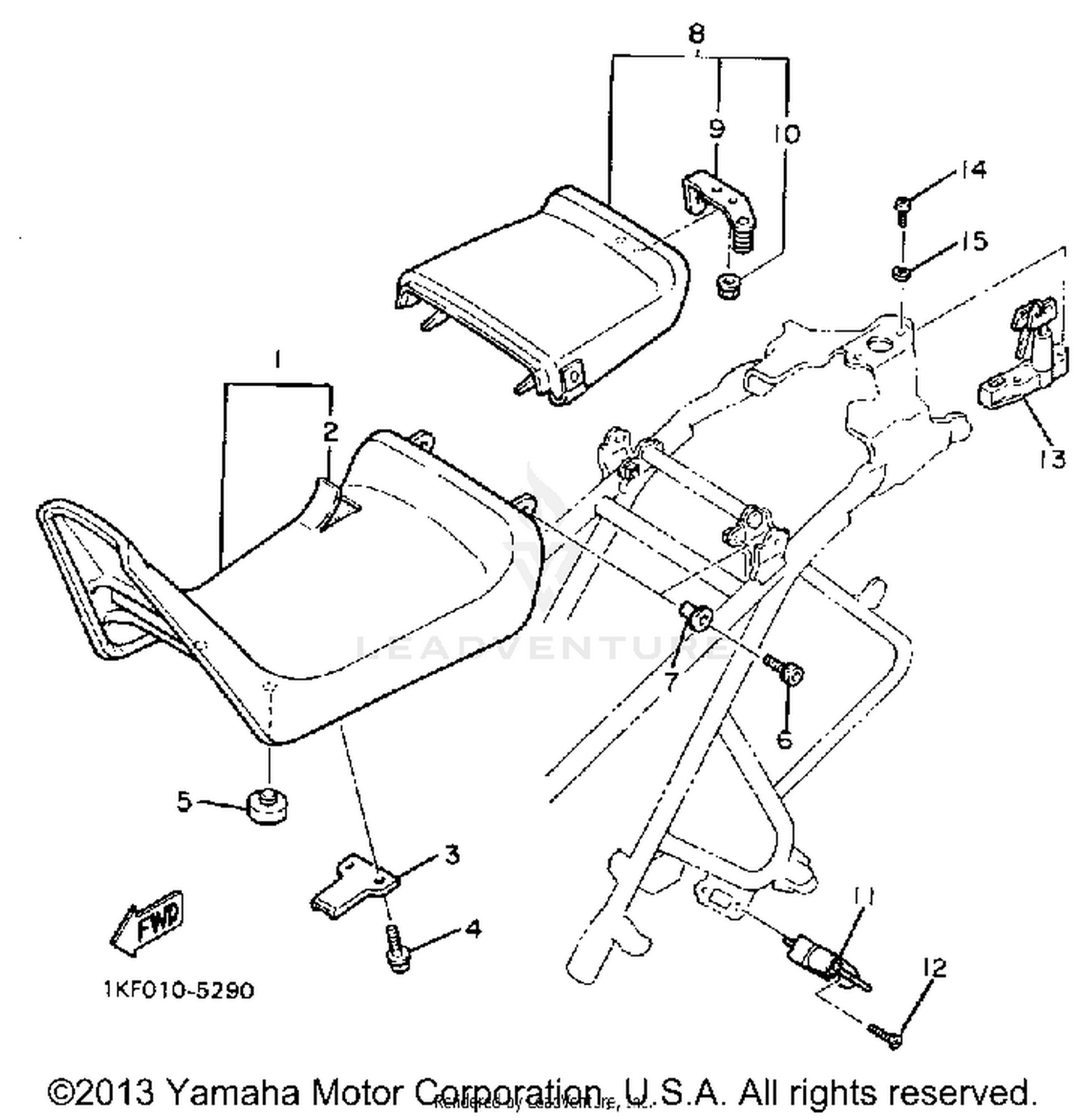

1988 Yamaha FZ600U SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
46X-W2471-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
46X-24711-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
5X6-24748-10-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06681-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANDEM SEAT ASSEMBLY
46X-24750-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#9
HOOK, SEAT
46X-24754-00-00
|
$10.98 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, FLAT HEAD
98706-06030-00
Superseded by 98707-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT LOCK ASSEMBLY
2AX-24705-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
