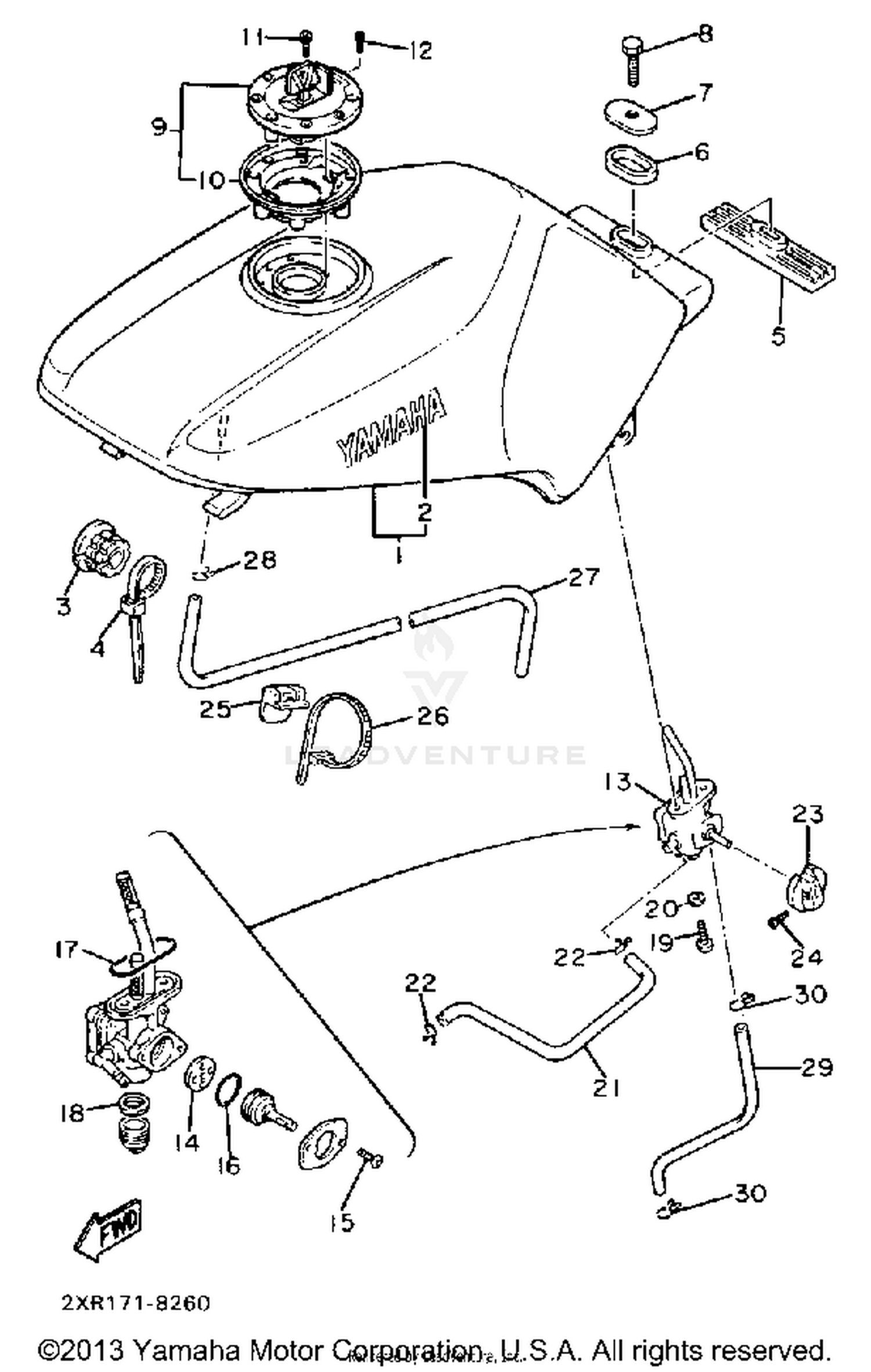

1988 Yamaha FZ600U FUEL TANK NON CALIFORNIA MODEL ONLY OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2EL-24110-01-04
|
$799.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99224-00040-00
Superseded by 99224-00160-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 1
46X-24181-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#4
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
20L-24182-00-00
|
|||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
12R-24186-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP ASSY
1JK-24602-13-00
Superseded by 4FM-24602-20-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FILLER
1XL-2414A-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUEL COCK ASSEMBLY
46X-24500-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#14
VALVE
3H3-24523-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-03008-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
3H3-24534-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
2W6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, FUEL 1
46X-24311-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, COCK
4FD-24524-00-00
Superseded by 1YH-F4524-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98506-03008-00
Superseded by 98517-03008-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, LOCATING 2
47X-24182-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#27
PIPE 5
2EL-24315-00-00
|
$8.68 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE (L685)
90445-097E9-00
Superseded by 90445-090G9-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-08021-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
