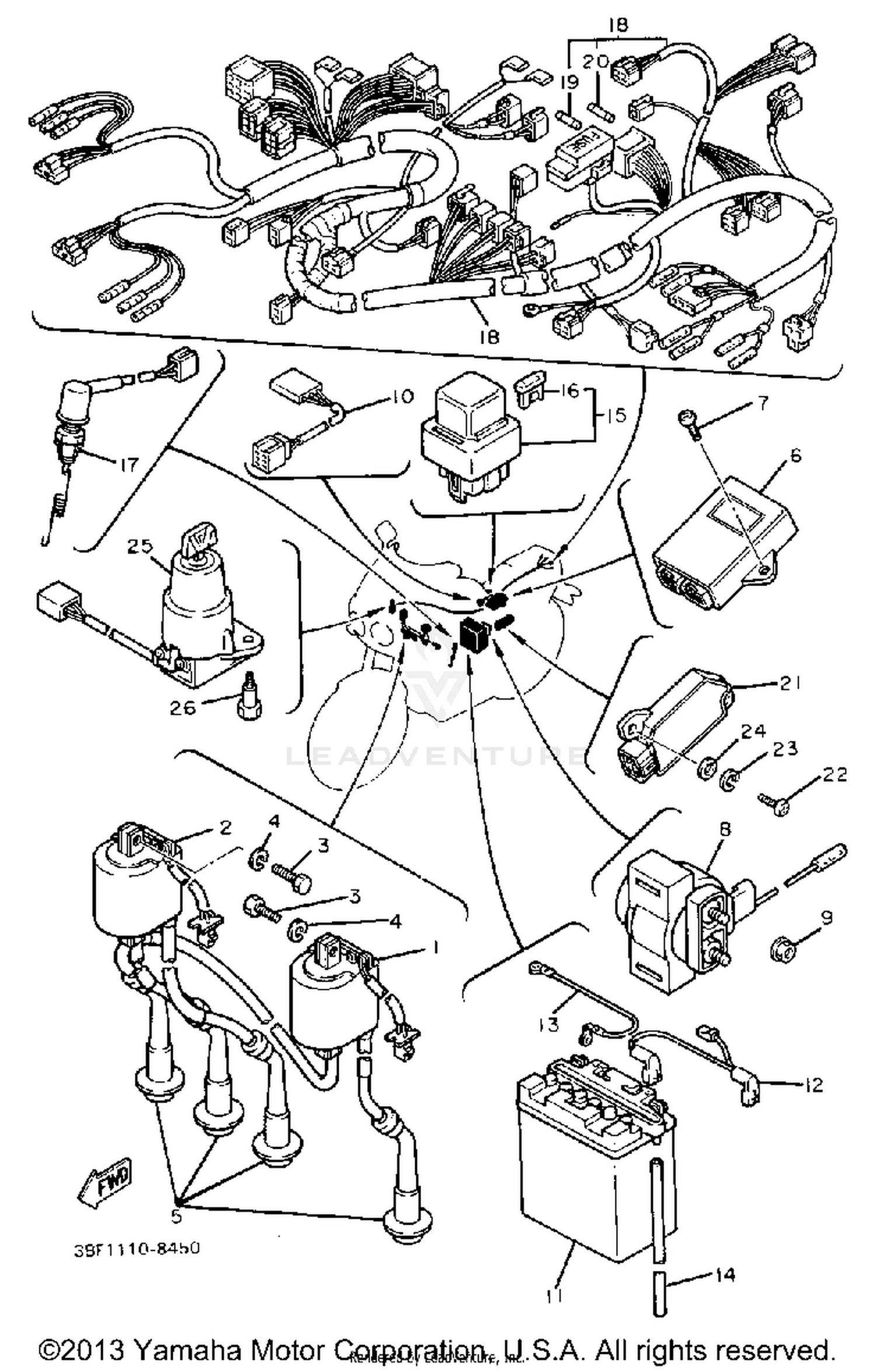

1989 Yamaha FZR400W ELECTRICAL 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASY
1WG-82310-10-00
Superseded by 1WG-82310-09-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COIL ASY
1WG-82320-10-00
Superseded by 1WG-82310-09-00
|
$247.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSEMBLY
1WG-82370-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITOR UNIT ASSEMBLY
3FH-82305-00-00
|
$615.99 | ||
|
Unavailable |
|||
|
#7
SCREW, TAPPING
97702-60120-00
Superseded by 97707-60520-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STARTER RELAY ASSY
36Y-81940-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIODE ASSY
4U8-81980-M0-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
YB12ALA2 YUASA BATT
BTG-GM12A-Z3-A2
Superseded by YB1-2ALA2-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, PLUS LEAD
1WG-82115-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#13
WIRE, MINUS LEAD
3WP-82116-00-00
Superseded by 89H-82116-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
PIPE
90445-080F4-00
Superseded by 90445-084J0-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE HOLDER ASSY
1AE-82150-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOP SWITCH ASSY
1KT-82530-02-00
Superseded by 1KT-82530-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE HARNESS ASSEMBLY
3FH-82590-00-00
|
$479.99 | ||
|
Unavailable |
|||
|
#19
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE (15A)
4X7-82151-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
RECTIFIER & REGULATOR ASSEMBLY
47X-81960-A2-00
Superseded by 47X-81960-A3-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
MAIN SWITCH STEERING LOCK
3FH-82501-10-00
|
$245.99 | ||
|
Unavailable |
|||
|
#26
SCREW
90149-06228-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
