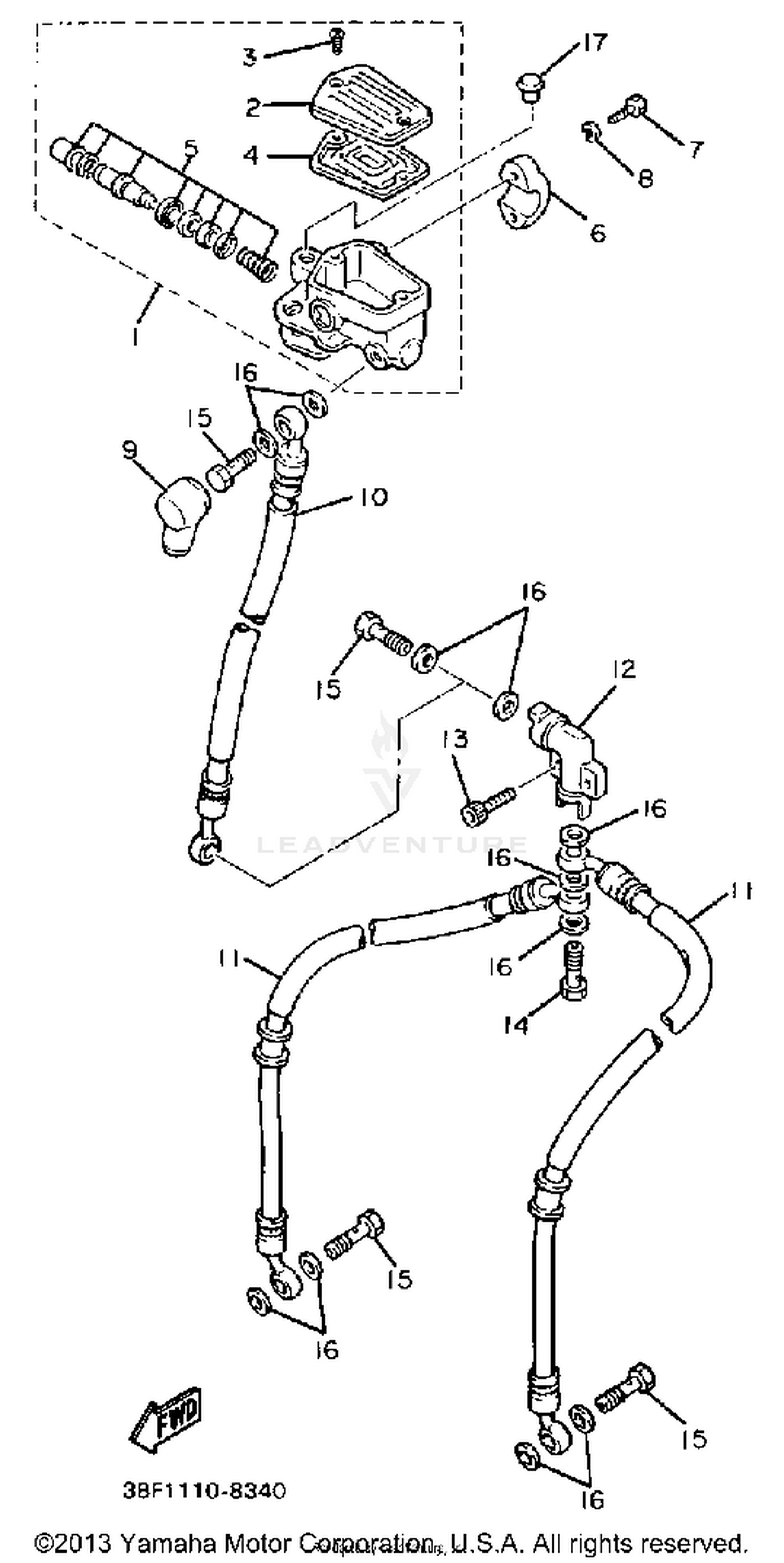

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
36Y-25850-01-00
Superseded by 3HE-2583T-02-00
|
$202.99 | ||
|
Unavailable |
|||
|
#2
CAP, RESERVOIR
36Y-25852-01-00
Superseded by 3HE-25852-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
36Y-25854-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER KIT, MASTER
36Y-W0041-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
36Y-25867-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
3HE-25872-01-00
Superseded by 99999-02528-00
|
$87.99 | ||
|
Unavailable |
|||
|
#11
HOSE BRAKE (1WG)
1WG-25873-01-00
Superseded by 99999-02731-00
|
$95.99 | ||
|
Unavailable |
|||
|
#12
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#13
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
BOLT, UNION
90401-10095-00
Superseded by 90401-10038-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG
90338-09012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
