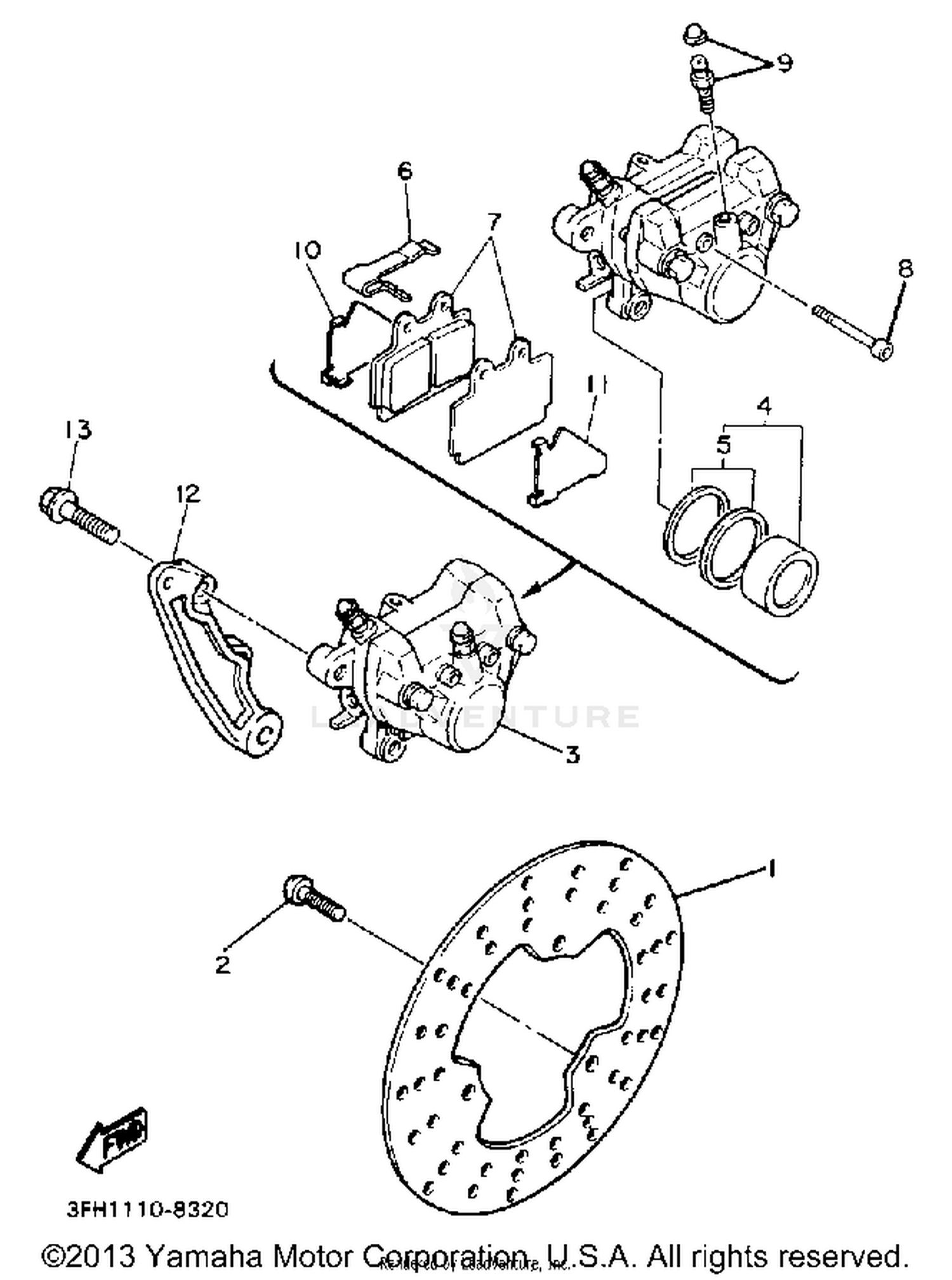

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1WG-25831-50-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASY
1WG-25810-51-00
Superseded by 4AP-2580W-00-00
|
$385.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSEMBLY, CALIPER
51L-W0057-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
51L-W0047-11-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
51L-25919-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE PAD KIT 2
51L-W0046-02-00
Superseded by 4AP-W0046-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
51L-25924-00-00
Superseded by 4FL-25924-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
47X-25827-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CALIPER
47X-25827-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CALIPER
1WG-25819-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-10638-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
