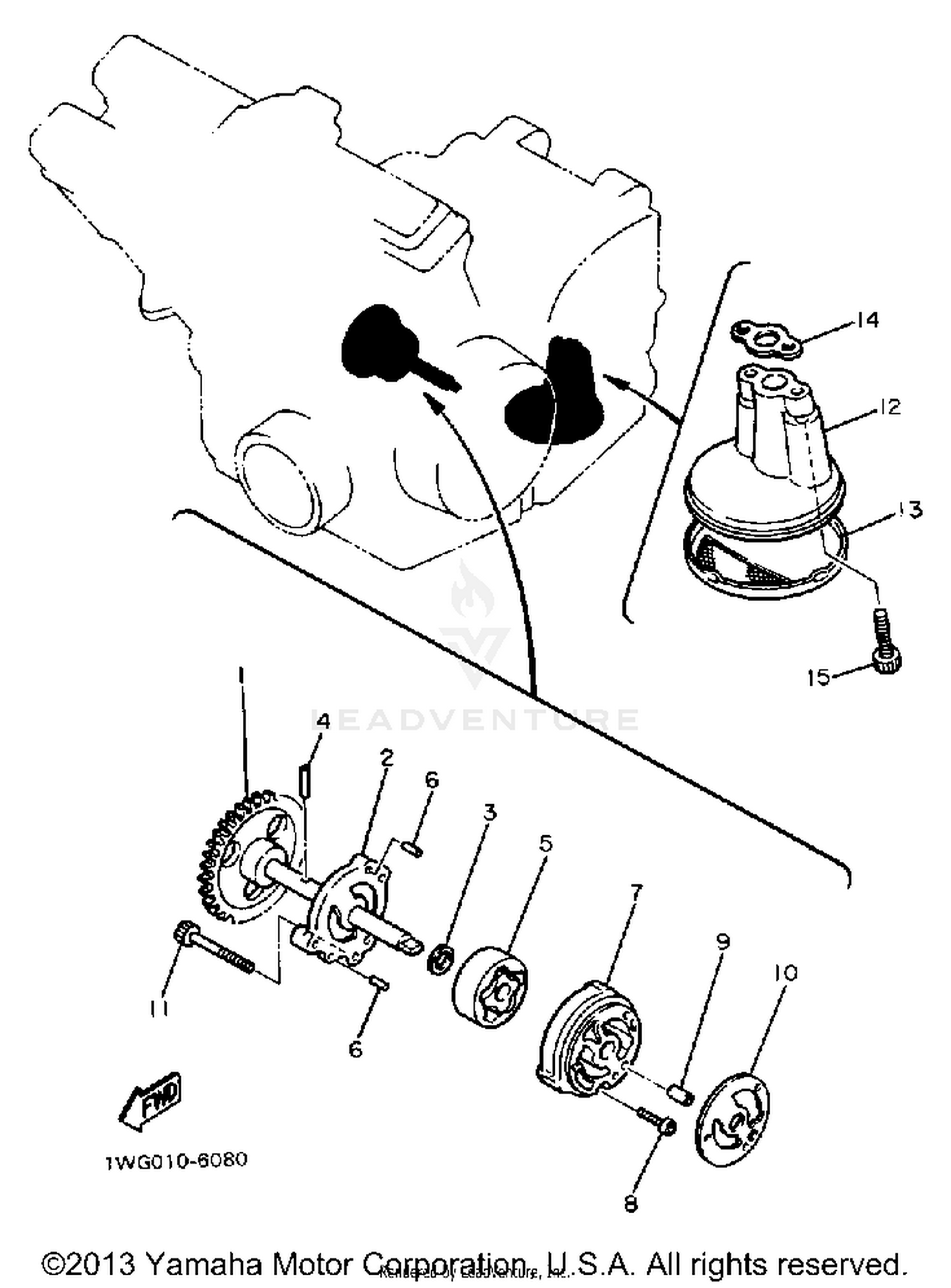

1989 Yamaha FZR400W OIL PUMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP SHAFT ASSEMBLY
1WG-13330-01-00
|
$246.99 | ||
|
Unavailable |
|||
|
#2
COVER, PUMP
1WG-13316-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-113K2-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-17070-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR ASSY 1
1WG-13310-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93603-09106-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, ROTOR
1WG-13336-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
97801-06020-00
Superseded by 98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, PUMP COVER
1WG-13329-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90110-06130-00
Superseded by 91317-06050-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, STRAINER
1WG-13412-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#13
STRAINER, OIL
4H7-13411-02-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, OIL STRAINER
3YX-13415-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX SKT HEADSOCKET HEAD
90110-06099-00
|
$2.05 | ||
|
Unavailable |
|||
