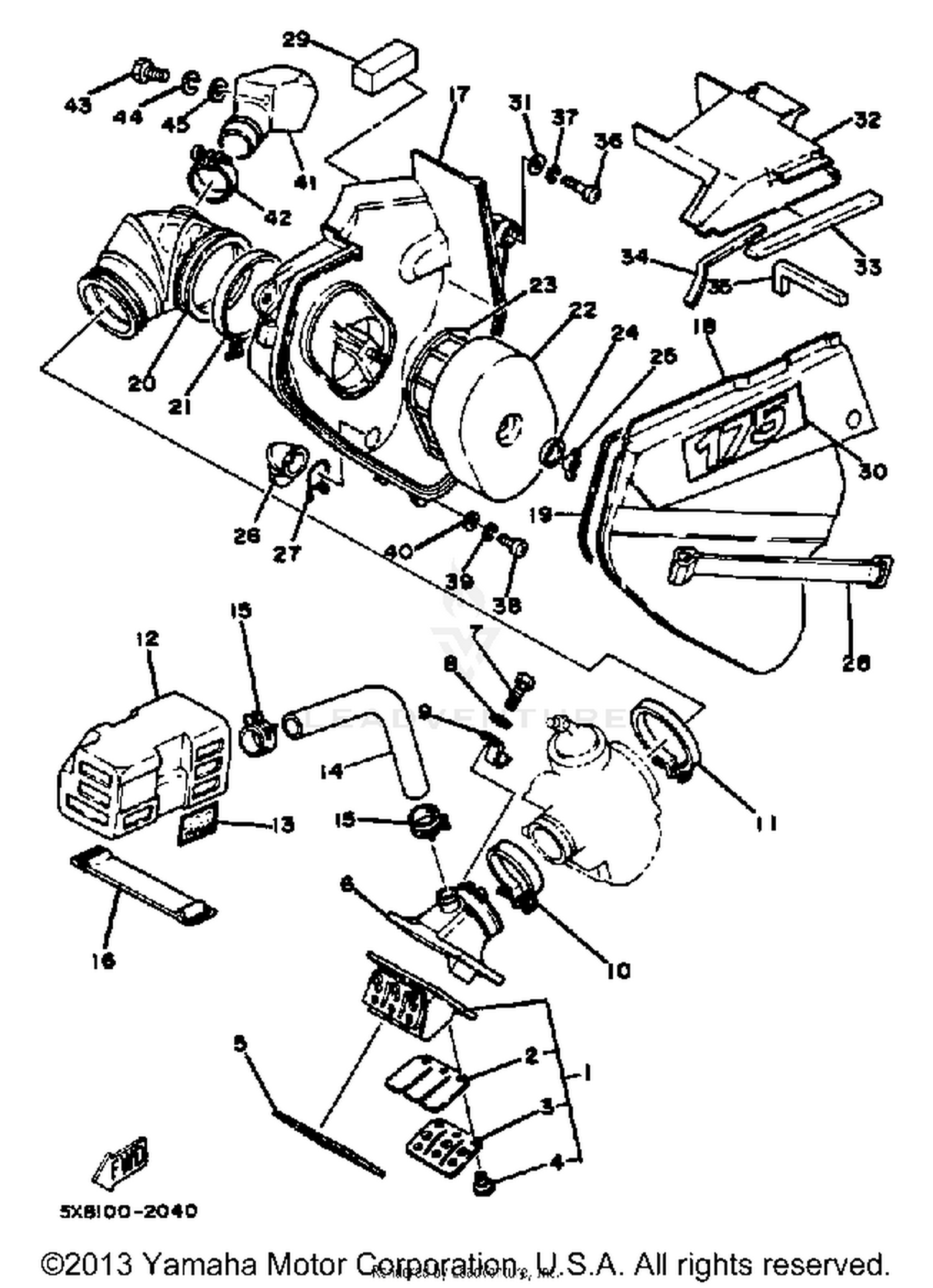

1982 Yamaha IT175J AIR FILTER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
43G-13610-00-00
|
$192.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
3R3-13613-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
43G-13616-00-00
Superseded by 55Y-13616-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,VALVE SEAT
3R3-13621-00-00
Superseded by 3R3-13621-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
5X8-13565-00-00
|
$53.20 | ||
|
Unavailable |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90462-05005-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-49058-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90460-64065-00
Superseded by 90450-64004-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CHAMBER, AIR
5X8-13581-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#13
EMBLEM
4V3-1441K-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#14
HOSE
90445-21562-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-20050-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, BATTERY
1E6-82131-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, AIR CLEANER 1
5X3-14411-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#18
CAP, CLEANER CASE 1
5X8-14412-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#19
SEAL
50M-14462-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, AIR CLNR 1
5X8-14453-10-00
|
$50.99 | ||
|
Unavailable |
|||
|
#21
HOSE CLAMP ASSY
90460-75020-00
Superseded by 90450-75002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ELEMENT, AIR CLNR
5X4-W1442-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#23
GUIDE, ELEMENT
5X4-14458-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#24
PLATE, ELEMENT FTNG
2X4-14468-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#25
NUT, WING
90175-06008-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL
1W1-14457-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND
5X3-14455-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#29
DAMPER, HEADLIGHT (2XJ-84345-00
5X4-14462-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
EMBLEM
5X8-21737-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#32
DUCT
5X8-14437-00-00
|
$34.30 | ||
|
Unavailable |
|||
|
#33
SEAL
5X8-14452-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#34
SEAL
5X8-14457-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#35
SEAL
5X8-14462-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Unavailable |
|||
|
#41
CHAMBER, AIR 2
5X8-13591-00-00
|
$24.39 | ||
|
Unavailable |
|||
|
#42
CLAMP, HOSE
90460-36174-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
