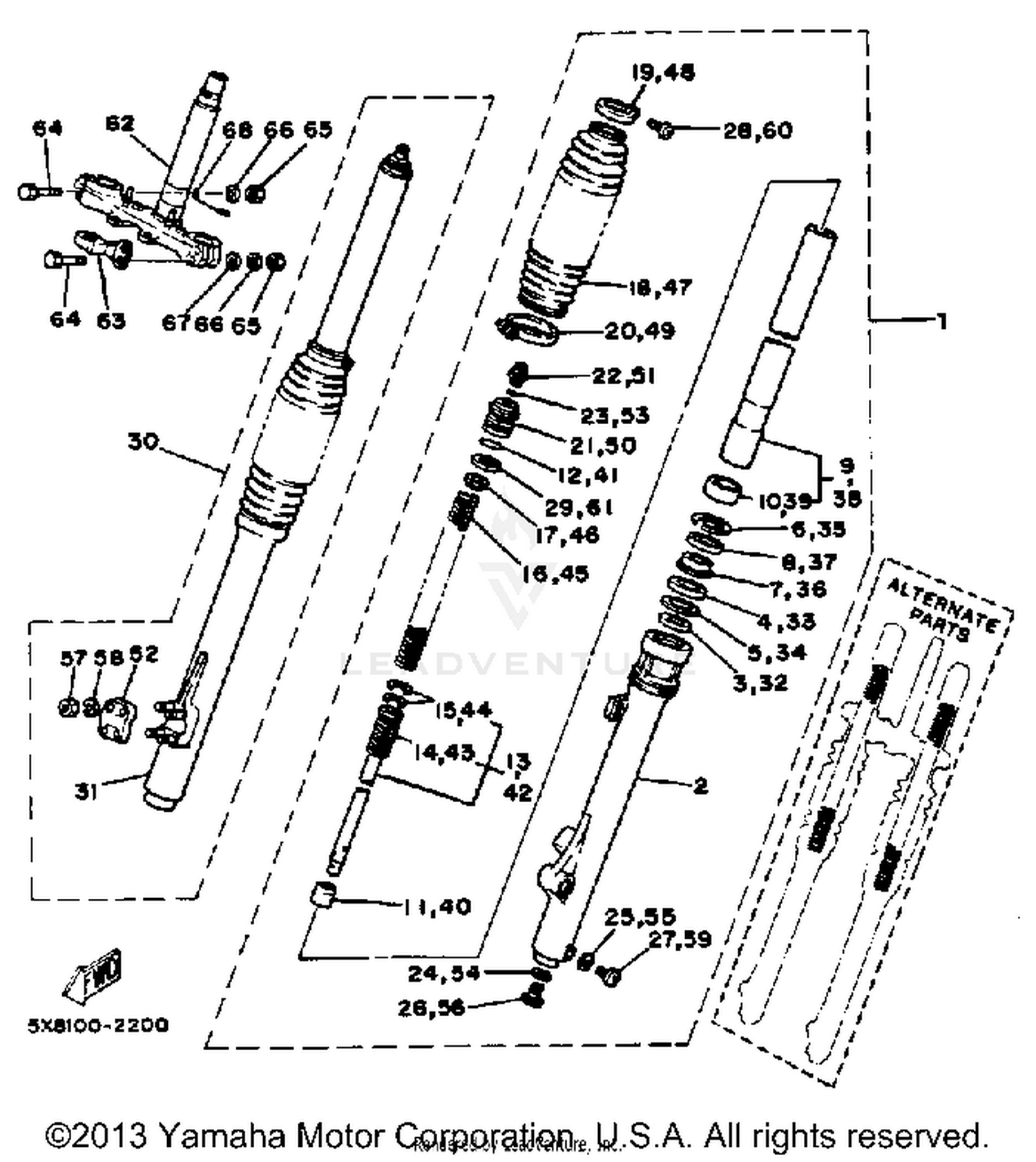

1982 Yamaha IT175J FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
5X8-23102-L0-00
|
$468.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
4V5-23126-L0-00
|
$135.99 | ||
|
Unavailable |
|||
|
#3
METAL, SLIDE 1
2YK-23125-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
3EN-23145-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
4V2-23146-L0-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
3R4-23144-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#8
COVER, DUST SEAL
3R4-23148-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
INNER TUBE 1
5X4-23110-L0-00
|
$305.99 | ||
|
Unavailable |
|||
|
#10
PISTON, FRONT FORK
4V2-23171-L0-00
|
$15.68 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
3R4-23173-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#12
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CYLINDER, FRTFRK
5X8-23170-L0-00
|
$45.40 | ||
|
Unavailable |
|||
|
#14
SPRING, REBOUND
1W4-23151-L0-00
|
$7.46 | ||
|
Unavailable |
|||
|
#15
RING, PISTON FRTFRK
4V2-23157-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
SPRING, FRONT FORK
5X8-23141-L0-00
|
$29.38 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK SOFT
5X8-23141-10-00
|
$37.30 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK HARD
5X8-23141-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
1W4-23142-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
BOOT, FRONT FORK
3R4-23191-M0-00
|
$70.99 | ||
|
Unavailable |
|||
|
#19
BAND
1W4-23192-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#20
BAND
1W4-23489-L0-00
|
$7.52 | ||
|
Unavailable |
|||
|
#21
BOLT, CAP
5X4-23111-L0-00
|
$40.46 | ||
|
Unavailable |
|||
|
#22
AIR VALVE
4V4-23190-L0-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
3J2-23147-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
509-23158-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
3R4-23181-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER
5X8-23118-L0-00
|
$6.04 | ||
|
Unavailable |
|||
|
#30
FRONT FORK ASSEMBLY R
5X8-23103-L0-00
|
$468.99 | ||
|
Unavailable |
|||
|
#31
TUBE, OUTER 2
4V5-23136-L0-00
|
$135.99 | ||
|
Unavailable |
|||
|
#32
METAL, SLIDE 1
2YK-23125-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#33
OIL SEAL
3EN-23145-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#34
WASHER, OIL SEAL
4V2-23146-L0-00
|
$26.99 | ||
|
Unavailable |
|||
|
#35
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
SEAL, DUST
3R4-23144-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#37
COVER, DUST SEAL
3R4-23148-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#38
INNER TUBE 1
5X4-23110-L0-00
|
$305.99 | ||
|
Unavailable |
|||
|
#39
PISTON, FRONT FORK
4V2-23171-L0-00
|
$15.68 | ||
|
Unavailable |
|||
|
#40
SPINDLE, TAPER
3R4-23173-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#41
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
CYLINDER, FRTFRK
5X8-23170-L0-00
|
$45.40 | ||
|
Unavailable |
|||
|
#43
SPRING, REBOUND
1W4-23151-L0-00
|
$7.46 | ||
|
Unavailable |
|||
|
#44
RING, PISTON FRTFRK
4V2-23157-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
SPRING, FRONT FORK
5X8-23141-L0-00
|
$29.38 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK SOFT
5X8-23141-10-00
|
$37.30 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK HARD
5X8-23141-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#46
SEAT, SPRING UPPER
1W4-23142-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#47
BOOT, FRONT FORK
3R4-23191-M0-00
|
$70.99 | ||
|
Unavailable |
|||
|
#48
BAND
1W4-23192-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#49
BAND
1W4-23489-L0-00
|
$7.52 | ||
|
Unavailable |
|||
|
#50
BOLT, CAP
5X4-23111-L0-00
|
$40.46 | ||
|
Unavailable |
|||
|
#51
AIR VALVE
4V4-23190-L0-00
|
$54.99 | ||
|
Unavailable |
|||
|
#52
HOLDER, AXLE
4V2-23167-L0-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
O-RING
3J2-23147-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#54
GASKET
509-23158-L0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#55
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#56
BOLT, HEXAGON SOCKET HEAD
3R4-23181-L0-00
|
$5.49 | ||
|
Unavailable |
|||
|
#57
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#58
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#60
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$6.99 | ||
|
Unavailable |
|||
|
#61
SPACER
5X8-23118-L0-00
|
$6.04 | ||
|
Unavailable |
|||
|
#62
UNDER BRACKET
4V5-23340-L0-33
|
$235.99 | ||
|
Unavailable |
|||
|
#63
GUIDE, CABLE
3R4-23389-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT
90101-08340-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#65
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#66
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#68
GUIDE, CABLE
4V5-23389-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
