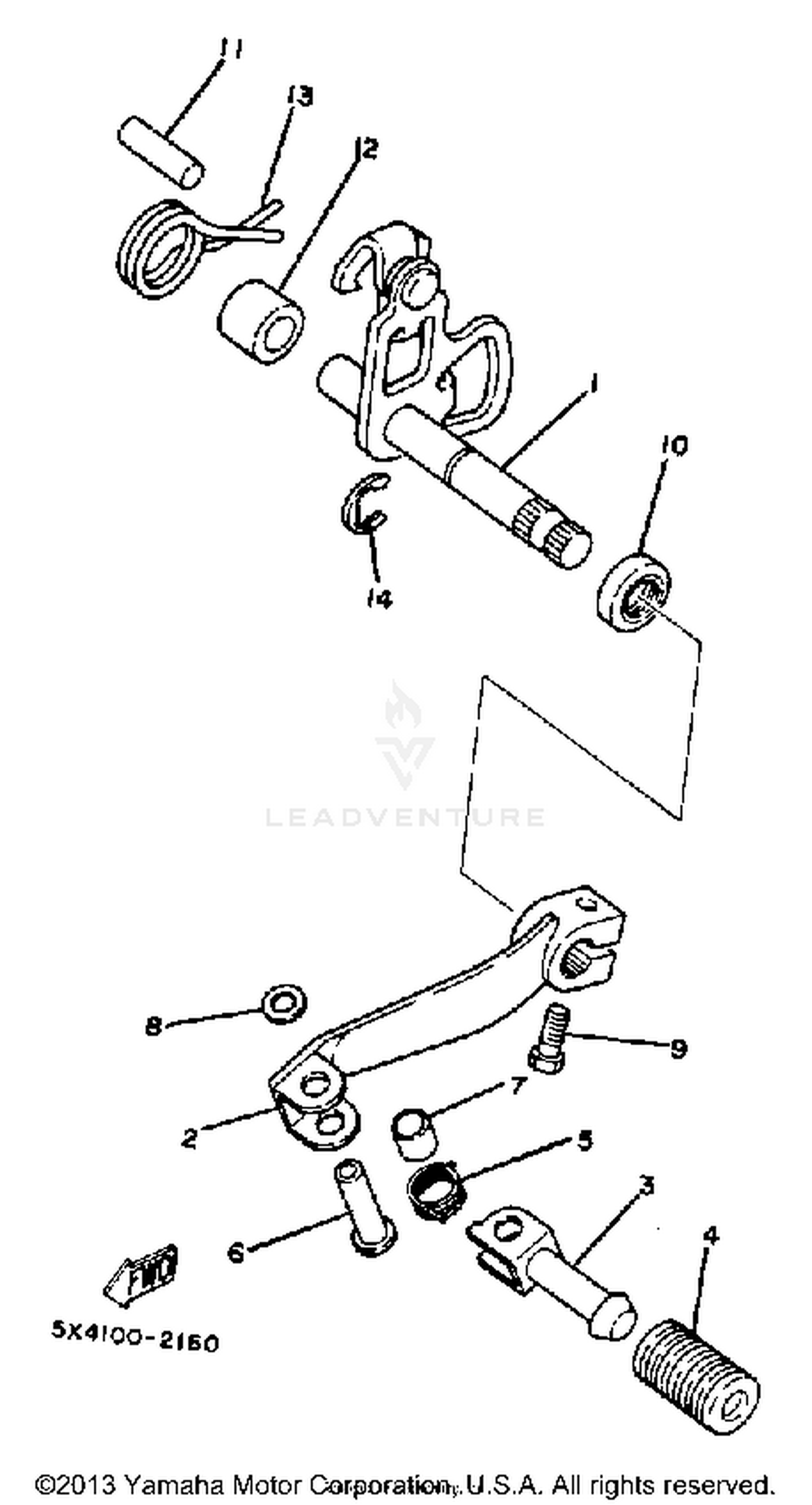

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY. 1
24X-18101-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#2
SHIFT PEDAL ASSEMBLY (509-18111
5X4-18110-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
PEDAL, SHIFT
5X4-18162-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#4
COVER, SHIFT PEDAL
1W6-18113-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-16558-00
|
$4.45 | ||
|
Unavailable |
|||
|
#6
RIVET(25Y)
90243-08020-00
Superseded by 90269-08041-00
|
$3.10 | ||
|
Unavailable |
|||
|
#7
HOSE
90446-11180-00
|
$2.40 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93608-25150-00
|
$2.50 | ||
|
Unavailable |
|||
|
#12
SPACER
90560-11189-00
|
$8.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TORSION
90508-29361-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
