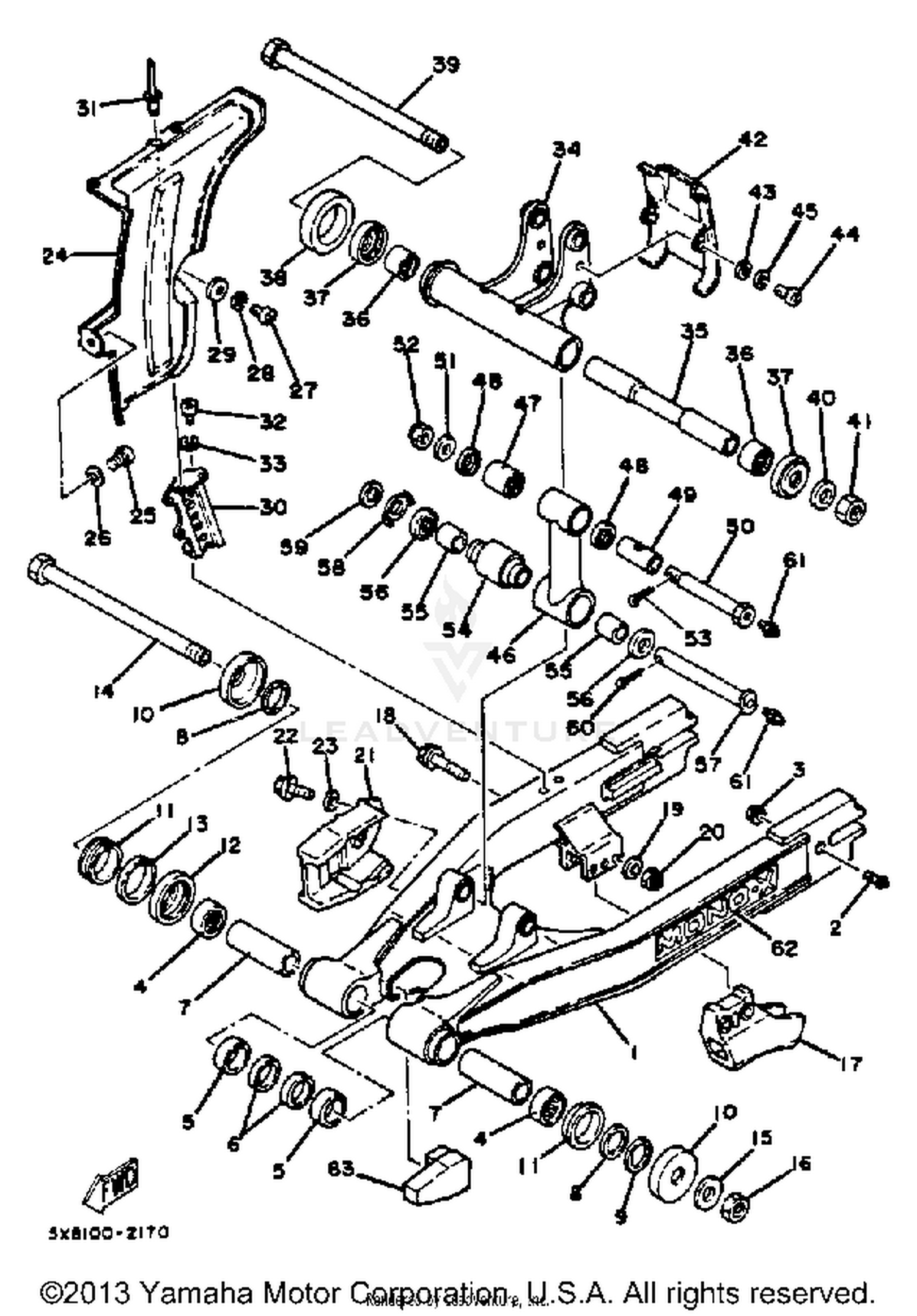

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
5X8-22110-00-35
|
$437.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-08599-00
|
$5.49 | ||
|
Unavailable |
|||
|
#3
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CYLINDER.#17
93317-22208-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SPEC''L NYLON
90386-22097-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SOLID
90380-16077-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-22680-00
|
$4.40 | ||
|
Unavailable |
|||
|
#9
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, THRUST 1
2K6-22128-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, GUARD
5X6-22151-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-440G3-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
SUPPORT, CHAIN
5X4-22199-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PROTECTOR, CHAIN
5X6-22147-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CASE, CHAIN
99999-01413-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
CASE, CHAIN
5X8-W2231-01-00
|
$98.99 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, CHAIN CASE 1
5X8-22321-00-00
|
$18.86 | ||
|
Unavailable |
|||
|
#31
RIVET, BLIND
90267-40075-00
Superseded by 90267-40080-00
|
$4.55 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#34
ARM, RELAY
5X3-2217A-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-163F6-00
|
$24.99 | ||
|
Unavailable |
|||
|
#36
BEARING, CYLINDER.#17
93317-22208-00
|
$43.99 | ||
|
Unavailable |
|||
|
#37
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL, GUARD
1W1-22151-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#39
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#42
PROTECTOR
5X3-21652-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#43
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#46
ROD, CONNECTING 1
5X3-2217F-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#47
BEARING, CYLINDER #15
93315-22046-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BUSH, SOLID
90380-14095-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT
90109-12646-00
|
$21.99 | ||
|
Unavailable |
|||
|
#51
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#54
BUSH 1
5X6-22123-00-00
|
$19.14 | ||
|
Unavailable |
|||
|
#55
BUSH, BIMETAL FORM
90384-16156-00
|
$5.99 | ||
|
Unavailable |
|||
|
#56
COVER, DUST
5X6-2217H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#57
PIN, SPEC''L SHAPE
90249-16153-00
|
$14.99 | ||
|
Unavailable |
|||
|
#58
WASHER, LOCK
90215-16198-00
|
$3.18 | ||
|
Unavailable |
|||
|
#59
WASHER, PLATE
90201-16243-00
Superseded by 90201-17682-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#60
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#62
EMBLEM, REAR ARM
5X6-2218A-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#63
DAMPER 1
5X4-2214F-00-00
|
$6.49 | ||
|
Unavailable |
|||
