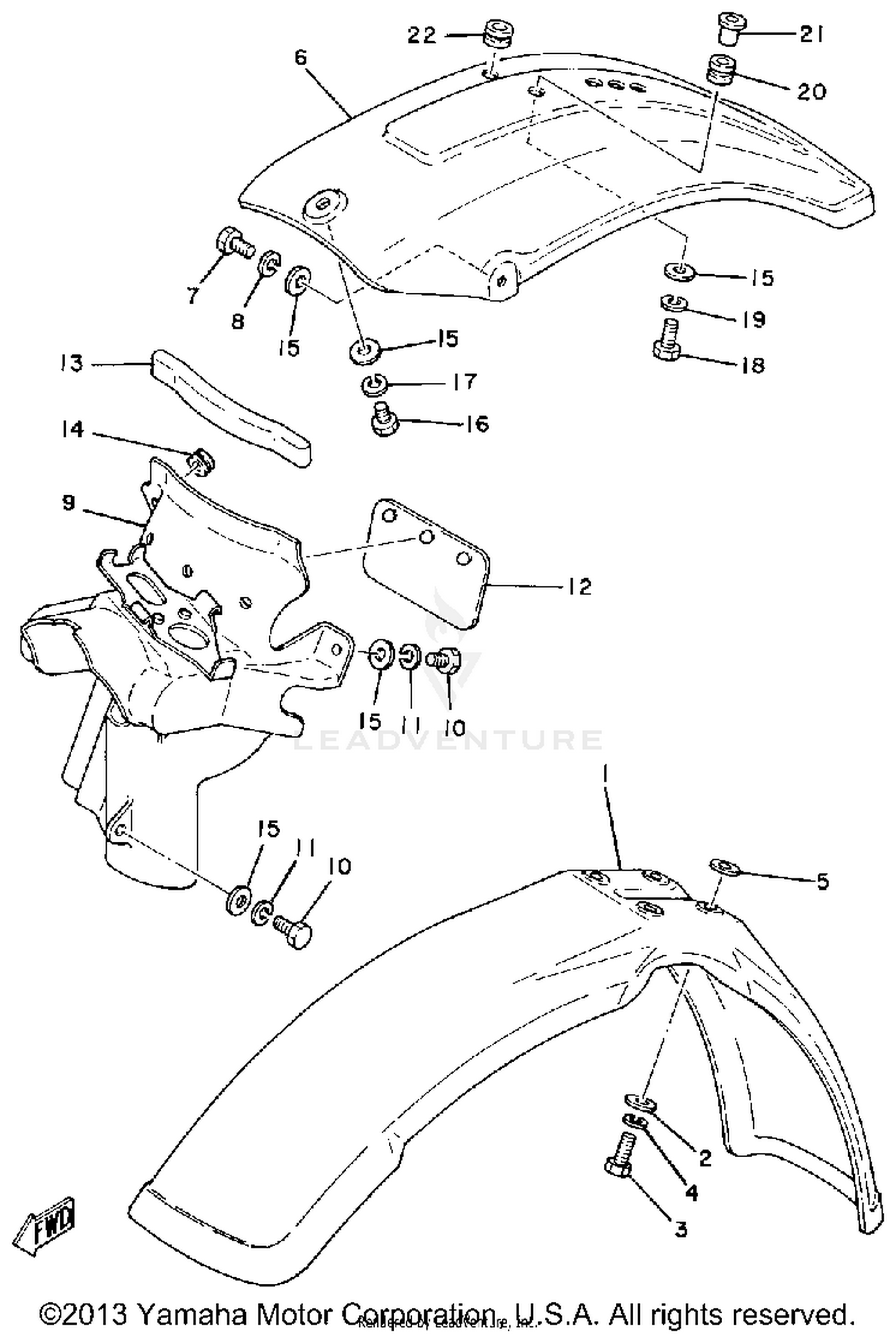

Front Fender-rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-11-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
90209-06187-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, REAR
3R8-21611-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#9
GUARD, MUD
3R7-21620-00-00
|
$32.66 | ||
|
Unavailable |
|||
|
#10
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
FLAP
1M1-21621-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
565-21746-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-13018-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Unavailable |
|||
|
#16
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#20
GROMMET
90480-14198-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-15058-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
