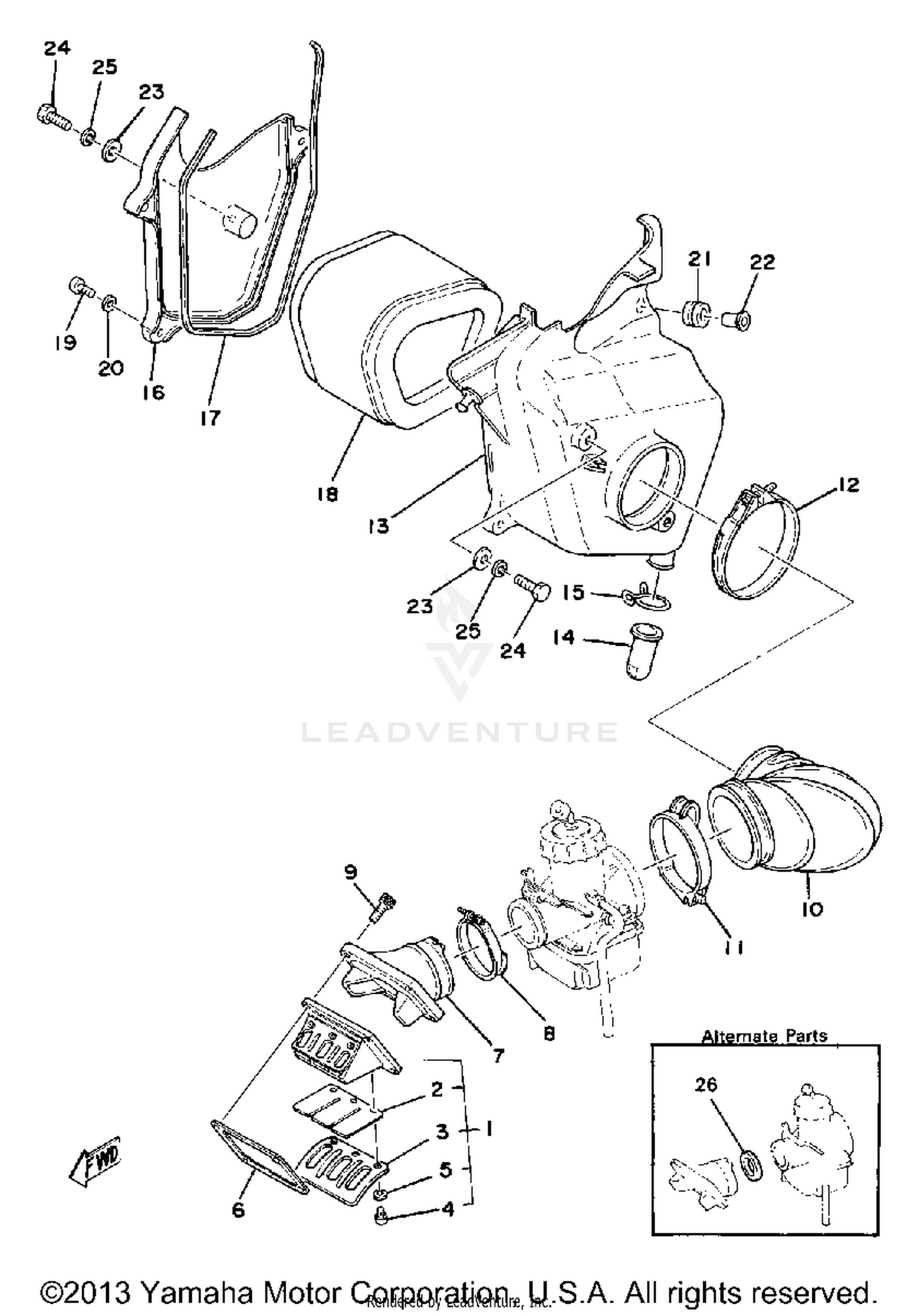

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
2K7-13610-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
2K7-13613-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
2K7-13616-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, VALVE SEAT
80L-13621-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
3R8-13565-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#8
CLAMP, HOSE
90460-51109-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, AIR CLNR 1
2K7-14453-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#11
CLAMP, HOSE
90460-68231-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-85277-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, AIR CLEANER 1
2K7-14411-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#14
SEAL
1W4-14457-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, CLEANER CASE 1
3R7-14412-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#17
SEAL
50M-14462-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ELEMENT ASSEMBLY
2K7-14450-00-00
|
$26.14 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-07391-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
1W6-14477-00-00
|
$2.77 | ||
|
Unavailable |
|||
