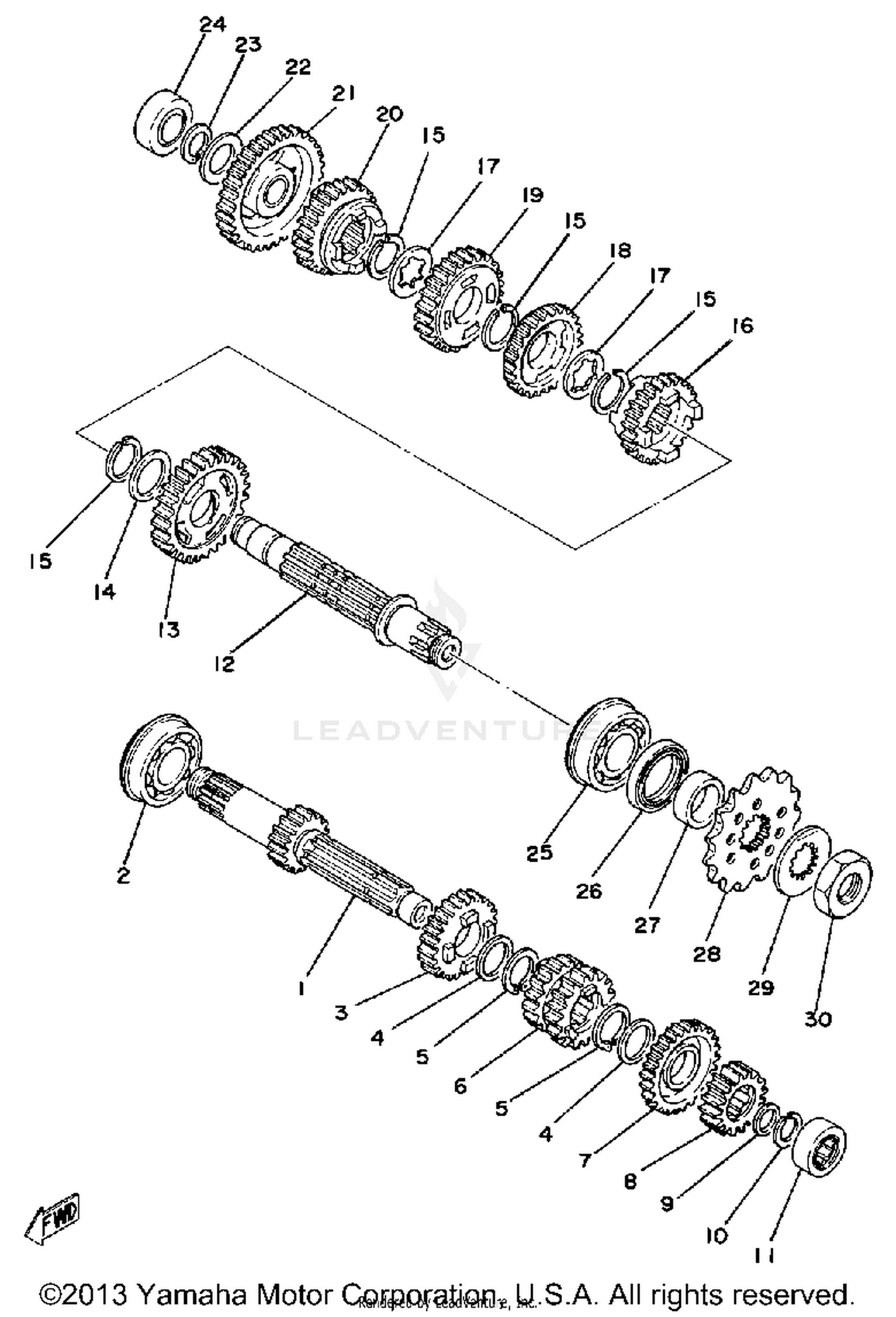

1980 Yamaha IT250 TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
2X7-17411-00-00
|
$65.75 | ||
|
Unavailable |
|||
|
#2
BEARING (93306-20515)
93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 5TH PINION
2X7-17151-00-00
|
$43.80 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-22039-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
2X7-17131-00-00
|
$58.07 | ||
|
Unavailable |
|||
|
#7
GEAR, 6TH PINION
2X7-17161-00-00
|
$57.16 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
2X7-17121-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-17682-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
93440-17064-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDER 11
93311-41734-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AXLE, DRIVE
2K7-17421-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#13
GEAR, 2ND WHEEL
2X7-17221-00-00
|
$48.64 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 6TH WHEEL
2X7-17261-00-00
|
$96.42 | ||
|
Unavailable |
|||
|
#17
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 4TH WHEEL
2X7-17241-00-00
|
$41.64 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD WHEEL
2X7-17231-00-00
|
$68.06 | ||
|
Unavailable |
|||
|
#20
GEAR, 5TH WHEEL
2X7-17251-00-00
|
$51.88 | ||
|
Unavailable |
|||
|
#21
GEAR, 1ST WHEEL
2X7-17211-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, CYLINDRICAL
93311-62035-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93304-20501-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-32M07-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-25663-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE
93834-15078-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET,DRIVE
1W4-17461-60-00
|
|||
|
Unavailable |
|||
|
#29
WASHER, LOCK
90215-21239-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-20255-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
