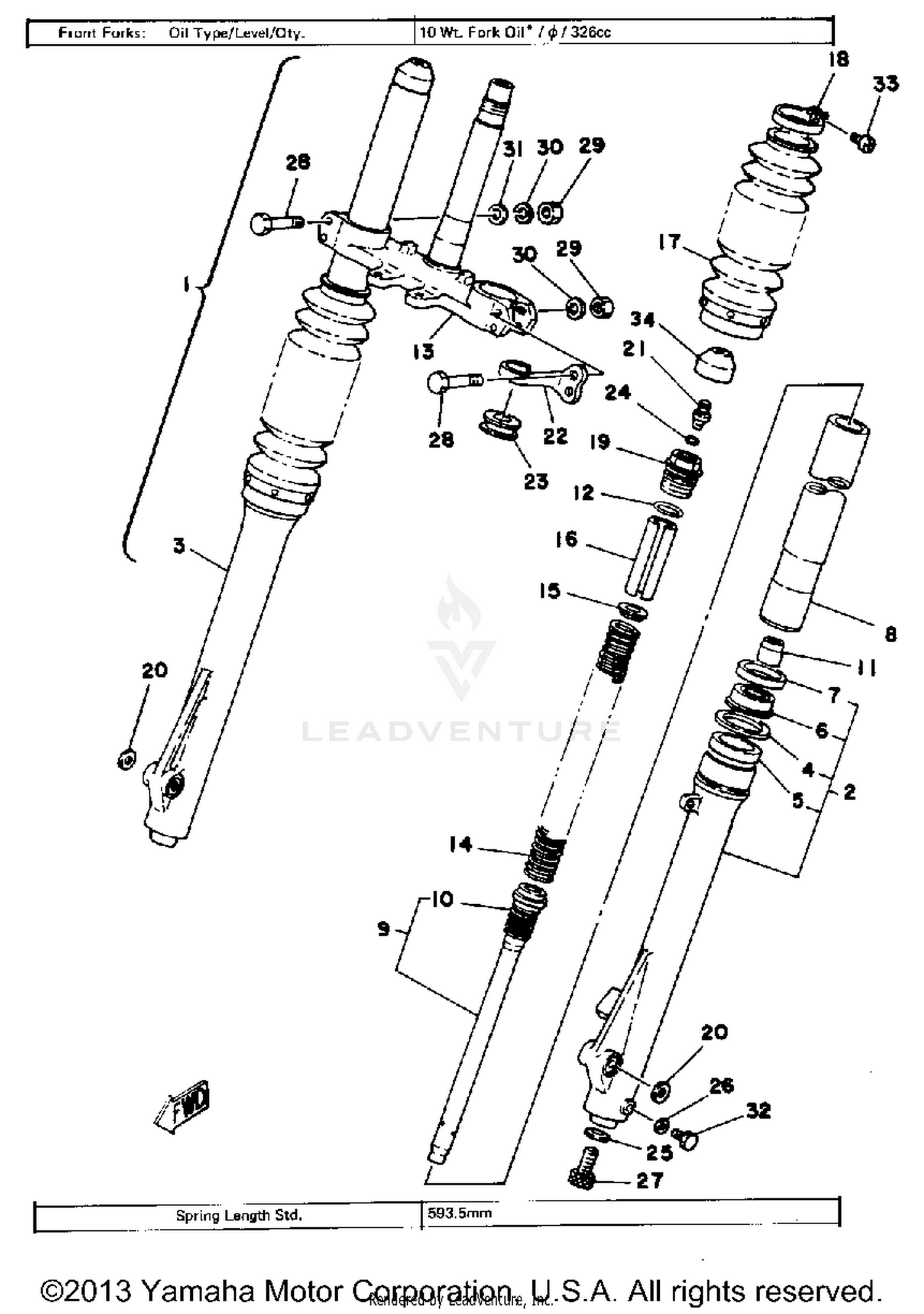

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
3R8-23101-L0-00
|
$313.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
3R8-23126-L0-00
|
$131.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
3R8-23136-L0-00
|
$102.99 | ||
|
Unavailable |
|||
|
#4
CLIP, OIL SEAL
1W1-23156-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
OIL SEAL
48Y-23145-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
509-23144-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#7
COVER, DUST SEAL
3R8-23148-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#8
INNER TUBE 1
3R8-23110-L0-00
|
$128.99 | ||
|
Unavailable |
|||
|
#9
CYLINDER, FRTFRK
3R8-23170-L0-00
|
$47.04 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
1W1-23151-L0-00
|
$5.86 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#12
GASKET
1W1-23114-L0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNDER BRACKET
2X7-23340-00-33
|
$146.99 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
3R8-23141-L1-00
|
$31.56 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
3R8-23141-10-00
|
$19.28 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
3R8-23141-20-00
|
$25.60 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING UPPER
1W1-23142-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#16
SPACER
1W1-23118-L0-00
|
$3.16 | ||
|
Unavailable |
|||
|
#17
BOOT, FRONT FORK
2X3-23191-M0-00
|
$42.16 | ||
|
Unavailable |
|||
|
#18
BAND, BOOT
341-92090-60-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CAP
1W1-23111-L0-00
|
$39.99 | ||
|
Unavailable |
|||
|
#20
CAP, FRONT FORK
1W1-23168-L0-00
|
$3.35 | ||
|
Unavailable |
|||
|
#21
AIR VALVE
509-23190-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#22
HOLDER, CABLE
1W1-23317-01-00
|
$8.72 | ||
|
Unavailable |
|||
|
#23
GUIDE, CABLE
3R4-23389-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#25
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-08340-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, BOOT BAND
509-23194-L0-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, VALVE
1W1-23185-L0-00
|
$7.99 | ||
|
Unavailable |
|||
