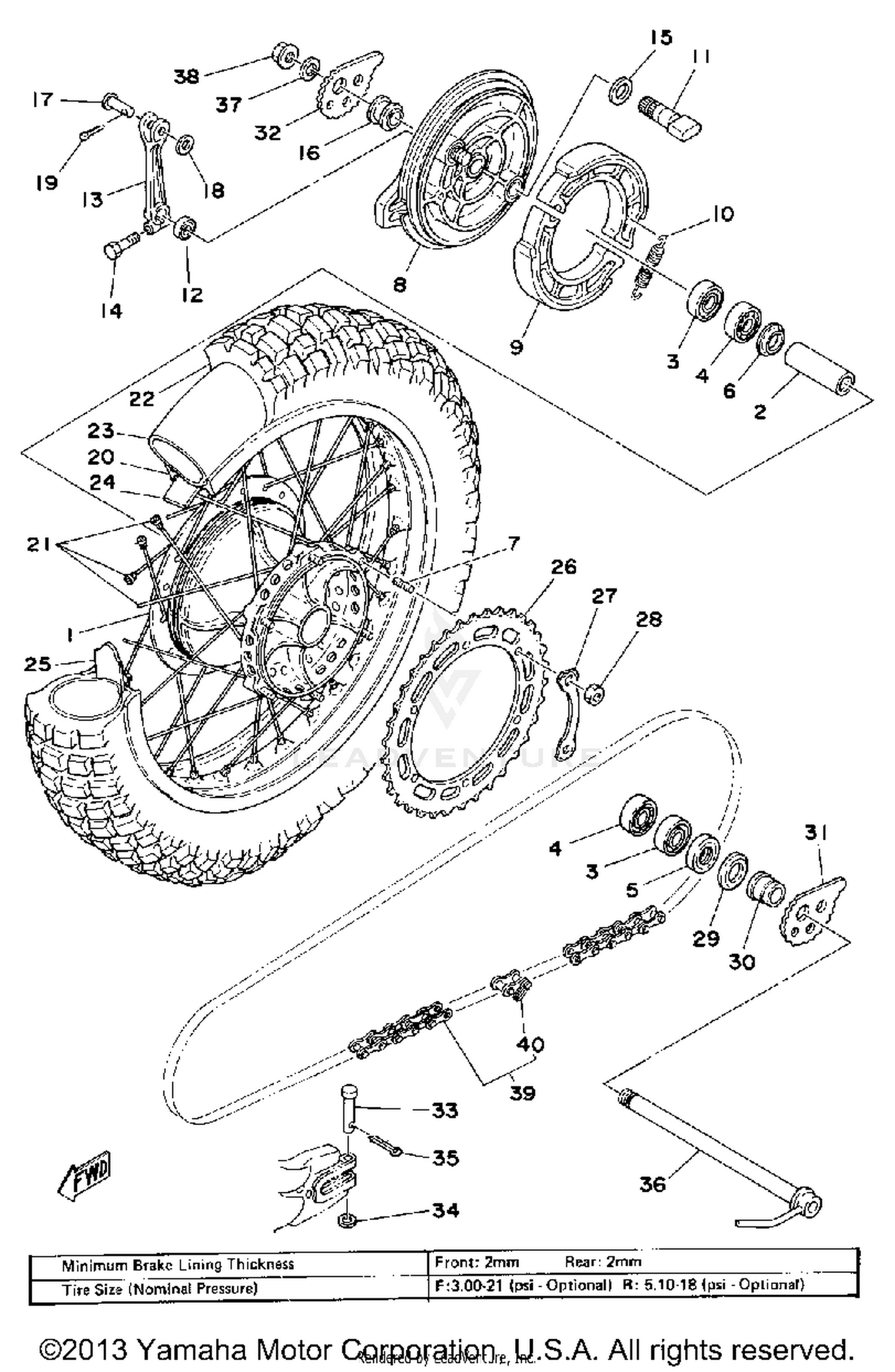

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
483-25311-13-98
|
$179.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
483-25317-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-20310-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20310-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE, SPACER
483-25315-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08218-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BRAKE SHOE
1W6-25321-00-98
|
$66.62 | ||
|
Unavailable |
|||
|
#9
BRAKE SHOE KIT
2X4-W2536-00-00
Superseded by 3BH-W253E-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90507-20002-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
1E6-25151-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#12
SEAL, CAMSHAFT
148-25359-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06291-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, CAMSHAFT
148-25353-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-17618-00
|
$6.48 | ||
|
Unavailable |
|||
|
#17
PIN, CLEVIS
1W2-27237-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12631-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
RIM 2.15X18 (94421-18151) (2.15
94421-18238-00
|
$307.99 | ||
|
Unavailable |
|||
|
#21
SPOKE SET, REAR (431-25304-00)
431-25304-01-00
|
$147.99 | ||
|
Unavailable |
|||
|
#22
UNAVAILABLE IN PRICE BOOK
94151-18562-00
|
|||
|
Unavailable |
|||
|
#23
TUBE
94245-18125-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER, BEAD
1T1-25394-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVEN 44T
38W-25444-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 46T
583-25446-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 48T (48T)
583-25448-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#27
WASHER
583-25412-00-00
Superseded by 2XJ-25412-00-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEXAGON
90170-08193-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-17555-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
PULLER, CHAIN 1
1M1-25388-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#32
PULLER, CHAIN 2
1M1-25389-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#33
PIN
91701-08042-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#36
AXLE, WHEEL
1W6-25381-00-00
|
$49.20 | ||
|
Unavailable |
|||
|
#37
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SPEC''L SHAPE
90179-16007-00
|
$7.77 | ||
|
Unavailable |
|||
|
#39
CHAIN 520DS-103L (DID520DS-102L
9Y585-20101-00
|
$122.67 | ||
|
Available to order. Add to View Price |
|||
|
#40
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
