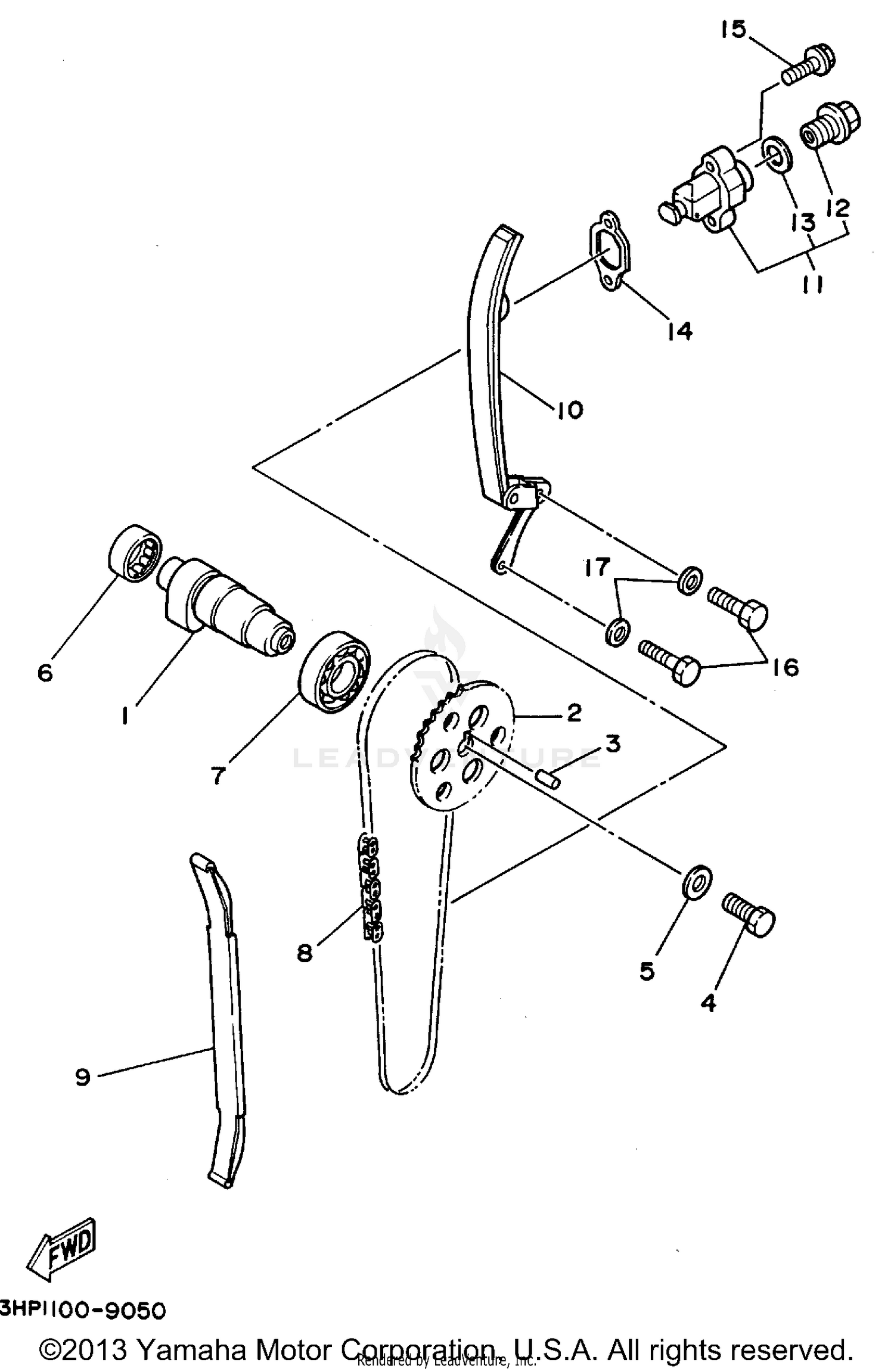

Camshaft - Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1UY-12170-00-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
3HN-12176-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10774-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-32516-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-00515-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN, CAMSHAFT (BF05M 92L)
94500-02092-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 1
2JN-12231-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, STOPPER 2
1UY-12241-00-00
Superseded by 1UY-12241-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#11
TENSIONER ASSY, CAM CHAIN
31G-12210-01-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
31G-12222-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
31G-12214-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, TENSIONER CASE
3GD-12213-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
