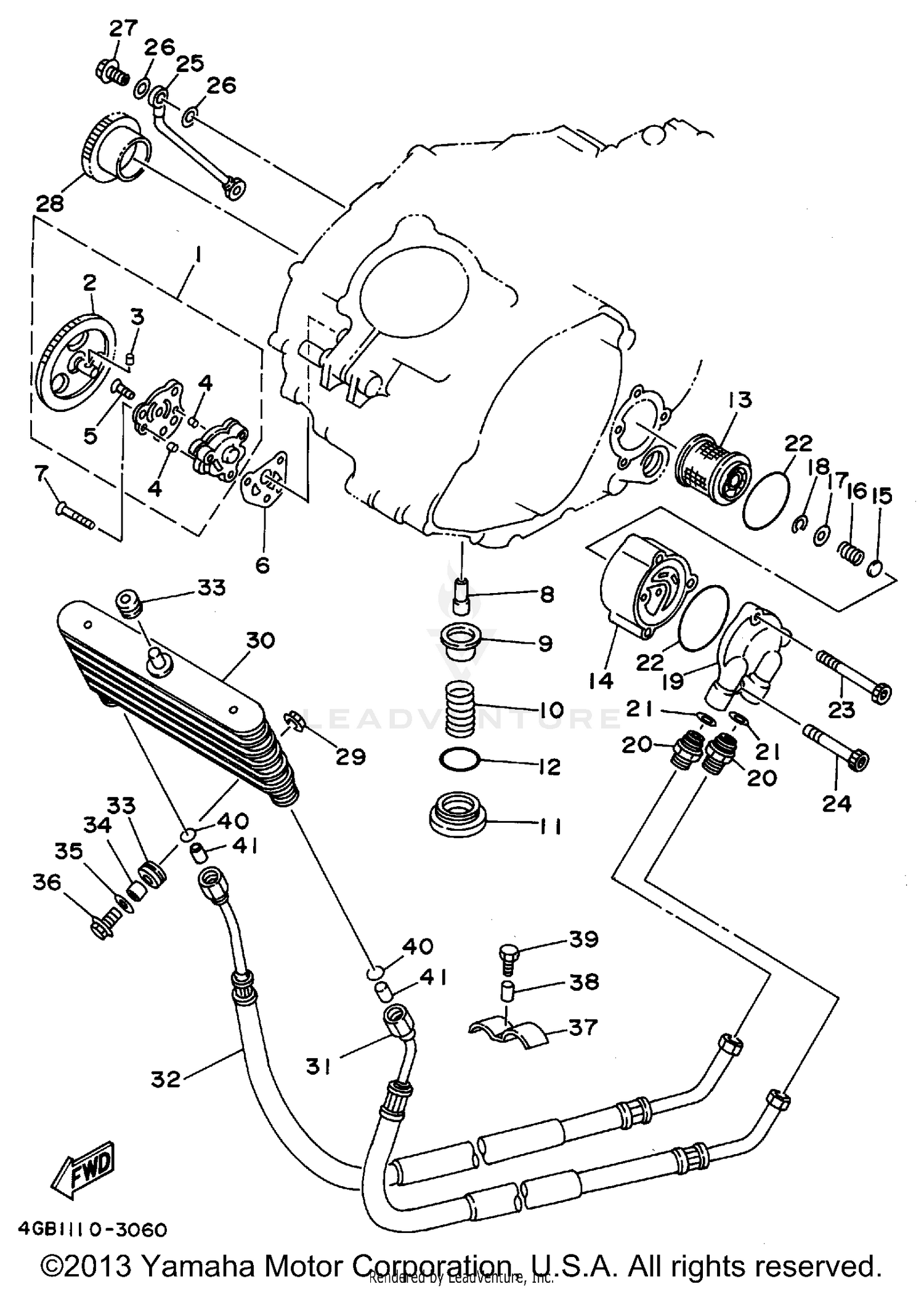

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
1UY-13300-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2
1UY-13326-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-12030-00
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-07073-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, COUNTERSUNK
90151-06010-00
Superseded by 90151-06005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, PUMP COVER
3GD-13329-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98701-06030-00
Superseded by 98707-06030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, OIL 1
2XK-13416-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAINER, OIL
51Y-13411-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-18576-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, DRAIN
30X-15351-00-00
Superseded by 4HC-15351-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-35512-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT ASSY, OIL CLEANER
1UY-13440-02-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, ADAPTOR
1YW-13461-01-00
|
$148.99 | ||
|
Unavailable |
|||
|
#15
PLUG
1YW-13497-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-082E3-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93420-13073-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, OIL ELEMENT
1YW-13447-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT
51Y-13132-50-00
Superseded by 1S3-13132-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-14043-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-54452-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90110-06137-00
Superseded by 91317-06065-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-061E7-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, DELIVERY 1
1UY-13161-00-00
Superseded by 1UY-13161-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-08087-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, UNION
90401-08117-00
Superseded by 90401-08004-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, PUMP DRIVE
4GB-13324-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL COOLER ASSEMBLY
4GB-13470-00-00
|
$494.99 | ||
|
Unavailable |
|||
|
#31
HOSE, OIL 1
3HN-13464-02-00
|
$287.99 | ||
|
Unavailable |
|||
|
#32
HOSE, OIL 2
3HN-13465-02-00
|
$275.99 | ||
|
Unavailable |
|||
|
#33
GROMMET
90480-12475-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90462-10066-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90101-06091-00
|
$3.70 | ||
|
Unavailable |
|||
|
#40
O-RING
93210-12152-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN, DOWEL
91810-08016-00
Superseded by 93612-16254-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
