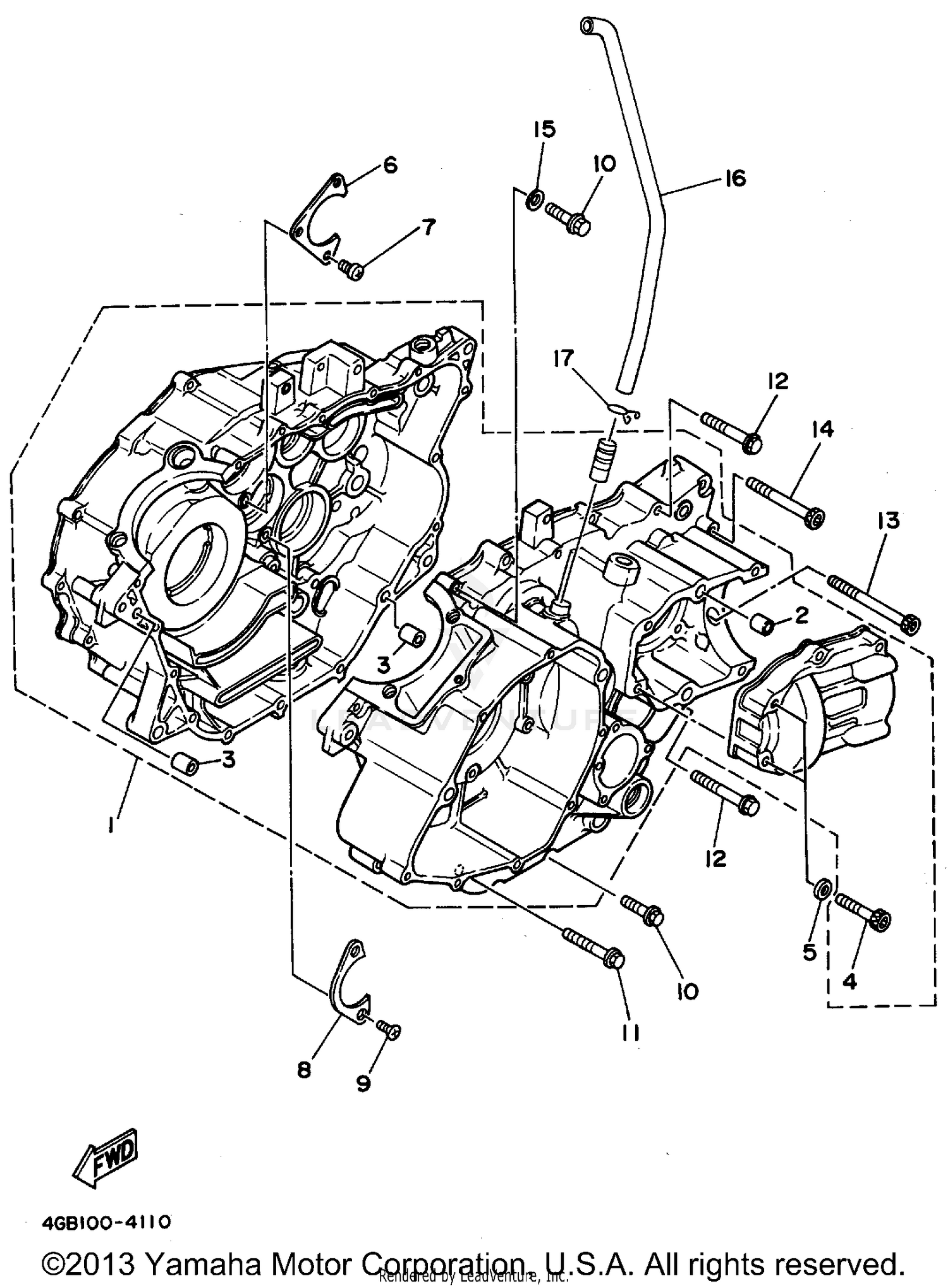

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
1YW-15100-07-00
|
$835.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
91311-06040-00
Superseded by 91314-06040-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BEARING COVER
3R4-15381-00-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PAN
98511-06012-00
Superseded by 98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BEARING COVER
1UY-15383-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
98701-06016-00
Superseded by 98704-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95021-06050-00
Superseded by 95027-06050-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95021-06060-00
Superseded by 95027-06060-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91311-06090-00
Superseded by 91314-06090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-06070-00
Superseded by 91314-06070-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-06014-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
PIPE, BREATHER 1
2HR-11166-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-14015-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
