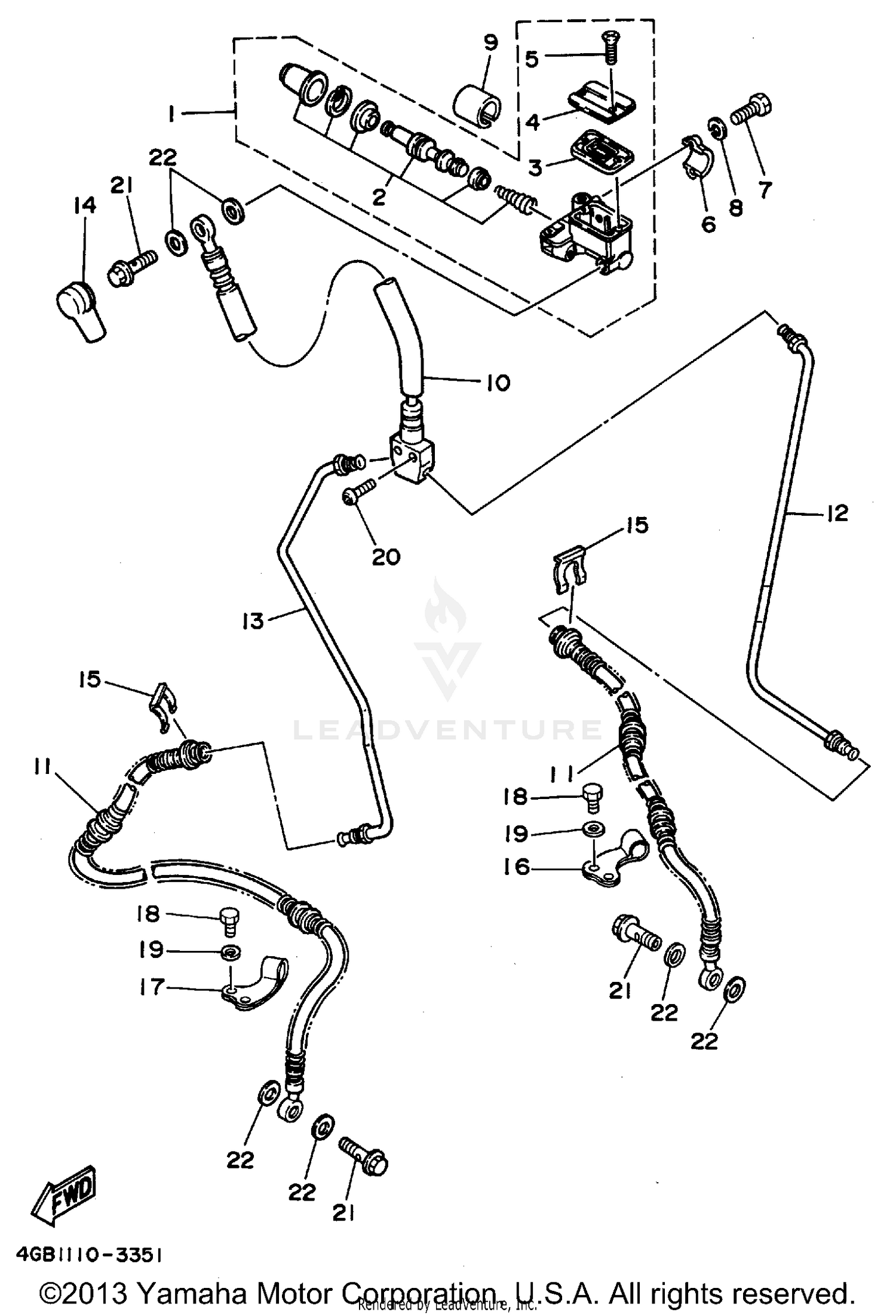

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYL. ASSY
2GU-25850-00-00
Superseded by 2GU-25870-10-00
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-50-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
1UY-26259-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
3HN-25872-11-00
|
$156.99 | ||
|
Unavailable |
|||
|
#
BRAKE HOSE SET (3HN-25872-10-00
99999-02524-00
|
$121.99 | ||
|
Unavailable |
|||
|
#
BOLT, UNION
90401-10159-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,BRAKE 2
3HN-25873-01-00
Superseded by 99999-02526-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, BRAKE
2HR-25871-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#13
PIPE, BRAKE 2
2HR-25882-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#14
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
2GU-25866-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, BRAKE HOSE 1
4GB-25875-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE 2
4GB-25876-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97021-06012-00
Superseded by 97017-06012-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92011-08025-00
Superseded by 92014-08025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
