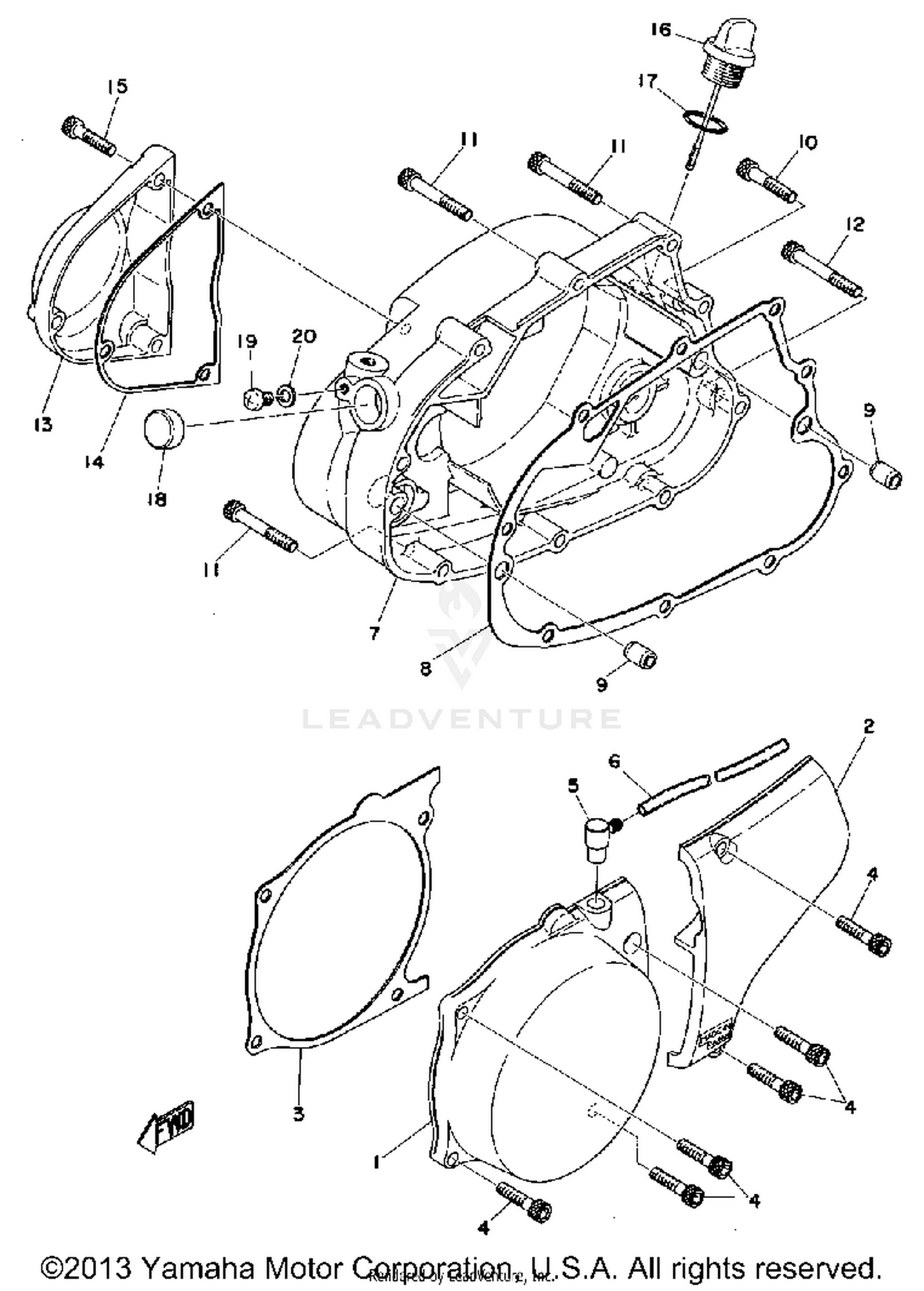

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1X0-15411-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#2
COVER, CRANKCASE R
401-15421-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#3
GASKET 1
401-15455-00-00
Superseded by 401-15455-01-00
|
$15.99 | ||
|
Unavailable |
|||
|
#4
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
90446-07009-00
|
$1.05 | ||
|
Unavailable |
|||
|
#7
COVER, CRANKCASE 3
401-15431-00-00
|
$166.99 | ||
|
Unavailable |
|||
|
#8
GASKET, CRANKCASE COVER 1
401-15451-00-00
Superseded by 3UL-15451-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, OIL PUMP
1X0-15416-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
GASKET, OIL PUMP COVER 1
3UL-15456-00-00
Superseded by 3UL-15456-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
PLUG, OIL LEVEL
401-15362-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG
90338-20023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
