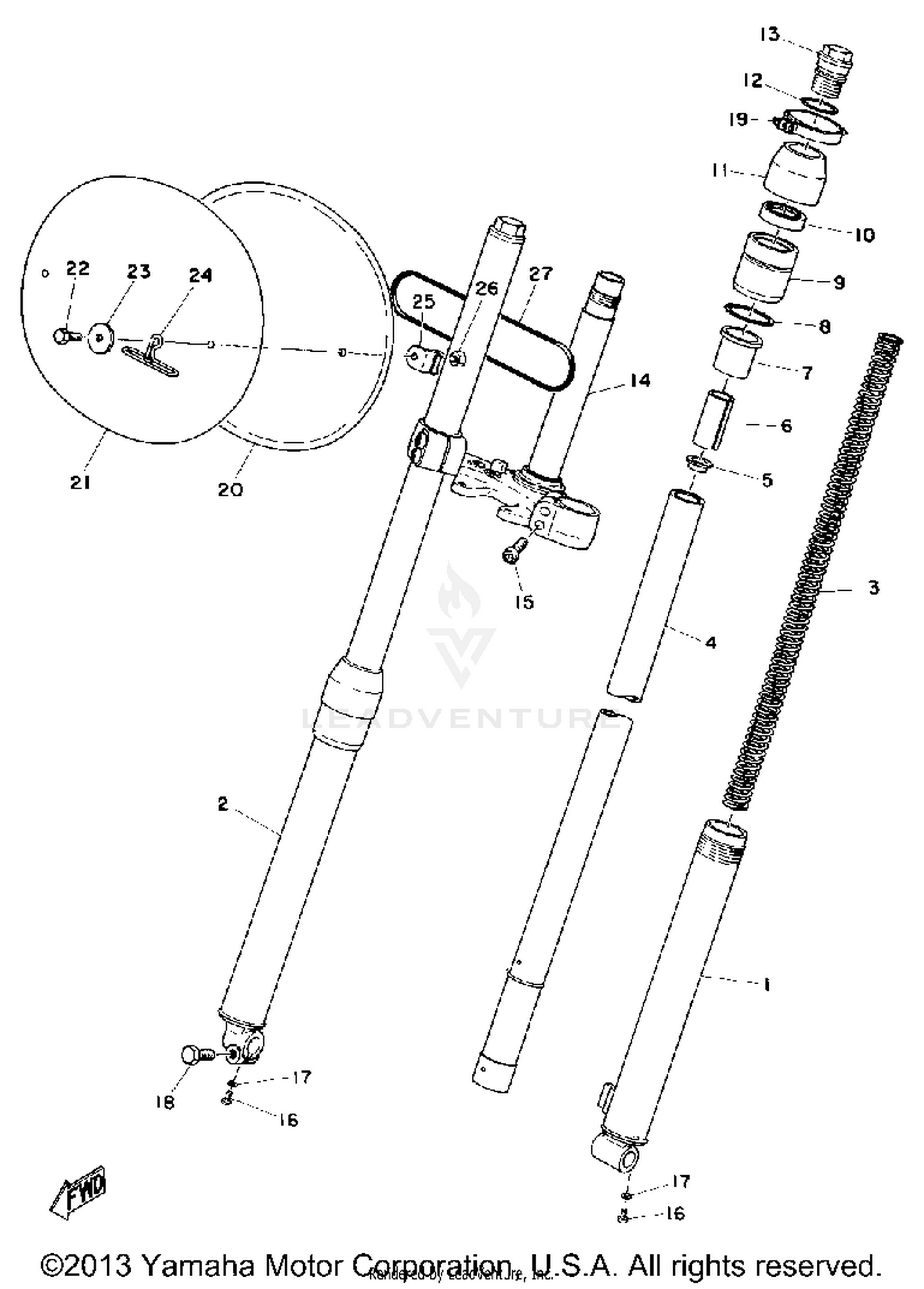

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
427-23101-00-00
|
$273.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
304-23126-50-93
|
$57.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
304-23136-50-93
|
$52.99 | ||
|
Unavailable |
|||
|
#3
SPRING, FRONT FORK
525-23141-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#4
TUBE, INNER 1
304-23124-50-00
|
$64.88 | ||
|
Unavailable |
|||
|
#5
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
SPACER
256-23118-60-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
METAL, SLIDE 1
137-23125-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
O-RING
137-23147-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#9
FRONT FORK ASSEMBLY
193-23100-40-33
|
$190.99 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
248-23144-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
UNDER BRACKET
427-23340-00-33
|
$94.60 | ||
|
Unavailable |
|||
|
#15
BOLT, W/WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT 1 (90119-08011)
J60-23346-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
CLAMP, HOSE
90460-50014-00
|
$3.00 | ||
|
Unavailable |
|||
|
#20
PLATE, NUMBER
322-23485-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#21
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#22
SCREW, OVAL FLSTR (322-23396-00
90146-06007-00
|
$3.15 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, CABLE 2
322-23319-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#25
STAY, PLATE
318-23487-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#26
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-99103-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
