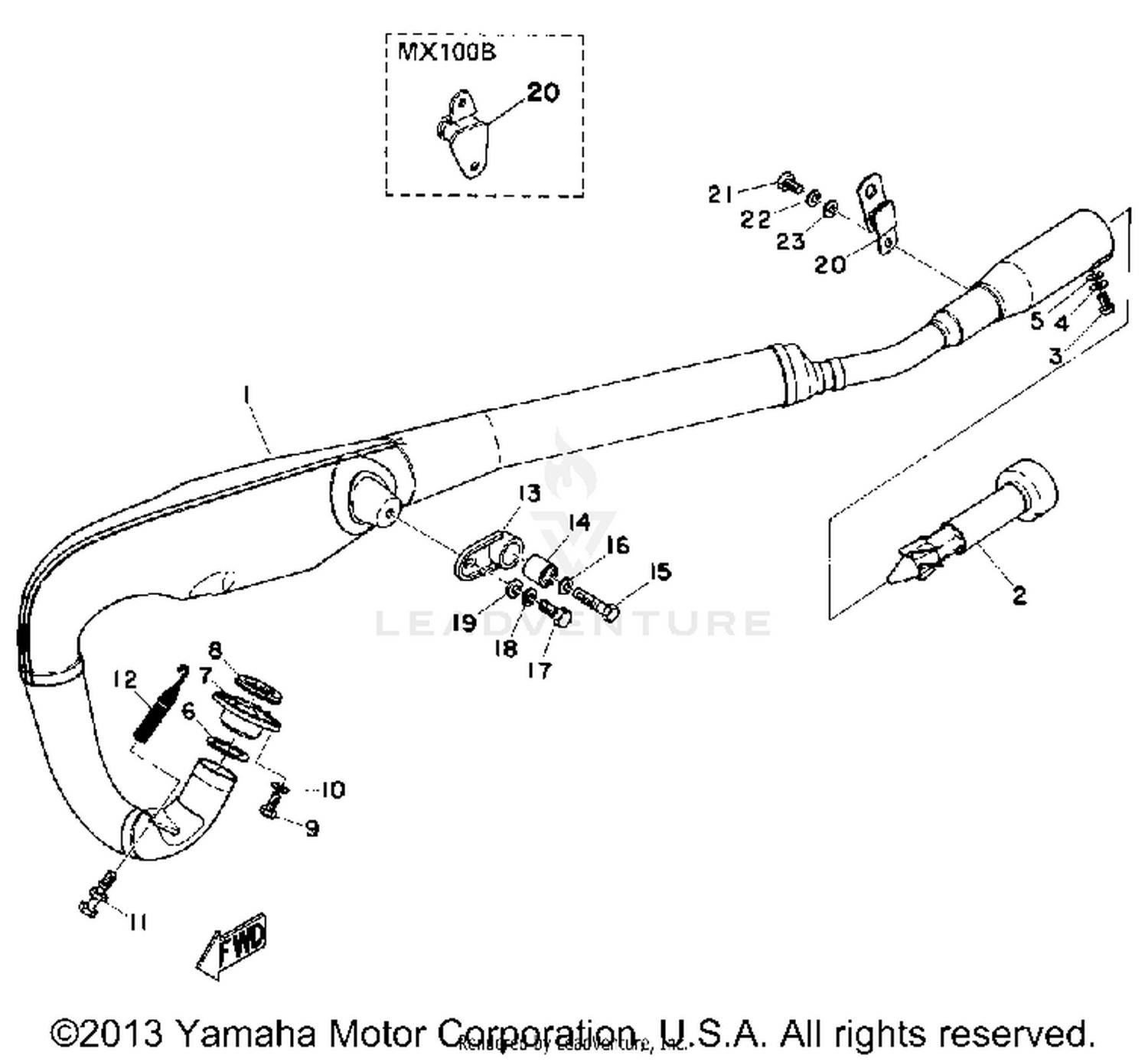

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
427-14610-01-00
|
$225.99 | ||
|
Unavailable |
|||
|
#
STAY 5
363-14782-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#2
PIPE, OUTLET
291-14752-30-00
|
$38.56 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD (92503-06010-
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
248-14623-00-00
Superseded by 248-14623-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, RING
403-14612-00-00
|
$16.74 | ||
|
Unavailable |
|||
|
#8
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
BOLT (322-14684-10)
90109-08305-00
|
$4.85 | ||
|
Unavailable |
|||
|
#12
SPRING, TENSION (145-14683-00)
90507-20012-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
STAY, MUFFLER 1
363-14771-00-00
|
$16.52 | ||
|
Unavailable |
|||
|
#14
BUSH, REAR SHOCK ABSORBER
164-22216-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, MUFFLER 1
308-14771-00-00
|
$15.26 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
