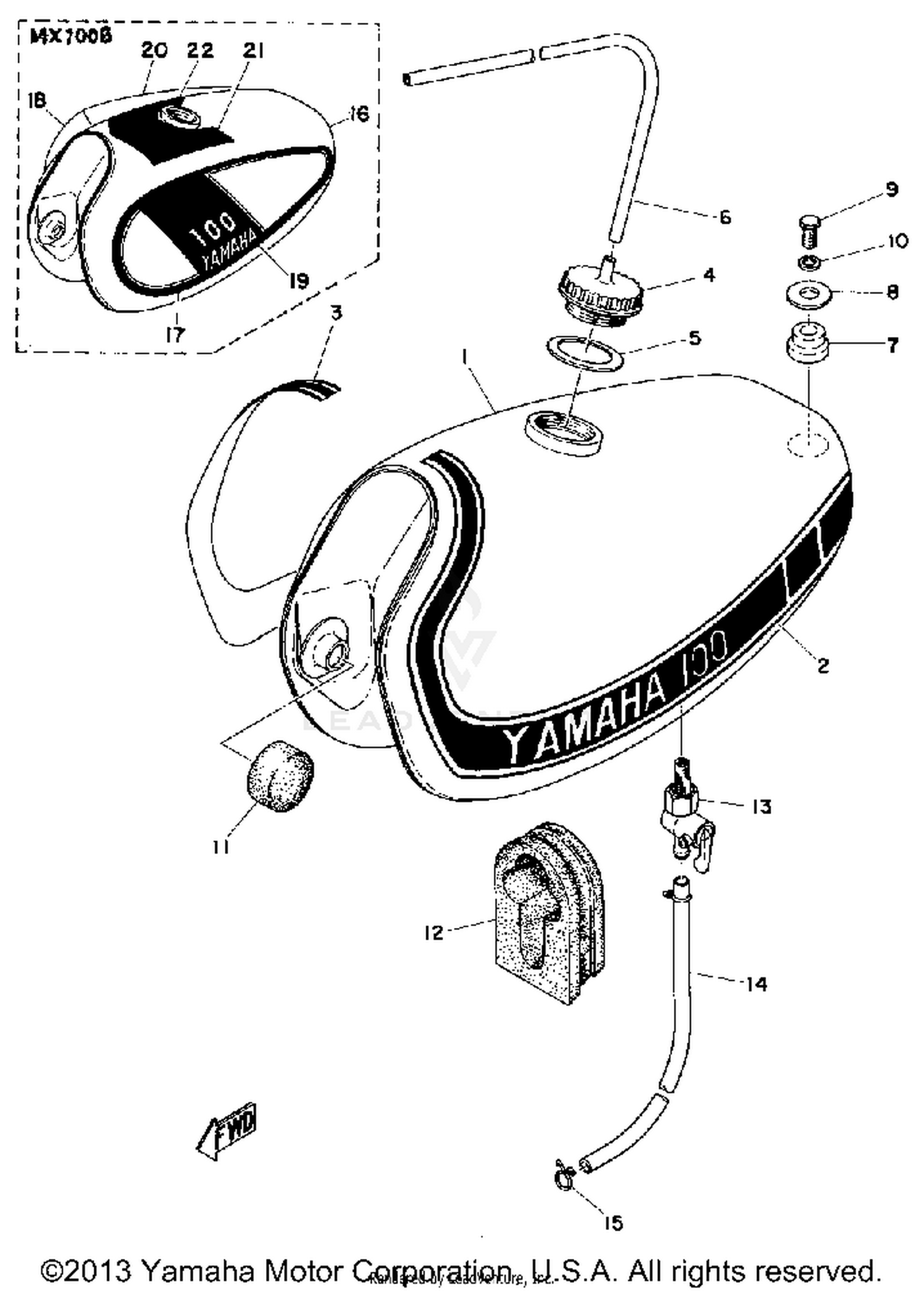

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
401-24110-00-04
|
$128.99 | ||
|
Unavailable |
|||
|
#
GASKET
322-24532-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
427-24244-00-00
|
$26.68 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
427-24245-00-00
|
$26.68 | ||
|
Unavailable |
|||
|
#4
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (322-24612-00)
90430-37052-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-25189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 3
401-24183-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#13
FUEL COCK ASSEMBLY 1 (322-24500
322-24500-02-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
90445-11149-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL TANK
401-24110-00-07
|
$111.99 | ||
|
Unavailable |
|||
|
#17
GRAPHIC, FUEL TNK 1
427-24244-10-00
|
$4.56 | ||
|
Unavailable |
|||
|
#18
GRAPHIC, FUEL TNK 2
427-24245-10-00
|
$8.06 | ||
|
Unavailable |
|||
|
#19
GRAPHIC, FUEL TNK 3
427-24246-11-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
GRAPHIC, FUEL TNK 4
427-24247-11-00
|
$4.60 | ||
|
Unavailable |
|||
|
#21
GRAPHIC, FUEL TNK 5
427-24248-10-00
|
$5.64 | ||
|
Unavailable |
|||
|
#22
GRAPHIC, FUEL TNK 6
427-24249-10-00
|
$5.86 | ||
|
Unavailable |
|||
|
#23
GRAPHIC SET
427-24250-10-00
|
$2.97 | ||
|
Unavailable |
|||
|
#24
STRAINER 1
427-24251-10-00
|
$2.97 | ||
|
Unavailable |
|||
