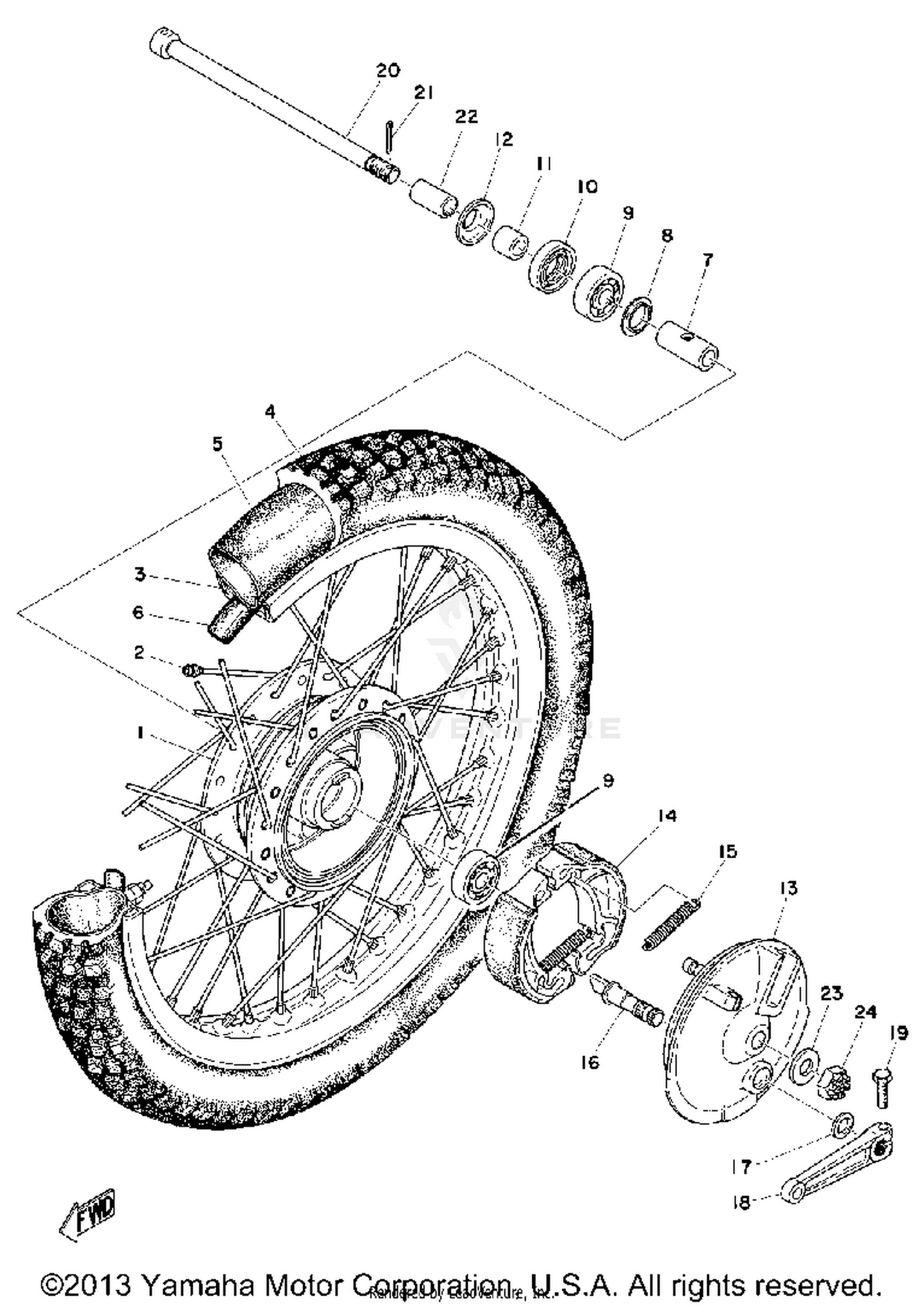

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-38
Superseded by 248-25111-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, FRONT
276-25104-40-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 1
276-25197-80-00
|
$6.04 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
276-25196-80-00
|
$6.04 | ||
|
Unavailable |
|||
|
#3
RIM (1.40-19)
94414-19056-00
Superseded by 94414-19003-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
275X19 YOKO Y620
94127-19321-00
|
$31.99 | ||
|
Unavailable |
|||
|
#5
TUBE (2.75-19)(3GX)
94227-19037-00
Superseded by 94227-19292-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.00-19)
94325-19027-00
Superseded by 94327-19111-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BRAKE SHOE
402-25121-00-00
|
$38.68 | ||
|
Unavailable |
|||
|
#14
BRAKESHOE SET-2PCS (326-25330-1
326-W2536-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAMSHAFT
122-25351-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#18
LEVER, CAMSHAFT 1 (401-25155-00
401-25155-11-00
|
$32.99 | ||
|
Unavailable |
|||
|
#19
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, WHEEL (427-25181-00)
427-25181-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-12099-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
