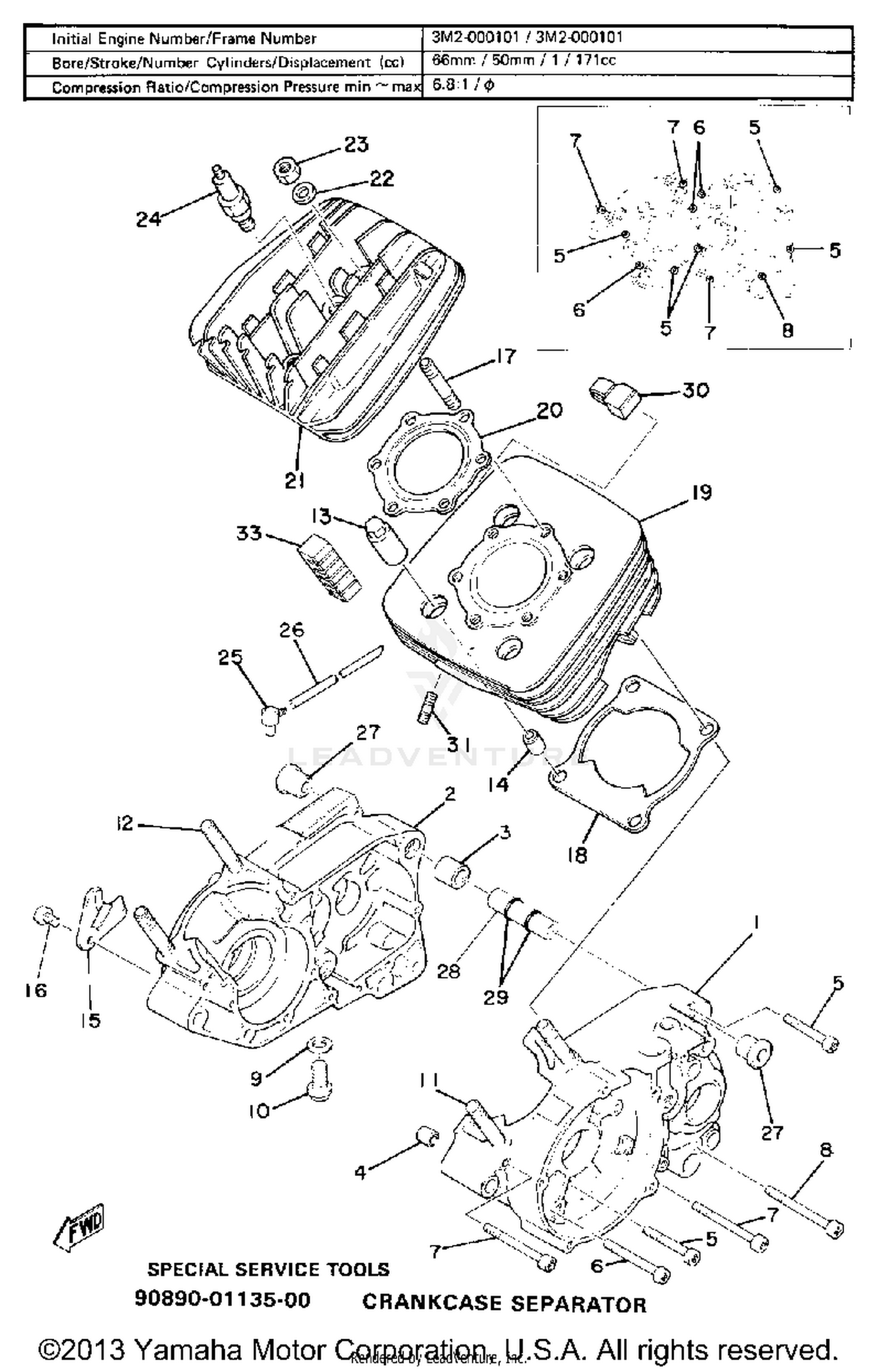

Crankcase-cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
3M2-15111-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
2A6-15121-01-00
|
$188.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98501-06070-00
Superseded by 98580-06570-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98501-06075-00
Superseded by 98580-06575-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
95611-10630-00
Superseded by 95617-10630-00
|
$5.99 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
95611-10640-00
Superseded by 95617-10640-00
|
$2.75 | ||
|
Unavailable |
|||
|
#13
NUT
90179-10201-00
Superseded by 90179-10021-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
90116-08104-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,CYLINDER
18G-11351-01-00
Superseded by 18G-11351-02-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER 1
2A7-11311-00-00
|
$443.99 | ||
|
Unavailable |
|||
|
#20
GASKET, CYLINDER HEAD 1
1W2-11181-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEAD, CYLINDER 1
2A7-11111-00-00
|
$167.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#25
BREATHER
2N4-15371-00-00
Superseded by 5UG-15371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (L310)
90445-07340-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
ABSORBER 5
2A6-11129-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
BOLT, STUD
90116-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
