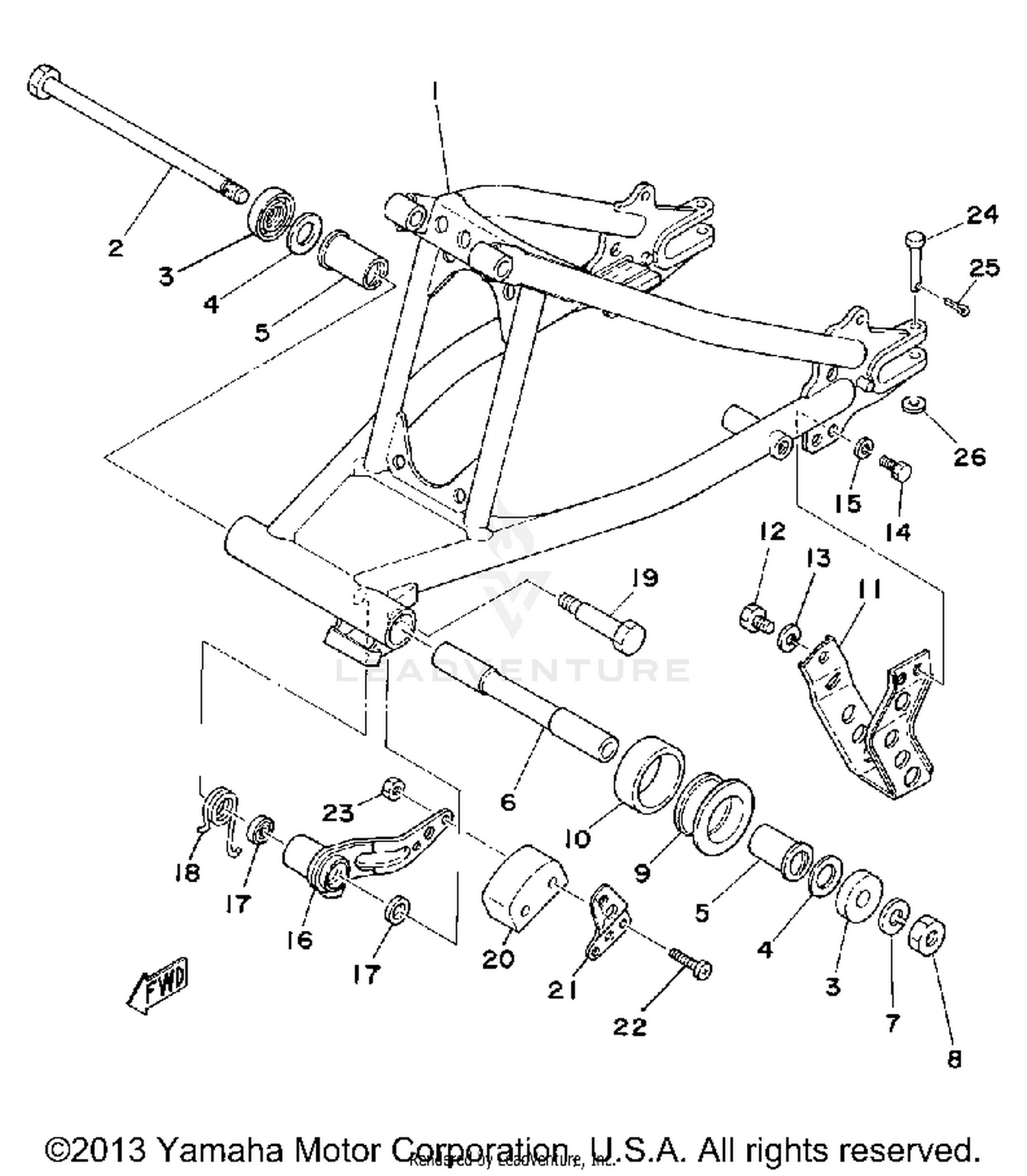

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3M2-22110-00-33
|
$134.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, PIVOT
2N4-22141-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
90386-18028-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH 2
18G-22124-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
2A6-22151-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
2A6-22152-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, CHAIN
2A6-22318-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM, TENSIONER
2A6-22179-00-00
Superseded by 2A6-22179-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TORSION
90508-35350-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (90109-10533-00)
90109-10483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#21
GUIDE, CHAIN
1W1-22187-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
