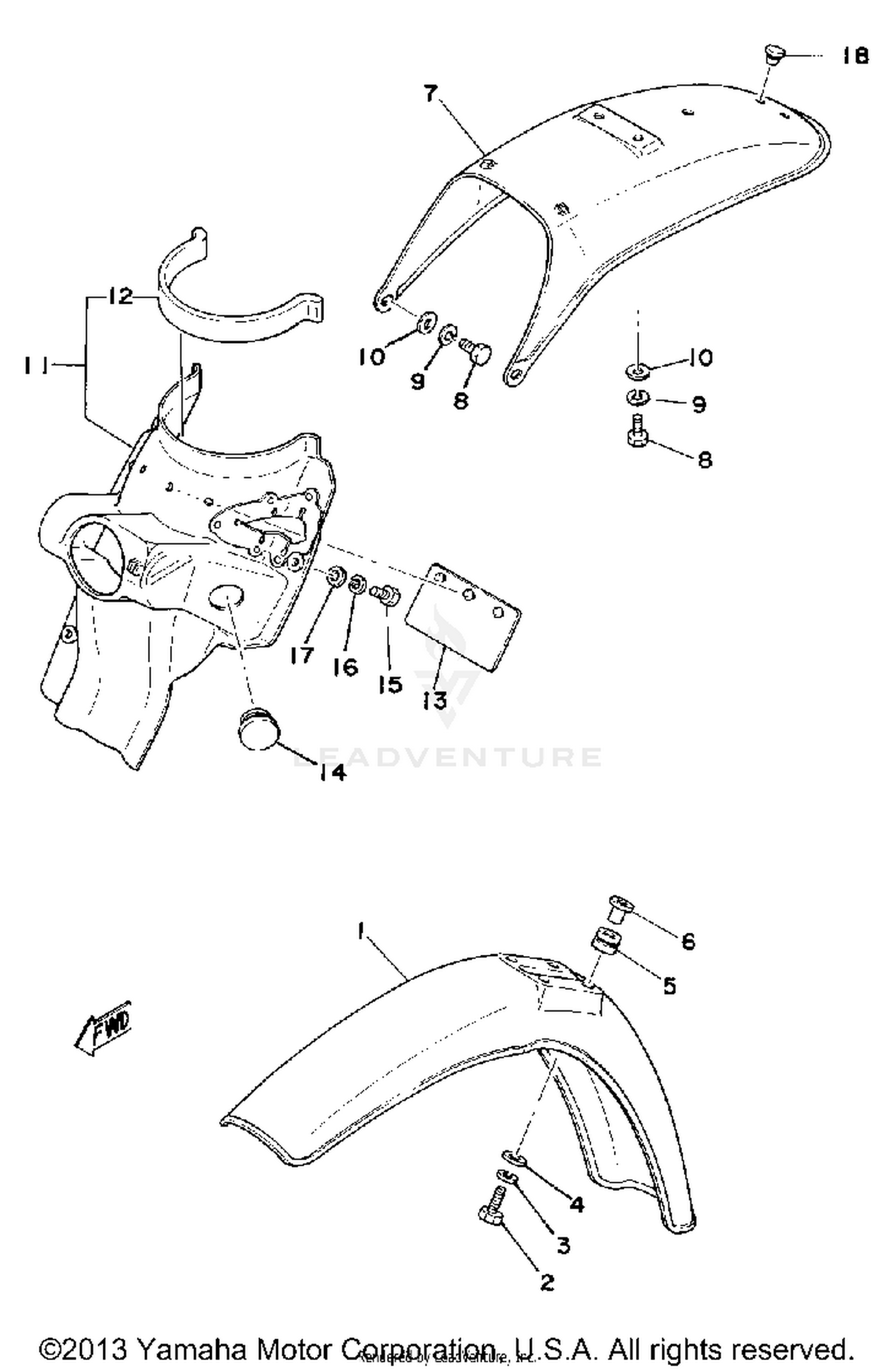

Front Fender-rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3M2-21511-00-00
|
$63.14 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14198-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
2A8-21611-80-00
|
$53.99 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, MUD
99999-01151-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
DAMPER 2
2A6-21639-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP
1M1-21621-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-01254-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.58 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-12012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
