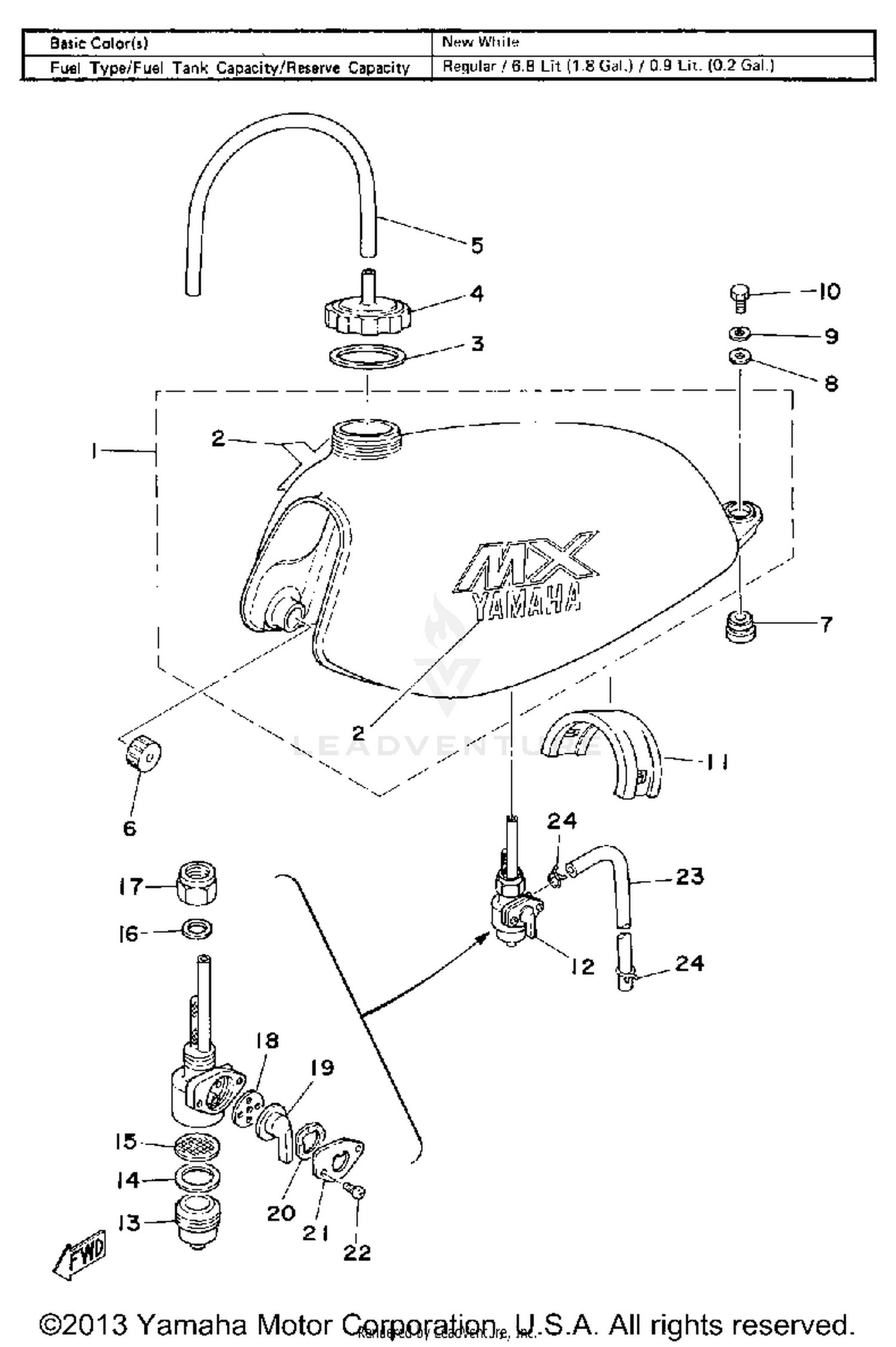

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2N4-24110-00-X1
|
$247.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
3M1-24244-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#3
GASKET, CAP
1W1-24612-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, CAP
2A6-24611-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#5
HOSE (L460)
90445-09115-00
Superseded by 90445-083J5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-22231-00
|
$6.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 2
2A6-24182-00-00
Superseded by 5L9-F4182-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#12
FUEL COCK ASSY 1
304-24500-12-00
Superseded by 357-24500-20-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUP, FILTER
1A0-24521-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#14
GASKET
132-24522-00-00
Superseded by 498-24522-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NET, FILTER 2
304-24515-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
GASKET
434-24532-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
132-24531-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
GASKET
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, COCK
447-24524-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, LEVER FITTING
447-24525-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 5
90445-09089-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
