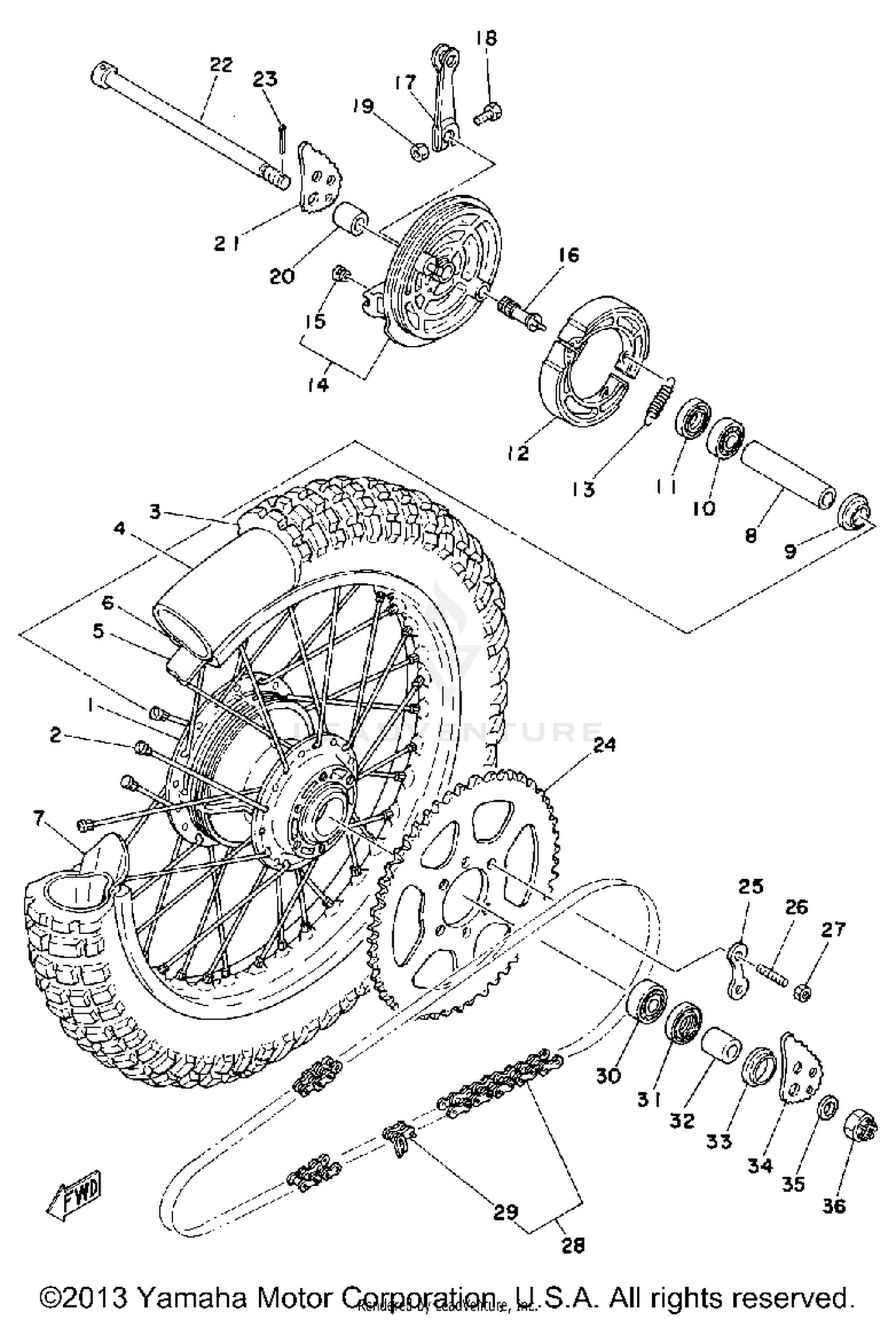

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1W1-25311-00-98
|
$206.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
401-25304-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CS 350X18 C-755-1
94135-18551-00
|
$46.99 | ||
|
Unavailable |
|||
|
#4
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM (1.85-18)
94418-18171-00
Superseded by 94418-18007-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE PLATE ASSEMBLY (2A6-
99999-02024-00
|
$106.99 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, CAMSHAFT 1
1E2-25155-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
PULLER, CHAIN 2
1W2-25389-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, WHEEL (2A6-25381-00-00)
5X3-25381-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVEN 49T
18L-25449-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GEAR, SPROCKET WHEEL
1X0-25445-10-33
Superseded by 1X0-25445-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPOCKET, DRVN 47T
2N0-25447-10-00
|
$36.95 | ||
|
Unavailable |
|||
|
#25
WASHER
1G8-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN
94580-33118-00
Superseded by 9Y582-51117-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, CHAIN
94680-15001-00
Superseded by 94682-51001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PULLER, CHAIN 1
1W2-25388-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
