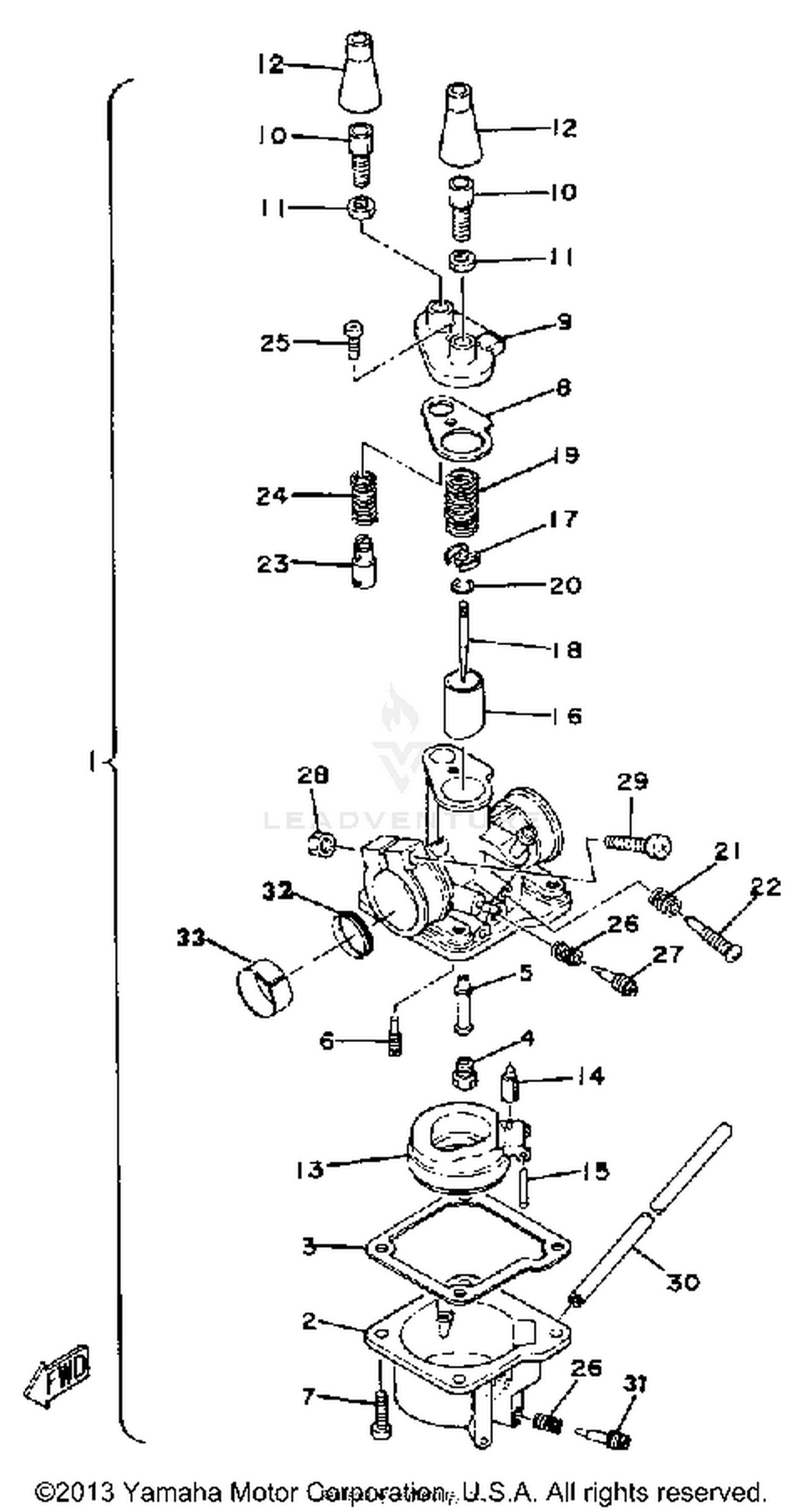

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3L5-14101-01-00
|
$155.99 | ||
|
Unavailable |
|||
|
#2
BODY, FLOAT CHMBR 1
3L5-14181-07-00
|
$19.28 | ||
|
Unavailable |
|||
|
#3
GASKET, FLOAT CHAMBER
3L5-14184-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#70)
620-14231-14-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN ( 65)
620-14231-13-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN ( 75)
620-14231-15-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #80 (#80)
620-14231-16-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE, MAIN
3L7-14141-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#6
JET, PILOT (#40)
3L5-14142-40-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
3L5-14198-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
TOP, MIXING CHAMBER
3L5-14158-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#10
CBLE ADJUST SCREW SET
12G-14106-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
307-14169-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLOAT
3L6-14185-01-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE VALVE ASSY
3L5-14190-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, FLOAT
603-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, THROTTLE 1
3L5-14112-40-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
3L5-14137-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#18
NEEDLE SET
34M-1490J-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
SPRING, THROTTLE VALVE
174-14131-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
127-14137-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, THRTL STOP
3L6-14133-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
THROTTLE SCREW SET
36R-14103-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUNGER, STARTER
58E-14171-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COIL, SPRING
127-14135-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, AIR ADJUSTING
3F7-14134-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, AIR ADJUSTING
3L5-14123-01-00
|
$7.52 | ||
|
Unavailable |
|||
|
#28
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE (L200)
90445-05024-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
AIR SCREW SET
17L-14104-00-00
Superseded by 36R-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL
1M3-14997-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
INSULATOR
1V3-14271-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
