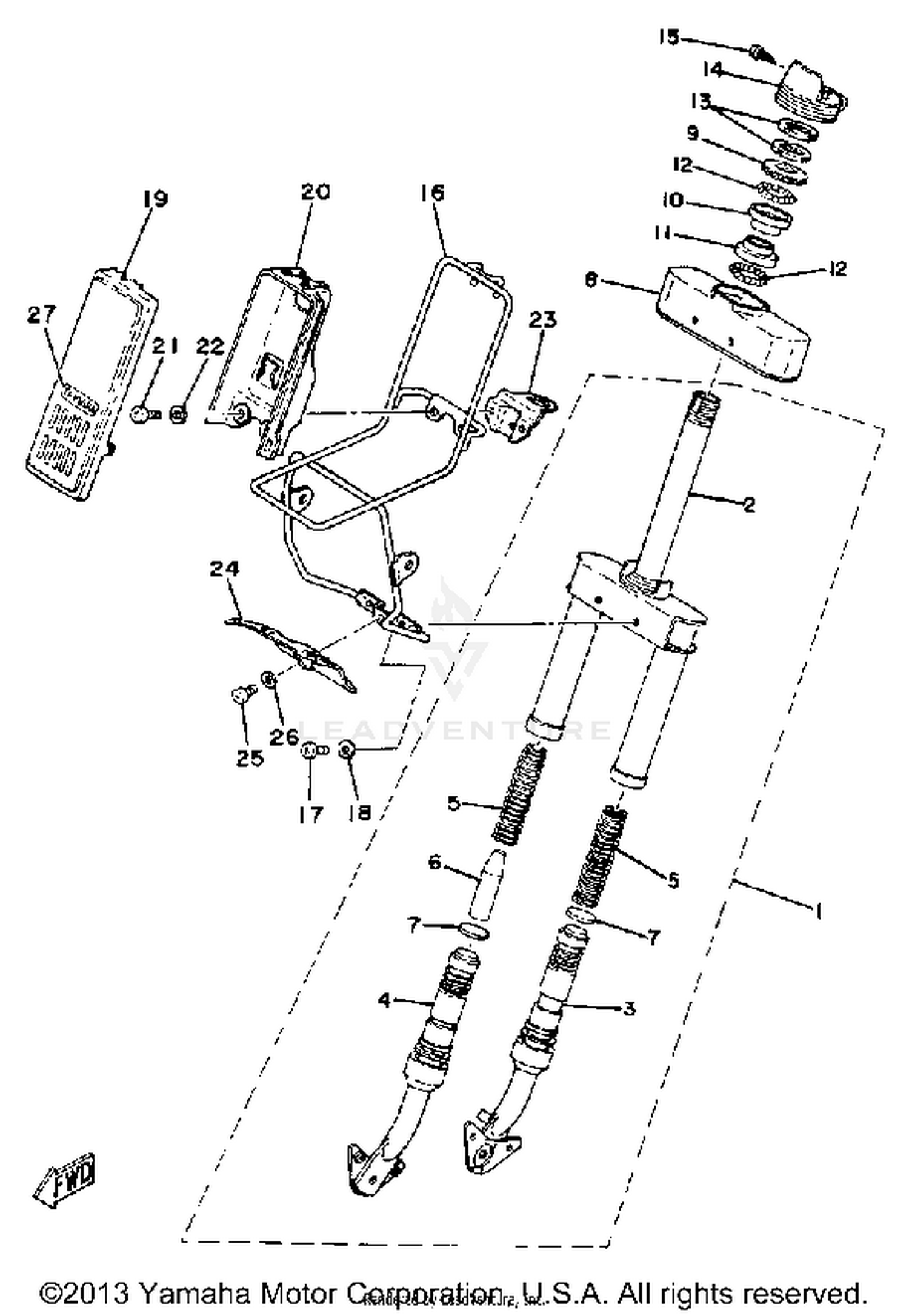

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASY
4K6-23100-02-4G
Superseded by 4K6-23100-03-4G
|
$191.99 | ||
|
Unavailable |
|||
|
#
FRONT FORK ASSEMBLY
4K6-23100-02-66
|
$184.99 | ||
|
Unavailable |
|||
|
#2
UNDER BRACKET
4K6-23340-01-4G
Superseded by 4K6-23340-02-4G
|
$104.99 | ||
|
Unavailable |
|||
|
#
UNDER BRACKET-COMP
4K6-23340-01-66
|
$104.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE 1
3L5-23110-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#4
INNER TUBE 2
3L5-23120-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#5
SPRING, FRONT FORK
3L5-23141-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#6
RUBBER
3L5-23195-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING LOWER
2E9-23143-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, OUTER 1
3L5-23311-30-00
|
$19.49 | ||
|
Unavailable |
|||
|
#
PANEL, OUTER 1
3L8-23311-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#9
RACE, BALL 1
3KJ-23411-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE, BALL 2
2E9-23412-00-00
Superseded by 2SA-23412-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RACE, BALL 3
2E9-23413-01-00
Superseded by 2SA-23413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FITTING 2
2E9-23454-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, BALL RACE 1
3L5-23415-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
|
$0.60 | ||
|
Unavailable |
|||
|
#16
CARRIER, FRONT
3L8-24841-00-00
|
$74.58 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
PANEL, FRONT
3L8-23391-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
PANEL, FRONT 2
3L8-23397-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#23
BRACKET, CARRIER 1
3L5-24832-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#24
PLATE 1
3L8-21543-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#
PLATE 1
3L5-21543-30-00
|
$5.86 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
EMBLEM, YAMAHA
3L8-23395-00-00
Superseded by 99241-00080-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
